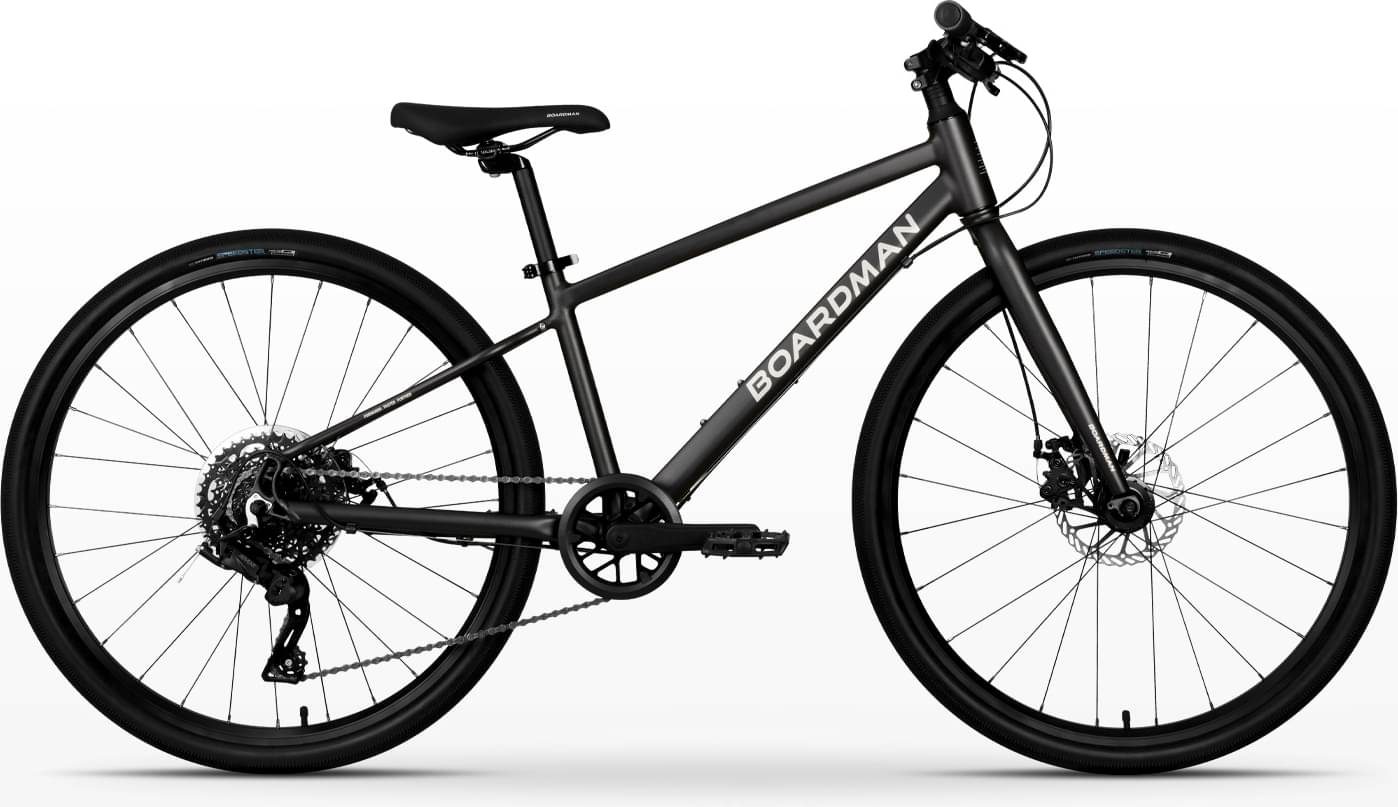

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Triple butted, smooth weld aluminium
Suspension Fork
1-1/8th Triple Butted, smooth weld aluminium lowers with Chromo Steerer
Drivetrain
Rear Derailleur
Microshift M6195M 9 Speed
Shift Levers
Microshift SL-M8195 Advent 9 Speed
Cassette
Microshift CS-H093 9 Speed 11-42 Tooth
Crank
Prowheel 32 Tooth - 150mm crank and double chainguard
Bottom Bracket
FSA. - BB-7420ST
Chain
KMC Z9
Pedals
Wellgo 9/16"
Wheels
Front Hub
Formula Alloy QR
Rear Hub
Formula Alloy QR
Rims
Double Wall Alloy
Tires
Vee Rubber, Speedster 26 x 1.5"
Brakes
Brakes
Front: Clarks CMD-23 Mechanical Disc Brake - 160mm Rotor, Rear: Clarks CMD-23 Mechanical Disc Brake - 160mm Rotor
Brake Levers
TEKTRO RS360
Cockpit
Stem
Boardman JNR Alloy 50mm - 10 degree rise
Handlebar
Boardman JNR Alloy - 25.4mm - 580mm wide
Headset
Semi-Integrated FSA No.10P Aheadset
Seat
Saddle
Boardman JNR
Seatpost
Boardman JNR Alloy 25.4mm x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12" | 16" | 20" | 24" | 26" | 26" |
|---|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
