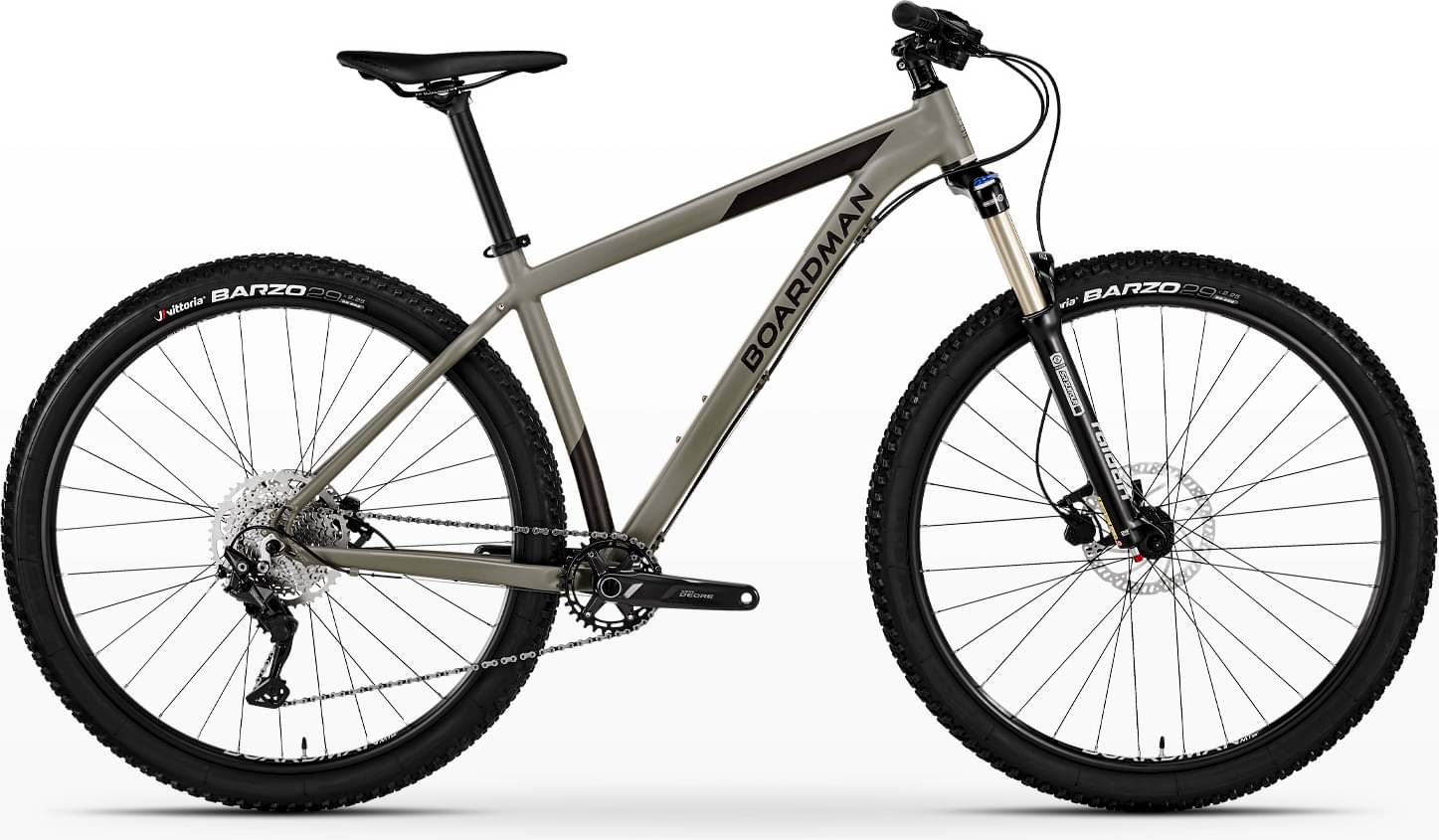

Boardman MHT 8.6 Grey/Green 2025
2025 Mountain
Estimate price |
860$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 X7 Aluminium with hidden welds
Suspension Fork
Suntour Raidon XC LO-R, 120mm travel, air adjust
Drivetrain
Rear Derailleur
Shimano Deore 10 speed
Front Derailleur
N/A
Shift Levers
Shimano Deore 10 speed
Cassette
Shimano Deore, 11-46
Crank
Shimano Deore 32T or Prowheel
Bottom Bracket
Shimano Threaded BB or Prowheel
Chain
KMC X10
Pedals
Flat pedals supplied
Wheels
Front Hub
Formula 100mm QR front, 141mm Boost QR Rear
Rear Hub
Formula 100mm QR front, 141mm Boost QR Rear
Rims
Boardman 29" with 25mm internal width rim
Tires
Vittoria Barzo, 29x2.25”, wire bead
Brakes
Brakes
Front: Tektro M285, 6 bolt 180 mm rotor front, 160mm rotor rear
Cockpit
Stem
Boardman Alloy, no rise, 31.8mm clamp
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman MHT
Seatpost
Boardman Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.536 mm | 1.471 mm | 1.449 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 625 mm | 625 mm | 639 mm |
| Reach | 407 mm | 425 mm | 441 mm |
| Top Tube Length | 586 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 177 cm | 181 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm |
