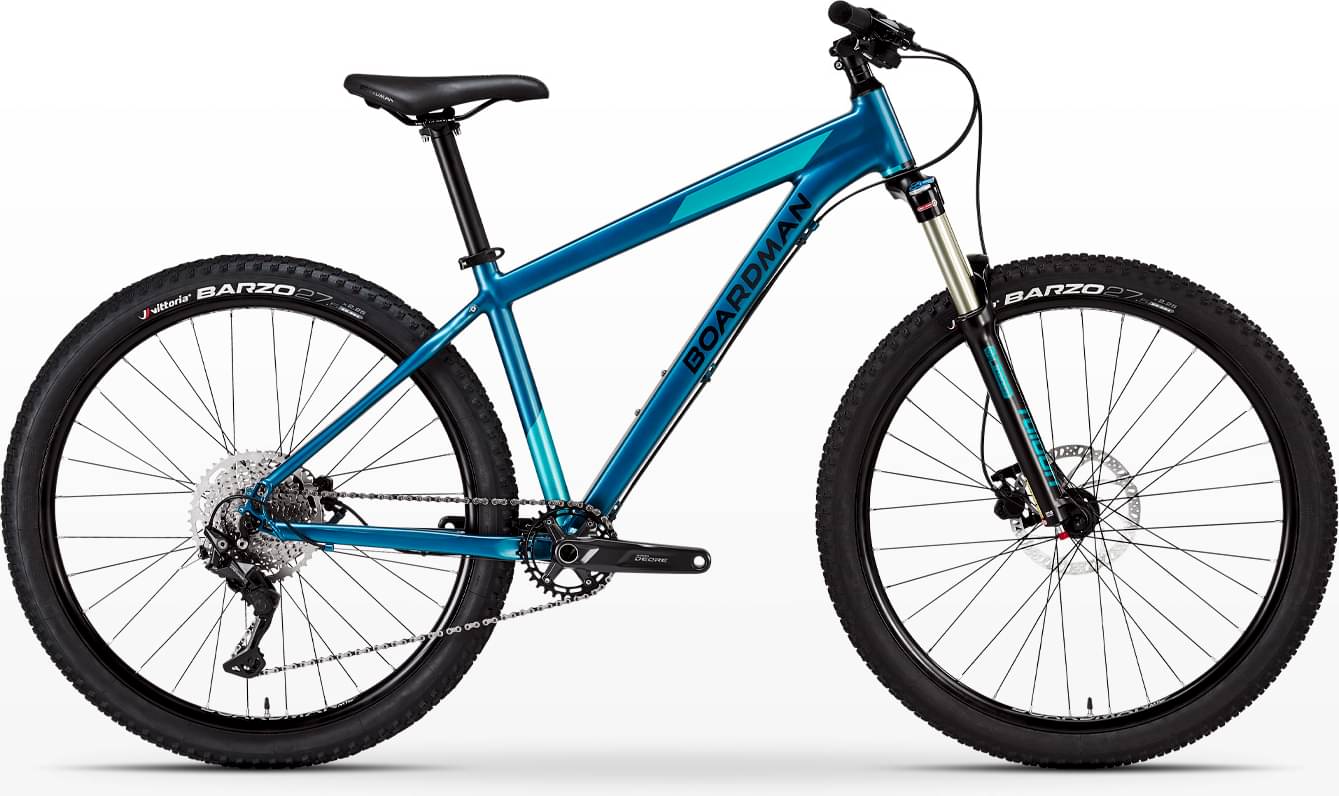

Boardman MHT 8.6 Women’s 2025
2025 Mountain
Estimate price |
860$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 179cm
LG
177cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 X7 Aluminium with hidden welds
Suspension Fork
Suntour Raidon XC LO-R, 120mm travel, air adjust
Drivetrain
Rear Derailleur
Shimano Deore 10 speed
Front Derailleur
N/A
Shift Levers
Shimano Deore 10 speed
Cassette
Shimano Deore, 11-46
Crank
Shimano Deore 32T or Prowheel
Bottom Bracket
Shimano Threaded BB or Prowheel
Chain
KMC X10
Pedals
flat pedals supplied
Wheels
Front Hub
Formula 100mm QR front, 141mm Boost QR Rear
Rear Hub
Formula 100mm QR front, 141mm Boost QR Rear
Rims
Boardman 27.5" with 25mm internal width rim
Tires
Vittoria Barzo, 27.5x2.25”, wire bead
Brakes
Brakes
Front: Tektro M285, 6 bolt 180 mm rotor front, 160mm rotor rear
Cockpit
Stem
Boardman Alloy, no rise, 31.8mm clamp
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman MHT Womens
Seatpost
Boardman Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.468 mm | 1.434 mm |
| Bottom Bracket Height | 303 mm | 306 mm | 306 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 599 mm | 605 mm | 615 mm |
| Reach | 399 mm | 412 mm | 429 mm |
| Top Tube Length | 565 mm | 580 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 356 mm | 410 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 52 mm | 49 mm | 49 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 170 cm | 177 cm |
| Rider Max Height | 172 cm | 179 cm | 183 cm |
