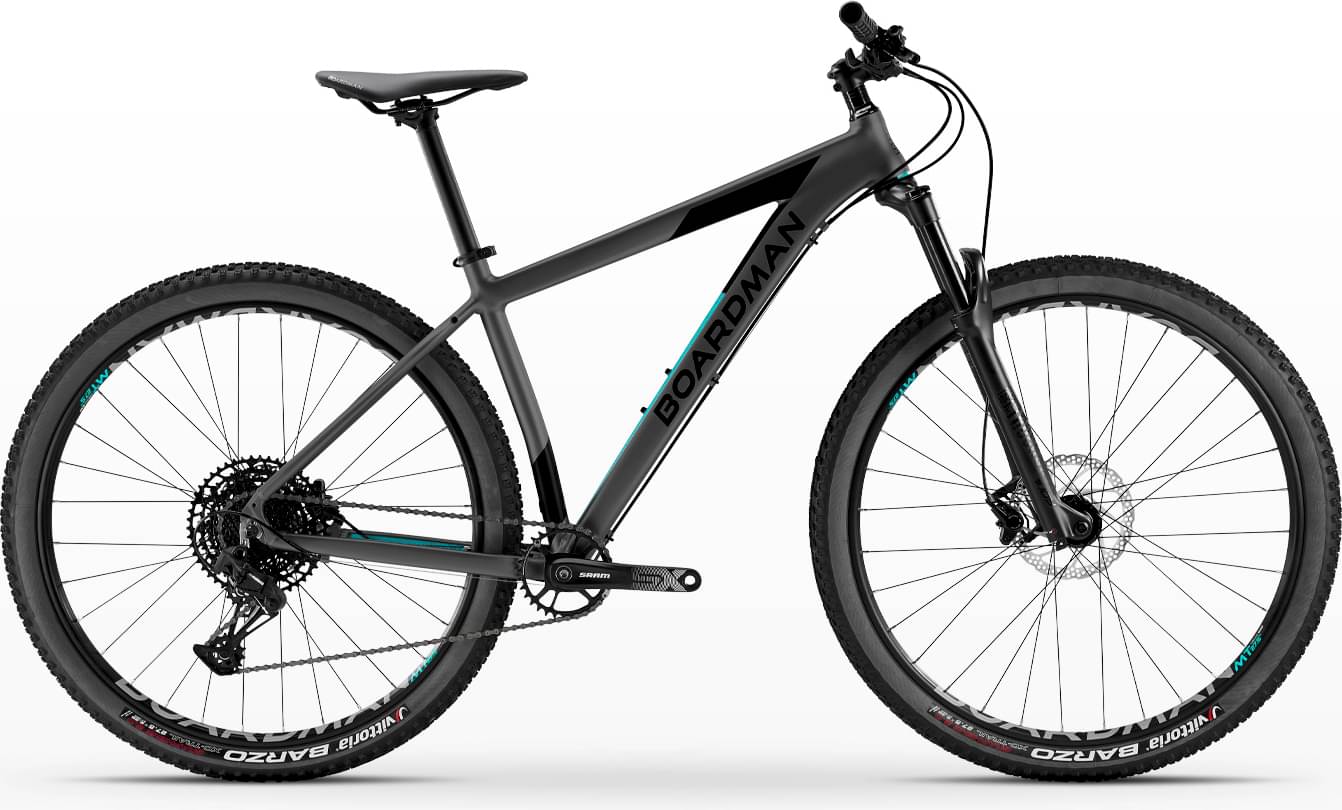

Boardman MHT 8.8 Womens 2025
2025 Mountain
Estimate price |
1,118$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle, NX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 179cm
LG
177cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, smooth welded, dropper post ready
Suspension Fork
Rock Shox Judy Silver 27.5" Boost, solo air, tapered, 120mm travel, 15mm maxle
Drivetrain
Rear Derailleur
SRAM SX, 12 speed, long cage
Shift Levers
SRAM SX, 12 speed
Cassette
SRAM SX - 12 Speed 11-50 Tooth
Crank
SRAM NX 32 ToothT
Bottom Bracket
SRAM Powerspline 73x118mm
Chain
SRAM SX Eagle 12-Speed
Pedals
Wellgo flats, 9/16”
Wheels
Front Hub
Formula 110x15MM thru axle front, 141mm Boost QR Rear
Rear Hub
Formula 110x15MM thru axle front, 141mm Boost QR Rear
Rims
Boardman MHT 27.5" Alloy - 25mm internal width rim
Tires
Vittoria Barzo TNT, 27.5"x2.25”, tubeless ready
Brakes
Brakes
Front: Shimano M400 or Tektro HD-M275 - 180mm front / 160mm rear rotor
Cockpit
Stem
Boardman Alloy, no rise, 31.8mm clamp
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” tapered, Integrated
Seat
Saddle
Boardman MTB Women’s by Velo, steel rails
Seatpost
Boardman Alloy, 31.6mm, 34.9mm QR seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.468 mm | 1.434 mm |
| Bottom Bracket Height | 303 mm | 306 mm | 306 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 599 mm | 605 mm | 615 mm |
| Reach | 399 mm | 412 mm | 429 mm |
| Top Tube Length | 565 mm | 580 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 356 mm | 410 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 52 mm | 49 mm | 49 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 170 cm | 177 cm |
| Rider Max Height | 172 cm | 179 cm | 183 cm |
