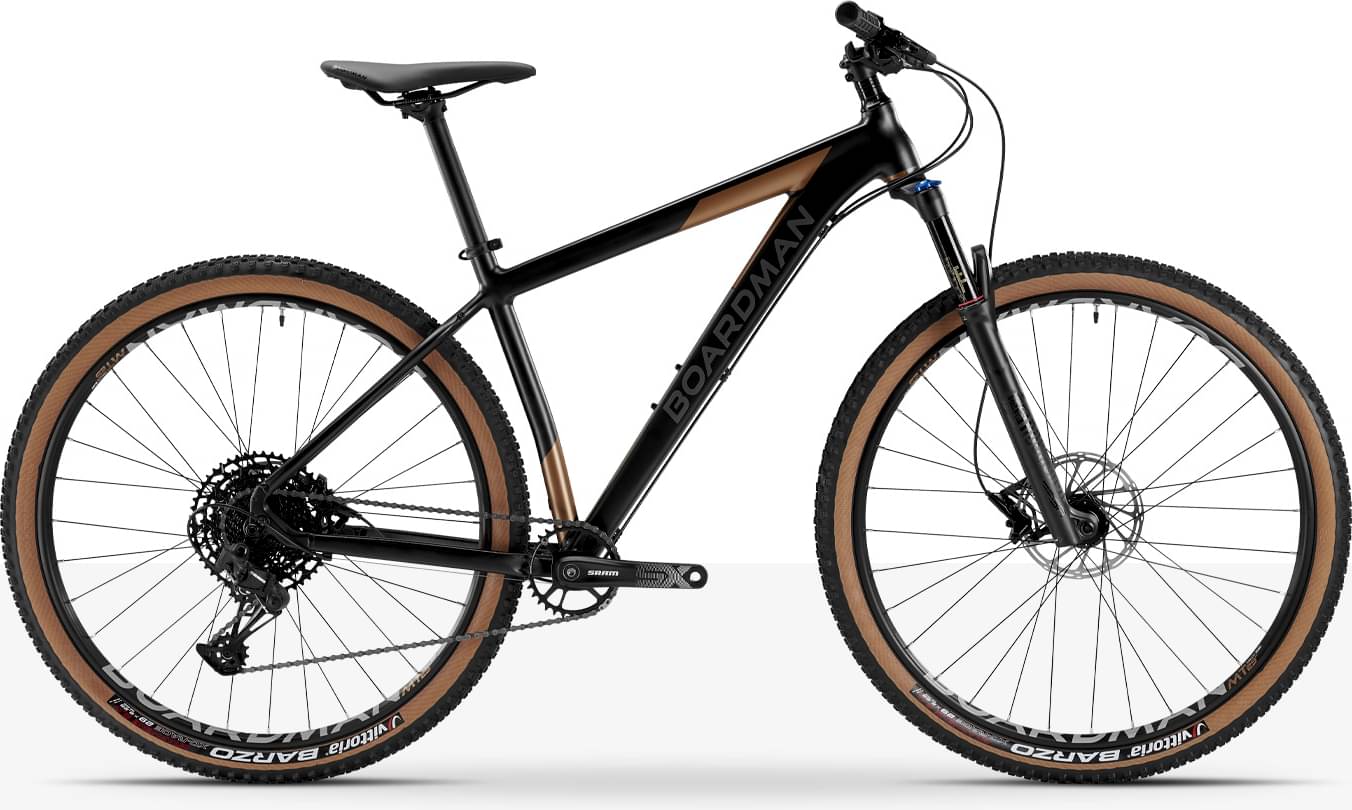

Boardman MHT 8.9 2025
2025 Mountain
Estimate price |
1,423$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Level T Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, smooth welded, dropper post ready
Suspension Fork
120mm Rock Shox Reba RL 29 boost, 15mm maxle
Drivetrain
Rear Derailleur
SRAM SX Eagle
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle
Cassette
SRAM CS-PG1210 11-50T
Crank
SRAM SX Eagle Powerspline 32t
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle
Pedals
Wellgo flats, 9/16”
Wheels
Front Hub
Formula Thru Axle 32h
Rear Hub
Formula Thru Axle 32h
Rims
Boardman tubeless ready Rims - 25mm inner width
Tires
Vittoria Barzo TLR Graphene 2.0 29x2.25” tubeless ready
Brakes
Brakes
Front: SRAM Level T, 6 bolt 180mm Front / 160mm Rear rotor
Cockpit
Stem
Boardman Alloy 45mm
Handlebar
Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp
Headset
FSA Orbit C-40 ACB, 1 1/8” - 1.5” tapered, Integrated
Seat
Saddle
Boardman MHT by Velo
Seatpost
Boardman Alloy, 31.6mm, 34.9mm QR seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.536 mm | 1.471 mm | 1.449 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 625 mm | 625 mm | 639 mm |
| Reach | 407 mm | 425 mm | 441 mm |
| Top Tube Length | 586 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 483 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 177 cm | 181 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm |
