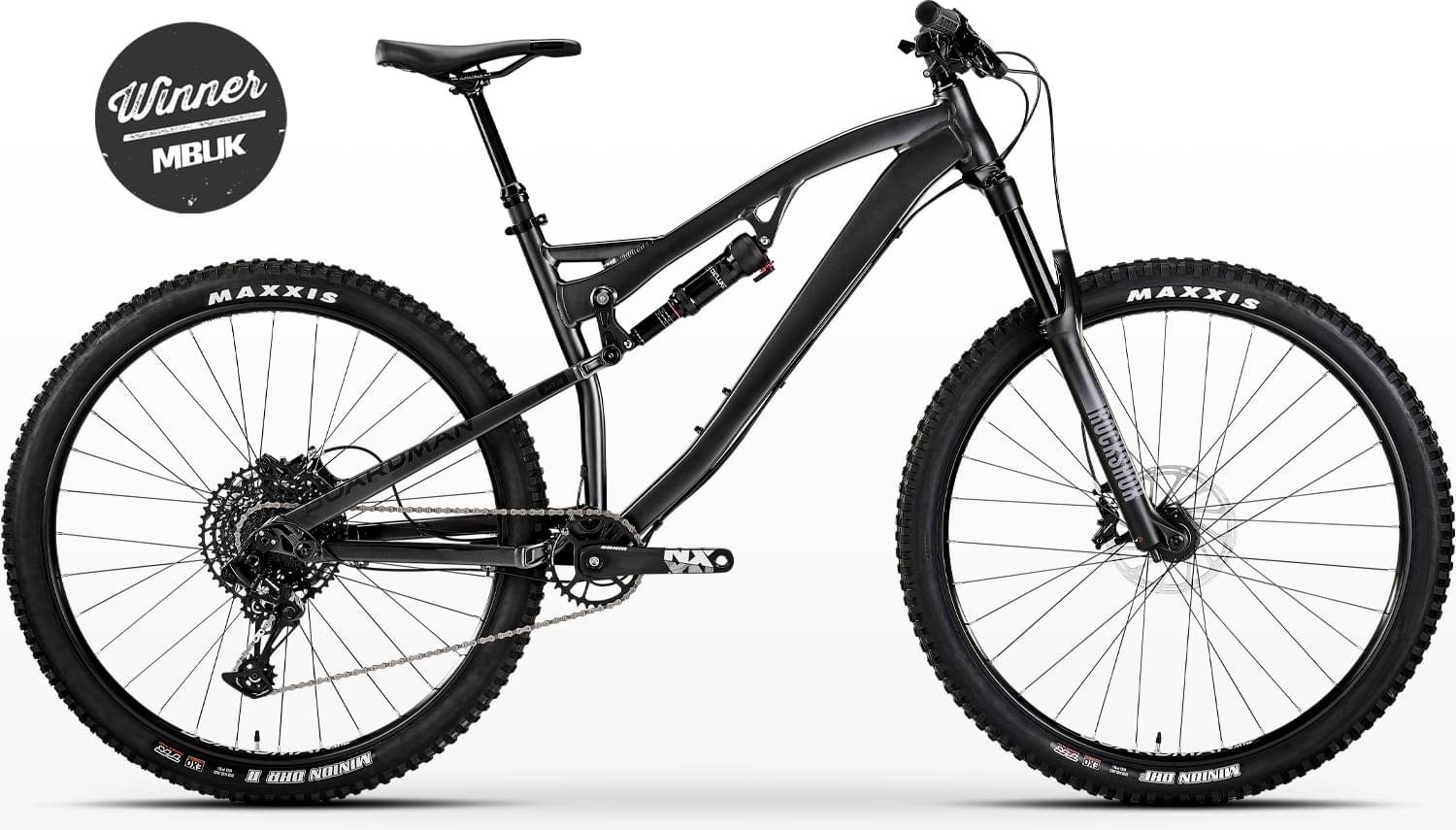

Boardman MTR 8.9 2024
2024 Mountain
Estimate price |
2,473$
Weight | 15.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 170cm
MD
168cm - 177cm
LG
175cm - 185cm
XL
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy with Rockshox Deluxe Select +, 230mm x 60mm
Suspension Fork
Rockshox 35 Gold RL 150mm
Drivetrain
Rear Derailleur
SRAM NX Eagle - 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle - 12 speed
Cassette
SRAM PG1210 Eagle - 11-50T
Crank
SRAM NX Eagle - 170mm 32T narrow wideT
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM SX Eagle - 12-speed
Pedals
Wellgo flats, 9/16”
Wheels
Front Hub
Alloy 32H - 15mm x 110 mm Front / 12mm x 148mm Boost
Rear Hub
Alloy 32H - 15mm x 110 mm Front / 12mm x 148mm Boost
Rims
Boardman 30mm Internal & Tubeless Ready
Tires
Maxxis Minion, Front - DHF Exo TR, Rear - DHRII Exo TR - Tubeless Ready
Brakes
Brakes
Front: SRAM Guide T - 180 mm rotor, Rear: SRAM Guide T - 180 mm rotor
Cockpit
Stem
Boardman Alloy, Zero rise - 31.8mm clamp
Handlebar
Boardman Alloy, 0.5mm Rise 780mm
Headset
FSA No.42,Tapered
Seat
Saddle
Boardman MTR
Seatpost
Satori Sorata Pro2 Dropper S/M - 125mm L/XL - 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.363 mm | 1.324 mm | 1.302 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 744 mm | 763 mm | 787 mm | 806 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 611 mm | 620 mm | 629 mm | 638 mm |
| Reach | 440 mm | 455 mm | 475 mm | 490 mm |
| Top Tube Length | 598 mm | 615 mm | 638 mm | 655 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 475 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1182 mm | 1201 mm | 1225 mm | 1244 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 168 cm | 175 cm | 183 cm |
| Rider Max Height | 170 cm | 177 cm | 185 cm | 195 cm |
