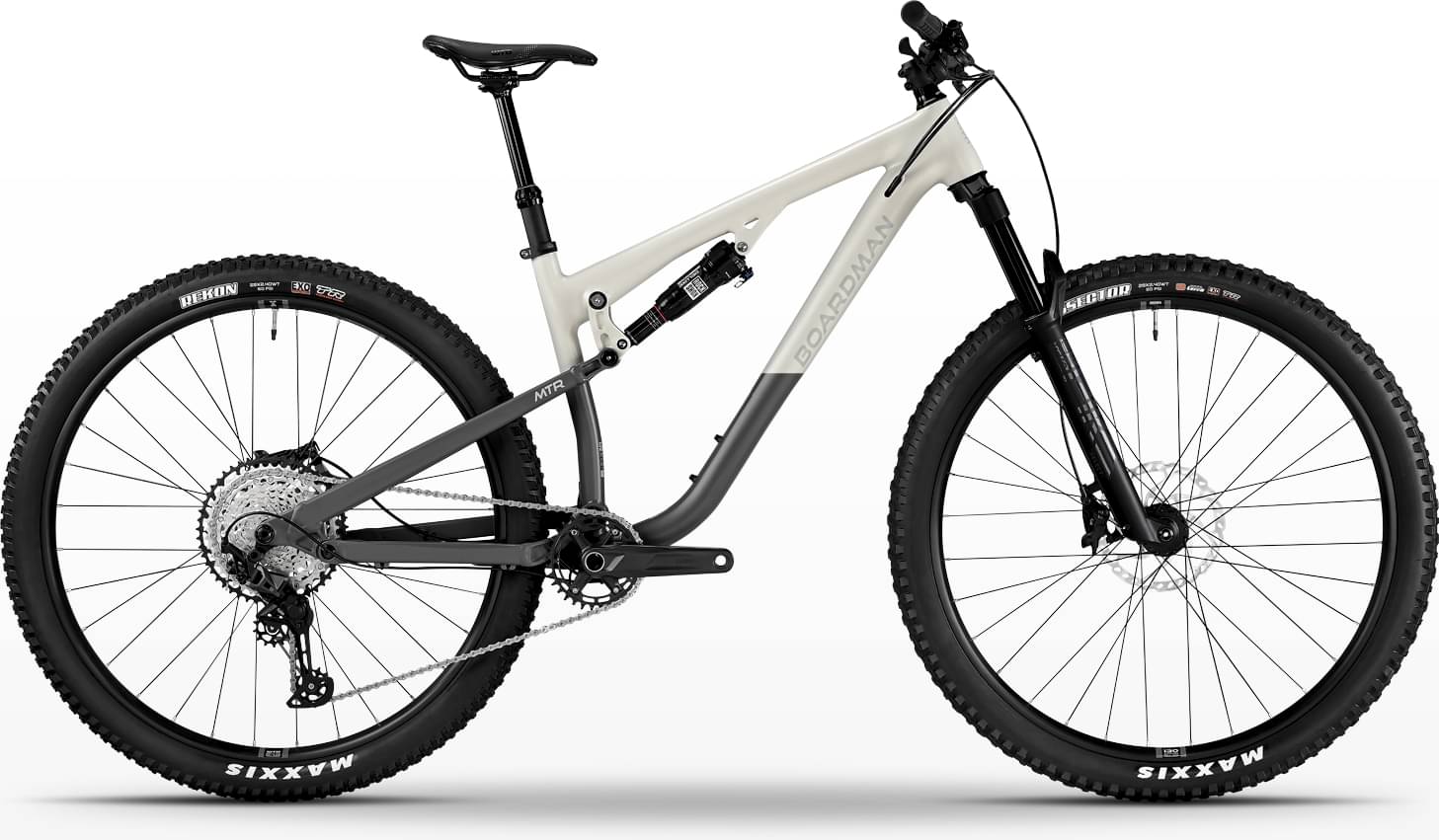

Boardman MTR 9.0 2025
2025 Mountain
Estimate price |
3,252$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Pike Select
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
MD
168cm - 177cm
LG
175cm - 185cm
XL
183cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy with RockShox Deluxe Ultimate RCT
Suspension Fork
Rockshox Pike Select 130mm
Drivetrain
Rear Derailleur
Shimano SLX RD-M7100-SGS, Shadow+
Shift Levers
Shimano SLX SL-M7100-R - 12 speed
Cassette
Shimano M6100, 12-speed - 10-51T
Crank
Shimano FC-MT510-1, 32T
Bottom Bracket
Shimano Deore SM-BB52
Chain
Shimano M6100, 12-speed
Pedals
Wellgo flats, 9/16”
Wheels
Rims
WTB i30 TCS & Tubeless Ready
Tires
Front - Maxxis Dissector EXO TR 29"x2.4", Rear - Maxxis Rekon 3C MAXXTERRA EXO TR 29"x2.4"
Brakes
Brakes
Shimano SLX BR-M7120 4-piston - 180mm rotor
Cockpit
Stem
Boardman Alloy, 45mm
Handlebar
Boardman Alloy - 31.8 780mm 15mm Rise
Headset
FSA No.42,ACB-A
Seat
Saddle
WTB Solano, Medium
Seatpost
Dropper M - 125mm L/XL - 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.326 mm | 1.292 mm | 1.258 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 610 mm | 620 mm | 629 mm |
| Reach | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 595 mm | 617 mm | 640 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 175 cm | 183 cm |
| Rider Max Height | 177 cm | 185 cm | 195 cm |
