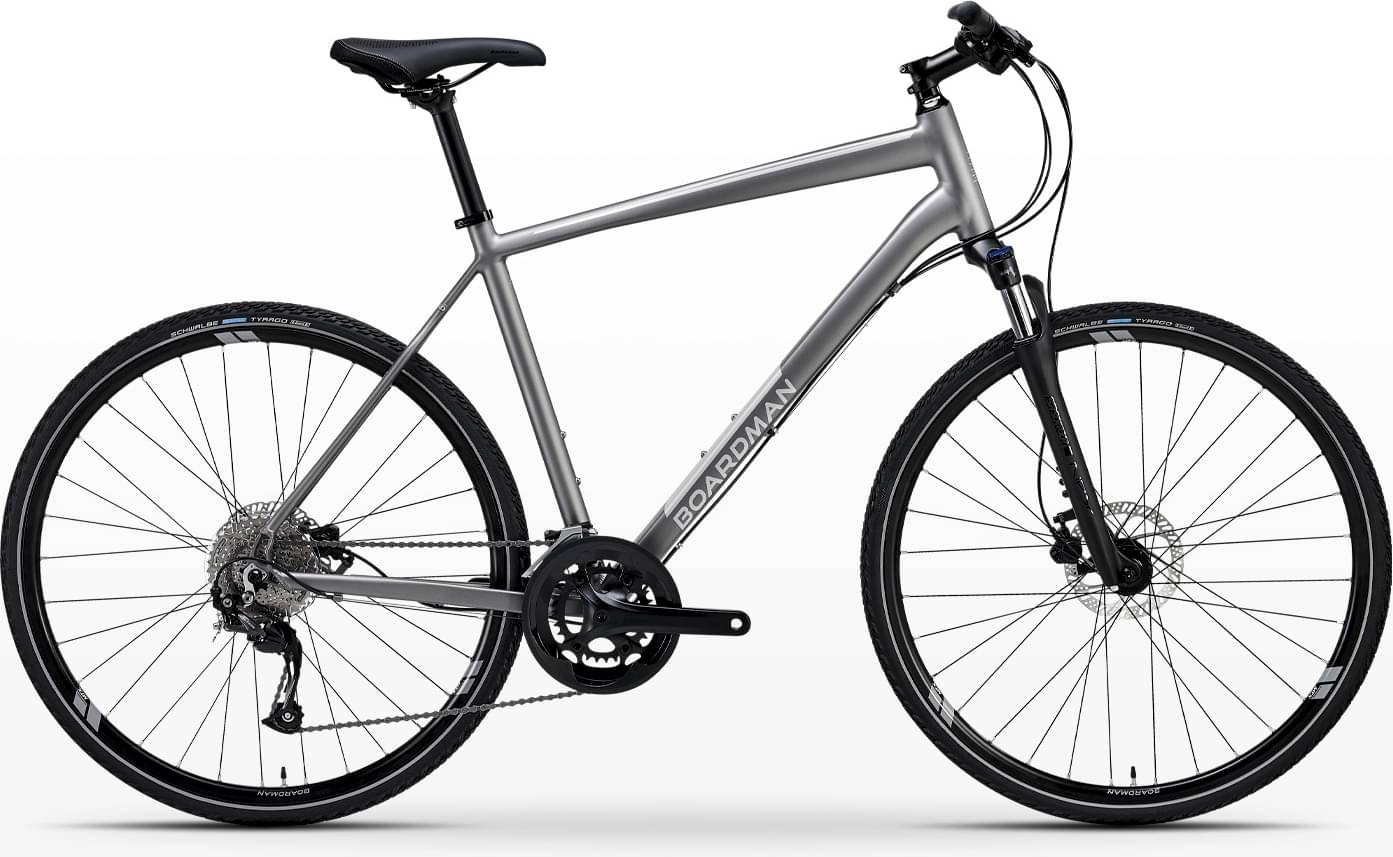

Boardman MTX 8.6 2025
2025 Urban
Estimate price |
813$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X7 Alloy - smooth weld
Suspension Fork
Suntour NEX-DS HLO, 63mm travel with lockout
Drivetrain
Rear Derailleur
Shimano Altus 9 speed
Front Derailleur
Shimano Acera
Shift Levers
Shimano Altus 2X9
Cassette
Shimano HG201, 9 speed, 11-36t
Crank
Prowheel RPL-421, 48-32t 48/32t
Bottom Bracket
FSA Square Taper BB
Chain
KMC X9
Pedals
Wellgo flats, 9/16”
Wheels
Front Hub
Formula QR
Rear Hub
Formula QR
Rims
Boardman MTX 700c
Tires
Schwalbe Tyrago, 700x37c, kevlar guard, reflective. Kenda presta tube
Brakes
Brakes
Front: Tektro M275 hydraulic disc, Tektro 160mm rotor
Cockpit
Stem
Boardman Alloy, 7 degree rise, 31.8mm clamp
Handlebar
Boardman Alloy, riser bar, 9 degree bend, 15mm rise, 31.8mm clamp.
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman MTX
Seatpost
Boardman Alloy, 31.6 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.492 mm | 1.497 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Stack | 602 mm | 625 mm | 651 mm |
| Reach | 401 mm | 419 mm | 435 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm |
