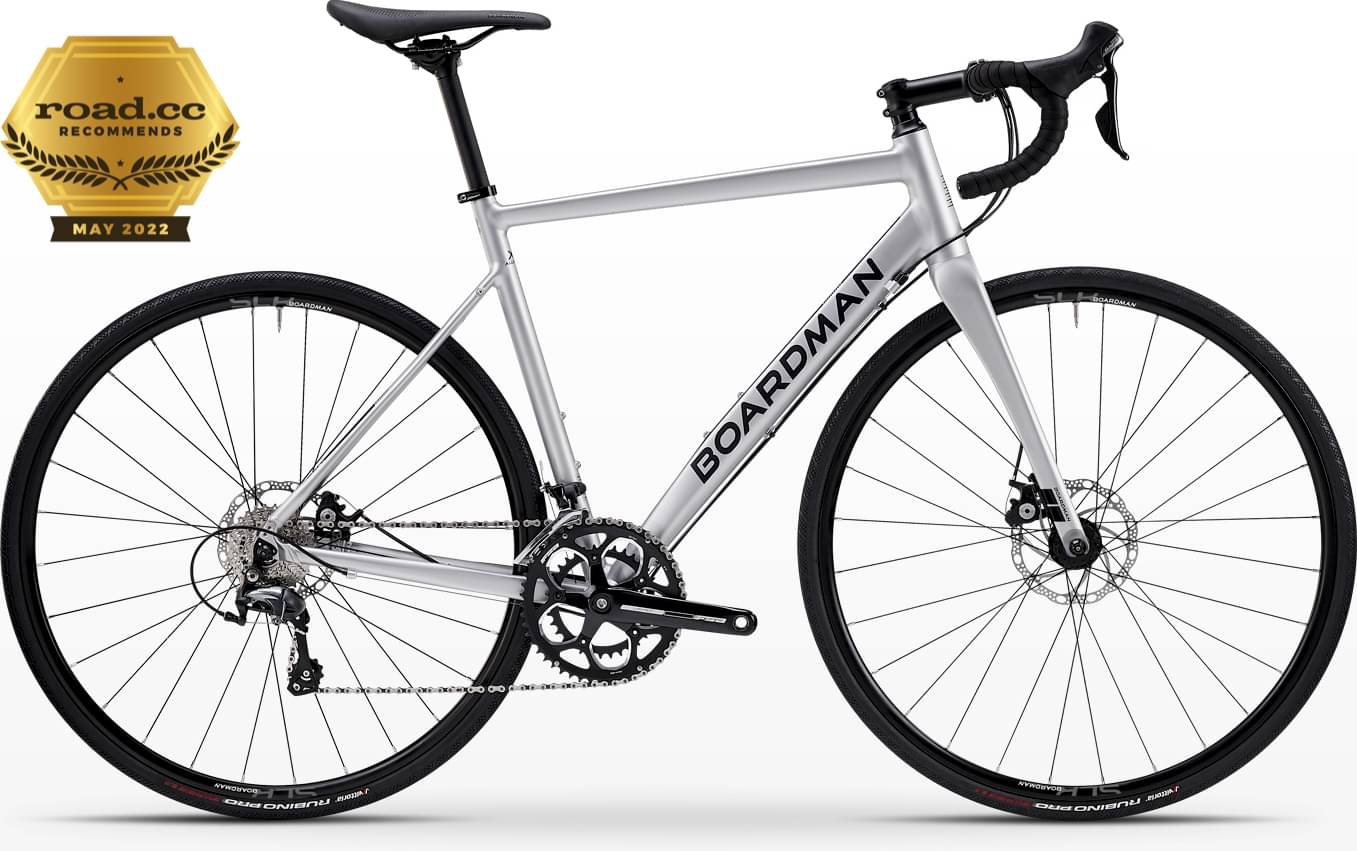

Boardman SLR 8.8 Disc 2025
2025 Road
Estimate price |
1,186$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple Butted 6061 X7 Aluminium with hidden welds
Suspension Fork
C7 Carbon with Tapered Steerer
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700GS
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra 4700 2x10
Cassette
Shimano HG500, 10 speed, 11-32
Crank
FSA Vero Compact, 50-34
Bottom Bracket
Square Taper 68x103mm
Chain
KMC X10
Pedals
Toe strap road, 9/16”
Wheels
Front Hub
Formula DC-20 front, DC22 rear
Rear Hub
Formula DC-20 front, DC22 rear
Rims
Boardman SLR Tubeless Ready - 28h
Tires
Vittoria Rubino G2.0 700c x 28mm
Brakes
Brakes
Front: Tektro MD-C511 Disc brake - Flat Mount - 160mm rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 75mm reach, 120mm drop
Headset
FSA no.10, 1 1/8”, Semi Integrated
Seat
Saddle
Boardman SLR
Seatpost
Boardman Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.479 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm |
| Rake | 48 mm | 48 mm | 45 mm | 45 mm |
| Stack | 547 mm | 568 mm | 589 mm | 604 mm |
| Reach | 378 mm | 384 mm | 390 mm | 400 mm |
| Top Tube Length | 540 mm | 552 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 515 mm | 530 mm | 555 mm | 575 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 195 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 179 cm | 183 cm | 189 cm | 195 cm |
