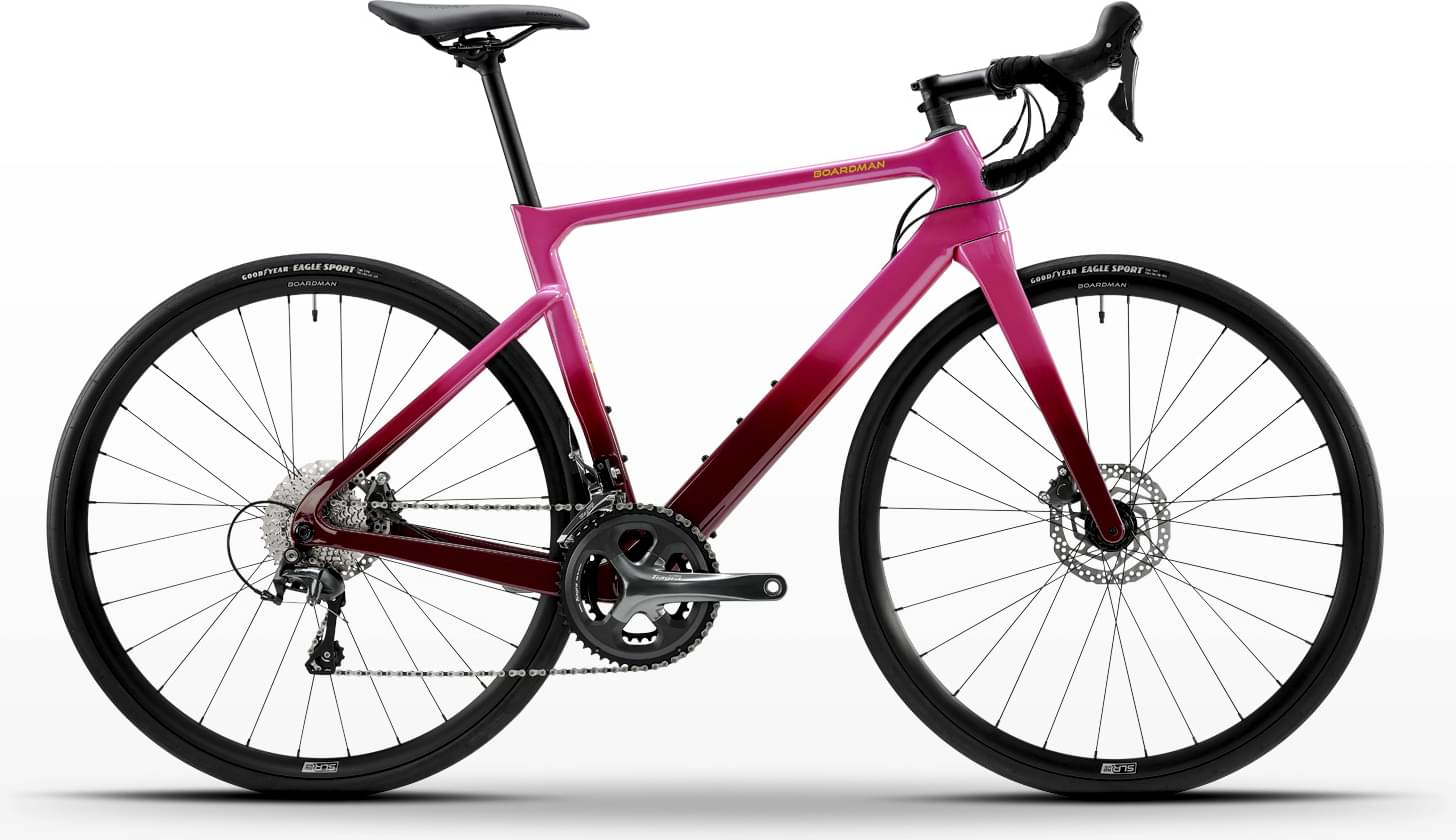

Boardman SLR 8.9 Womens Carbon 2025
2025 Road
Estimate price |
1,897$
Weight | 9.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Shimano Tiagra Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 171cm
MD
169cm - 177cm
LG
175cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman C7 Carbon, Internal cable routing, 12x142mm thru-axle, UDH hanger. Hidden seat post clamp and mudguard mounts. X3 bottle boss mounting points.
Suspension Fork
Boardman C7 Carbon 12x100mm thru-axle, hidden mudguard mounts
Drivetrain
Rear Derailleur
Shimano RD-4700 10-Speed
Front Derailleur
Shimano FD-4700 Brazed On 10-Speed
Shift Levers
Shimano Tiagra ST-4720
Cassette
Shimano CS-HG500 11-34 Tooth, 10-Speed
Crank
Shimano FC-4700 50x34 Tooth
Bottom Bracket
BB386EVO
Chain
KMC X10 10-speed
Pedals
Not Included
Wheels
Rims
Boardman RD Alloy SLR, Tubeless Compatible
Tires
Goodyear Eagle Sport Tubeless Compatible 700 x 30mm
Brakes
Brakes
Shimano Tiagra BR-4770 Hydraulic Disc
Cockpit
Stem
Boardman Alloy
Handlebar
Boardman Aero Alloy
Headset
ACROS 1.5”
Seat
Saddle
Boardman SLR Road
Seatpost
Boardman Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.45 mm | 1.451 mm |
| Bottom Bracket Height | 262 mm | 266 mm | 266 mm |
| Stack | 537 mm | 548 mm | 563 mm |
| Reach | 371 mm | 378 mm | 388 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 485 mm | 500 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° |
| Chainstay Length | 410 mm | 410 mm | 412 mm |
| Bottom Bracket Drop | 74 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm |
| Rider Max Height | 171 cm | 177 cm | 183 cm |
