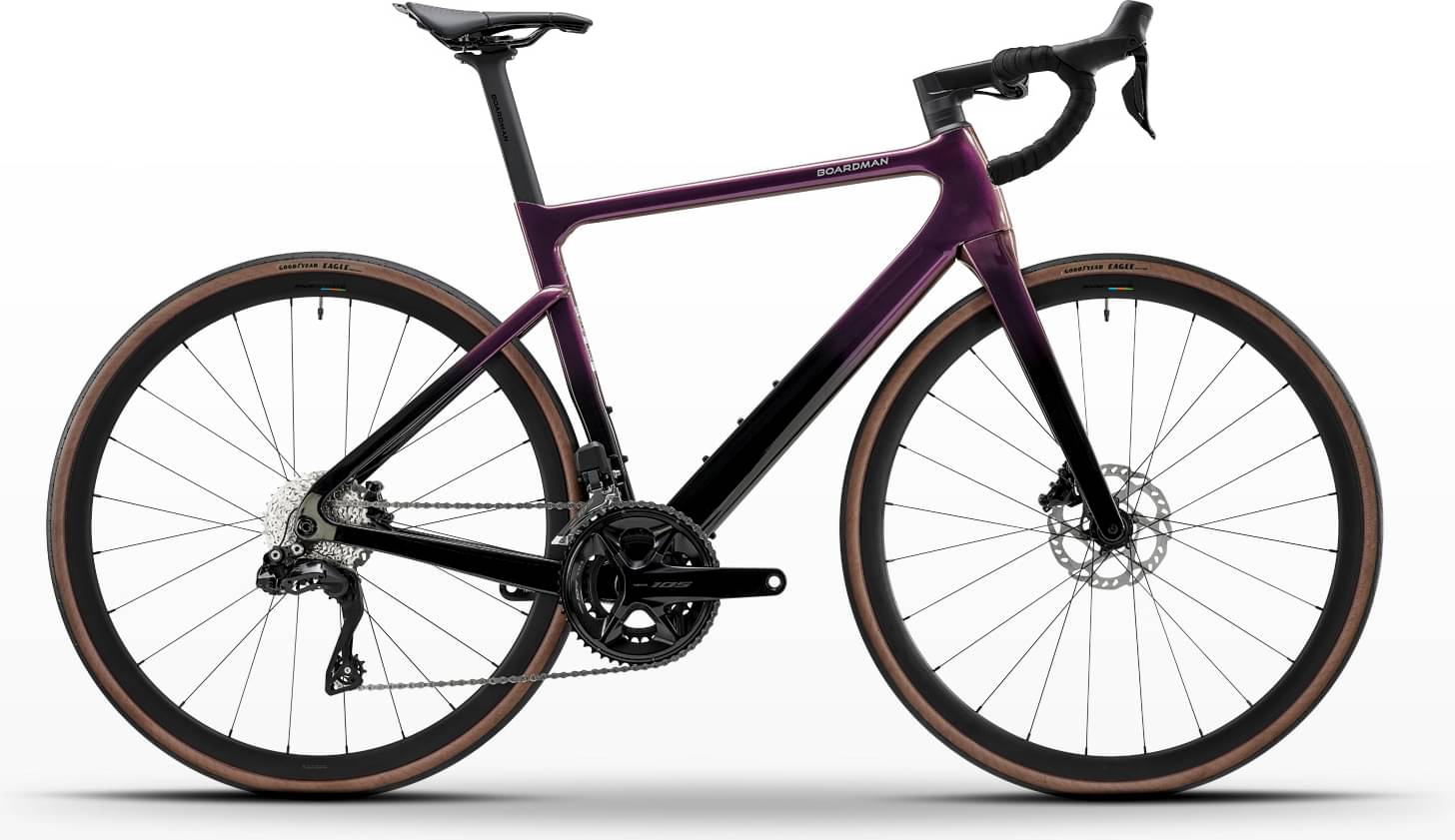

Boardman SLR 9.2 Carbon 2025
2025 Road
Estimate price |
3,387$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman C10 Carbon, Internal cable routing, 12x142mm thru-axle, UDH hanger. Hidden seat post clamp and mudguard mounts. X3 bottle boss mounting points.
Suspension Fork
Boardman C10 Carbon 12x100mm thru-axle, hidden mudguard mounts.
Drivetrain
Rear Derailleur
Shimano 105 RD-R7150 Di2 12-Speed
Front Derailleur
Shimano 105 FD-R7150 Di2 12-Speed
Shift Levers
Shimano 105 R7170 Di2 12-Speed
Cassette
Shimano CSR-7101, 11-34 Tooth, 12-Speed
Crank
Shimano FCR-7100 50-34 Tooth
Bottom Bracket
BB386EVO
Chain
Shimano CN-M6100 12-Speed
Wheels
Rims
Alex Alloy Road 30mm, Tubeless Ready
Tires
Goodyear Eagle Tubeless Ready 700 x 30mm
Brakes
Brakes
Shimano 105 BR7170 Hydraulic Disc
Cockpit
Stem
Boardman SLR ICR
Handlebar
Boardman Aero Alloy
Headset
ACROS 1.5”
Seat
Saddle
Prologo Scratch M5 PAS Steel
Seatpost
Boardman Two Position Aero D-Shaped Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.45 mm | 1.451 mm | 1.464 mm | 1.468 mm |
| Bottom Bracket Height | 262 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Stack | 537 mm | 548 mm | 563 mm | 577 mm | 593 mm |
| Reach | 371 mm | 378 mm | 388 mm | 394 mm | 404 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 465 mm | 485 mm | 500 mm | 525 mm | 545 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Chainstay Length | 410 mm | 410 mm | 412 mm | 412 mm | 412 mm |
| Bottom Bracket Drop | 74 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 171 cm | 179 cm | 183 cm | 189 cm | 195 cm |
