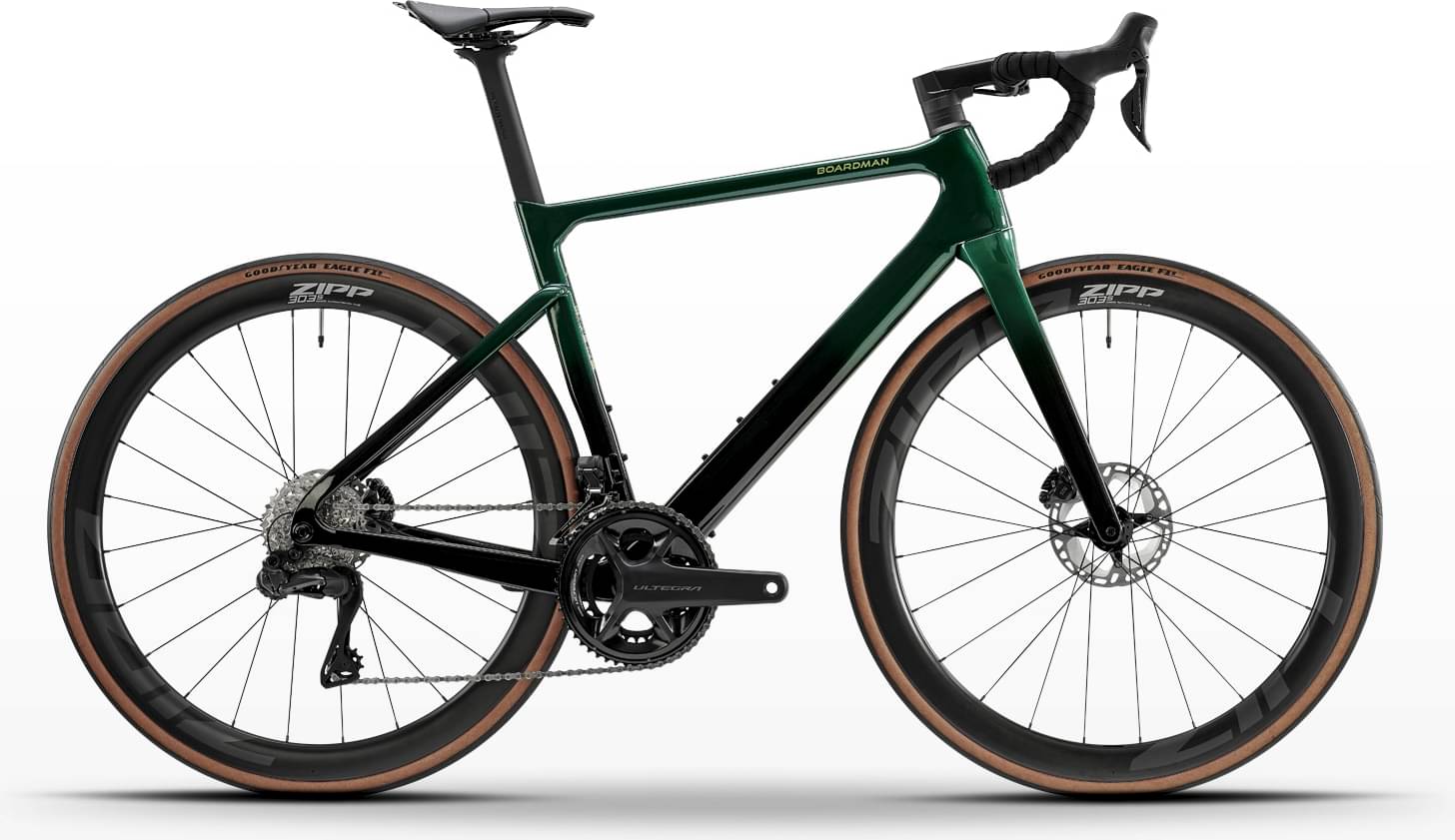

Boardman SLR 9.6 Carbon 2025
2025 Road
Estimate price |
4,684$
Weight | 8.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 179cm
MD
177cm - 183cm
LG
181cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman C10 Carbon, Internal cable routing, 12x142mm thru-axle, UDH hanger. Hidden seat post clamp and mudguard mounts. X3 bottle boss mounting points.
Suspension Fork
Boardman C10 Carbon 12x100mm thru-axle, hidden mudguard mounts.
Drivetrain
Rear Derailleur
Shimano Ultegra ST-R8170 Di2 12-Speed
Front Derailleur
Shimano Ultegra ST-R8170 Di2 12-Speed
Shift Levers
Shimano Ultegra ST-R8170 Di2 12-Speed
Cassette
Shimano FC-R8100 50/34 Tooth, 12-Speed
Crank
Shimano FC-R8100 50/34 Tooth
Bottom Bracket
BB386EVO
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
Zipp 303 S Carbon Tubeless Ready
Tires
Goodyear Eagle F1 R, Tubeless Ready 700 x 30mm
Brakes
Brakes
Shimano Ultegra ST-R8170 Hydraulic Disc
Cockpit
Stem
Boardman SLR ICR
Handlebar
Boardman Aero Alloy
Headset
ACROS 1.5”
Seat
Saddle
Prologo Scratch M5 PAS Tirox
Seatpost
Boardman Two Position Aero D-Shaped Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.45 mm | 1.451 mm | 1.464 mm | 1.468 mm |
| Bottom Bracket Height | 262 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Stack | 537 mm | 548 mm | 563 mm | 577 mm | 593 mm |
| Reach | 371 mm | 378 mm | 388 mm | 394 mm | 404 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 465 mm | 485 mm | 500 mm | 525 mm | 545 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Chainstay Length | 410 mm | 410 mm | 412 mm | 412 mm | 412 mm |
| Bottom Bracket Drop | 74 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 177 cm | 181 cm | 187 cm |
| Rider Max Height | 171 cm | 179 cm | 183 cm | 189 cm | 195 cm |
