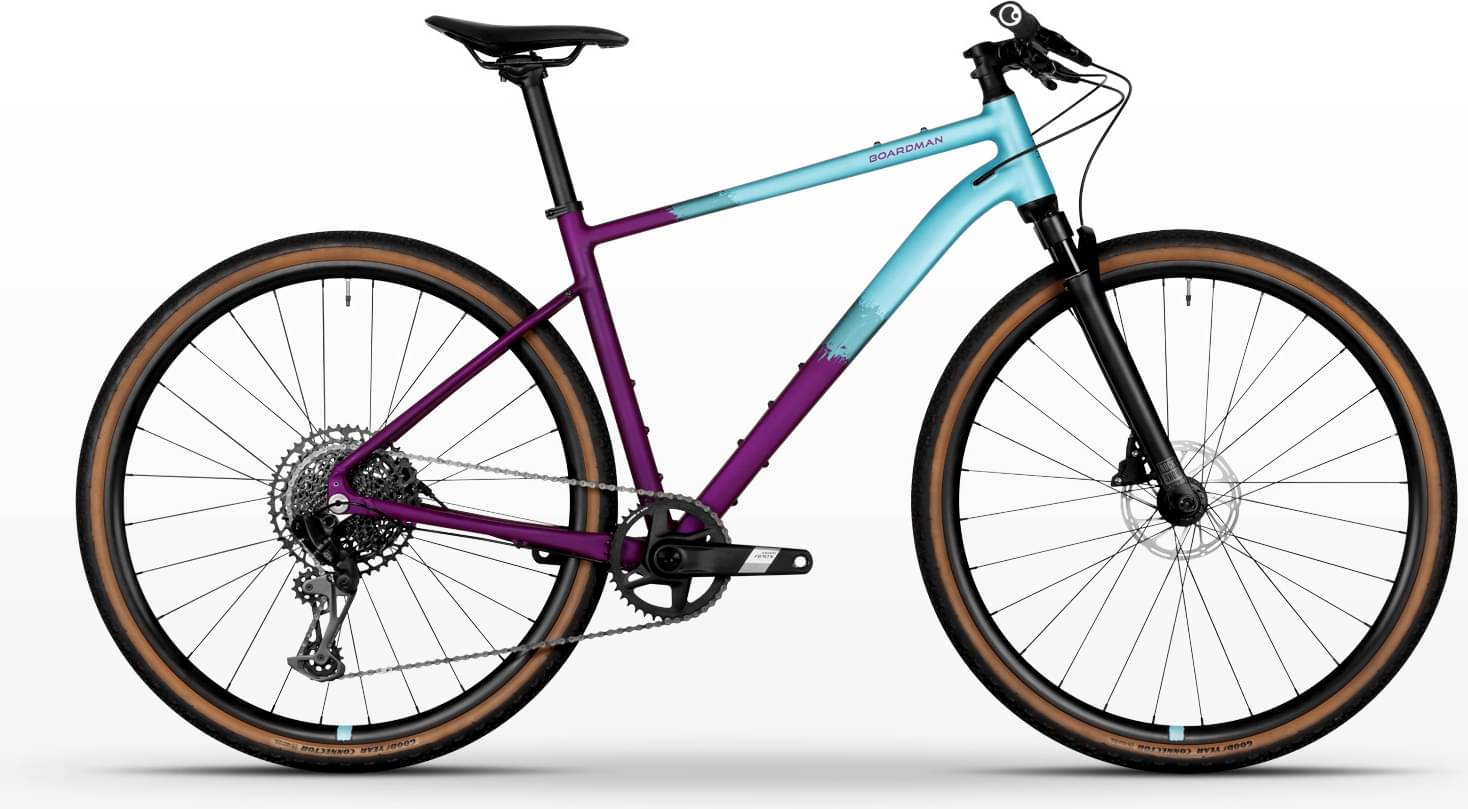

Boardman TRVL 8.9 FB 2024
2024 Mountain
Estimate price |
2,141$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset GX, Apex -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
170cm - 179cm
MD
177cm - 186cm
LG
183cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Boardman TRVL - 6061 Alloy
Suspension Fork
RockShox Rudy 40mm Travel
Drivetrain
Rear Derailleur
SRAM Eagle RD-GX-1, 12 Speed
Shift Levers
SRAM Eagle SL-GX-1, 1x12 Speed
Cassette
SRAM PG1230 Eagle, 11-50T, 12 Speed
Crank
SRAM FC-Apex-D1, 42T
Bottom Bracket
SRAM DUB T47
Chain
SRAM SX Eagle, 12 Speed
Pedals
Alloy, Flat
Wheels
Front Hub
Formula RX-512 front, RX-142 rear
Rear Hub
Formula RX-512 front, RX-142 rear
Rims
Boardman Asymmetric Adventure Tubeless Ready Rims
Tires
Goodyear Connector, Tubeless Ready, 700x45mm
Brakes
Brakes
SRAM DB-S300-A1, 160mm Disc Rotor
Cockpit
Stem
Boardman Alloy, 31.8mm clamp
Handlebar
Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop, 6 degree flare
Headset
FSA No.42, 1 1/8” - 1.5” Tapered, Integrated.
Seat
Saddle
Fizik Terra Argo
Seatpost
Boardman Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.379 mm | 1.375 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 590 mm | 600 mm | 612 mm |
| Reach | 420 mm | 435 mm | 445 mm |
| Top Tube Length | 585 mm | 607 mm | 620 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 140 mm | 150 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 170 cm | 177 cm | 183 cm |
| Rider Max Height | 179 cm | 186 cm | 192 cm |
