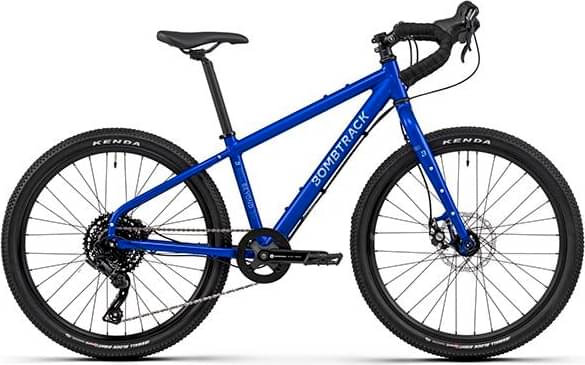

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium, QR, rack / fender mounts, 68 mm BSA BB shell
Suspension Fork
6061 aluminium, QR, fender / rack / triple cage mounts, internal hub dynamo cable routing
Drivetrain
Rear Derailleur
Microshift RD-M6195M, clutch
Front Derailleur
-
Shift Levers
Microshift Advent SB-M090 dual control lever 1 x 9
Cassette
Microshift CS-H093 9-speed, 11 - 42 T
Crank
Bombtrack Mach square taper crank
Bottom Bracket
BSA sealed BB, 118 mm, square taper
Chain
KMC X9 chain, 1/2'' x 11/128'', 98L
Pedals
Wellgo B109N flat pedal
Wheels
Front Hub
Bombtrack Arc sealed hub, 6-bolt disc, hex key skewer
Rear Hub
Bombtrack Arc sealed hub, 11-speed, 6-bolt disc, hex key skewer
Rims
Bombtrack TX20 double wall, i19, 32h
Tires
Front: Kenda Small Block Eight, 24" x 1.95", Rear: Kenda Small Block Eight, 24" x 1.95"
Brakes
Brakes
Tektro Mira F / Lyra R mechanic disc brake with 160 mm F /, 140 mm R rotors
Cockpit
Stem
Bombtrack Wander forged aluminium stem, +17°
Handlebar
Bombtrack Beyond travel bar, 31.8 mm, 30° flare
Grips
Bombtrack Control bar tape
Headset
Neco H282 sealed external aheadset, 1.1/8''
Seat
Saddle
Bombtrack Drift Saddle
Seatpost
Seido Beech 27.2 mm x 400 mm
Fit data
Geometry
