Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset GX Eagle, Truvativ Descendant -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell ¹
Suspension Fork
BOMBTRACK BPC full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts, internal hub dynamo cable routing
Drivetrain
Rear Derailleur
SRAM GX EAGLE, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM GX-EAGLE 12-speed trigger shifter
Cassette
SRAM XG-1275 EAGLE 12-speed, 10 - 52 T
Crank
SRAM DESCENDANT aluminium crank, Boost DUB
Bottom Bracket
SRAM DUB BSA 73 mm
Chain
SRAM GX EAGLE chain, 1/2'' x 11/128'', 118L
Pedals
-
Wheels
Front Hub
BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear Hub
BOMBTRACK GRAD Boost sealed hub, XD driver, 6-bolt disc
Rims
WTB ST i45 double wall, TCS 2.0, 32h
Tires
WTB RANGER TCS TOUGH / FAST ROLLING 29'' x 3.0'', tubeless ready
Brakes
Brakes
MAGURA TRAIL SPORT 4 piston front, 2 piston rear with 180 mm rotors
Cockpit
Stem
BOMBTRACK TRAMP forged aluminium stem, 3°
Handlebar
JONES H-BAR LOOP 710 travel bar, 31.8 mm, 710 mm
Grips
BOMBTRACK SHIFT 170 mm grips
Headset
Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK FUZZ
Seatpost
BOMBTRACK YEW aluminium seatpost, 30.9 mm x 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.48 mm | 1.42 mm |
| Front Center | 670 mm | 694 mm | 718 mm | 747 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 627 mm | 636 mm | 650 | 659 mm |
| Reach | 401 mm | 421 mm | 440 mm | 465 mm |
| Top Tube Length | 579 mm | 604 mm | 628 mm | 656 mm |
| Seat Tube Angle | 74 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 135 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1117 mm | 1141 mm | 1166 mm | 1194 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 781 mm | 808 mm | 839 mm | 866 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

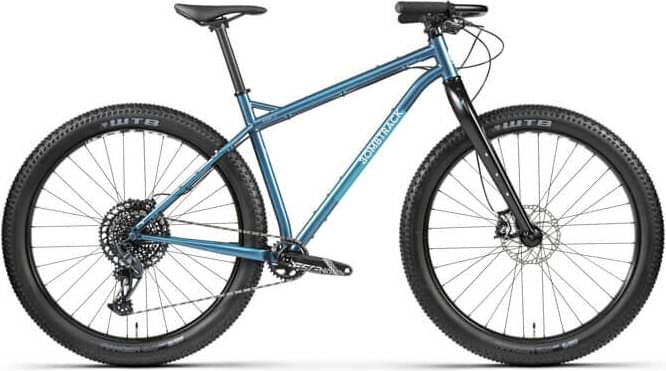

BEYOND+ ADV is a Bombtrack Beyondplus model. Bombtrack launched 7 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
BEYOND+ ADV weighs 13.7 kg (30.2 lbs) and is much heavier than the average. To sum up, it’s 68.51% heavier than the average weight of Gravel bikes.
BEYOND+ ADV components
Fork material
BEYOND+ ADV has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Bombtrack BEYOND+ ADV 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BEYOND+ ADV comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
BEYOND+ ADV comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
