Bike details
Overview
Key information split into simple groups.

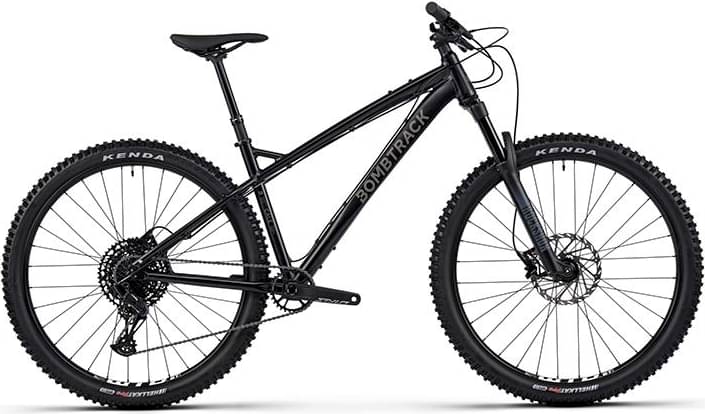

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Suspension Fork
RockShox 35 Gold RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Drivetrain
Rear Derailleur
SRAM SX Eagle, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM SX-Eagle 12-speed shifter
Cassette
SRAM PG-1210 Eagle 12-speed, 11 - 50 T
Crank
Truvativ Stylo 6K aluminium crank, Boost DUB
Bottom Bracket
SRAM DUB BSA 73 mm
Chain
SRAM NX Eagle chain, 1/2'' x 11/128'', 114L
Pedals
-
Wheels
Front Hub
Bombtrack Grad Boost sealed hub, 6-bolt disc
Rear Hub
Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc
Rims
WTB ST i29 double wall, TCS 2.0, 32h
Tires
Front: Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready, Rear: Kenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready
Brakes
Brakes
SRAM Level T hydraulic disc brakes
Cockpit
Stem
Seido Drift aluminium stem, 35 mm clamping diameter
Handlebar
Bombtrack Illusion flat bar, aluminium, 35 mm clamping diameter
Grips
Bombtrack Return 135 mm lock on grips
Headset
Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
Seido Origin saddle
Seatpost
KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 474 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.339 mm | 1.312 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 737 mm | 756 mm | 781 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 111 mm |
| Stack | 619 mm | 628 mm | 635 mm |
| Reach | 453 mm | 469 mm | 484 mm |
| Top Tube Length | 631 mm | 655 mm | 673 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 449 mm |
| Wheelbase | 1171 mm | 1191 mm | 1225 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 808 mm | 828 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
