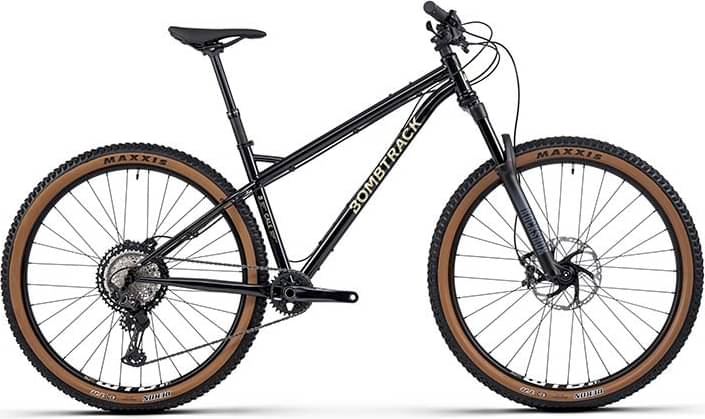

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Suspension Fork
RockShox 35 Gold RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100-SGS, clutch
Front Derailleur
-
Shift Levers
Shimano Deore XT SL-M8100-IR 12-speed shifter with I-Spec direct mount
Cassette
Shimano Deore XT CS-M8100 12-speed, 10 - 51 T
Crank
Shimano Deore XT FC-M8120-1 aluminium crank, Boost
Bottom Bracket
Shimano BB-MT800 BSA 73 mm
Chain
Shimano SLX CN-M7100 chain, 1/2'' x 11/128'', 118 L
Pedals
-
Wheels
Front Hub
Seido Grad Boost sealed hub, 6-bolt disc
Rear Hub
Seido Gon Boost sealed hub, 102 POE, Microspline driver, 6-bolt disc
Rims
WTB ST i29 double wall, TCS 2.0, 32h
Tires
Front: Maxxis Ardent 29'' x 2.4" TLR, tubeless ready, Rear: Maxxis Ardent 29'' x 2.4" TLR, tubeless ready
Brakes
Brakes
Shimano Deore XT BR-M8120 hydraulic disc brakes
Cockpit
Stem
Seido Drift aluminium stem, 35 mm clamping diameter
Handlebar
Bombtrack Illusion flat bar, aluminium, 35 mm clamping diameter
Grips
Bombtrack Return 135 mm lock on grips
Headset
Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
Seido Origin saddle
Seatpost
KS E20i dropper seatpost, 30.9 mm, 150 mm travel, 474 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.376 mm | 1.354 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm |
| Front Center | 721 mm | 741 mm | 750 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 110 mm |
| Stack | 610 mm | 619 mm | 627 mm |
| Reach | 433 mm | 450 mm | 463 mm |
| Top Tube Length | 608 mm | 633 mm | 648 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1150 mm | 1170 mm | 1180 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 783 mm | 802 mm | 825 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
