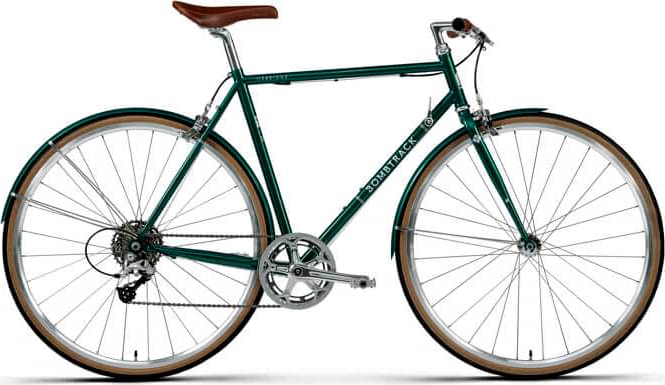

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 crmo front triangle, crmo dropouts with rack / fender mounts, 68 mm BSA BB shell
Suspension Fork
full 4130 crmo, 1'' threaded steerer, with rack and fender mounts
Drivetrain
Rear Derailleur
MICROSHIFT RD-R51M
Front Derailleur
-
Shift Levers
DIA Compe ENE W downtube shifter
Cassette
MICROSHIFT CS-H092 9-speed, 11 - 34 T
Crank
BOMBTRACK AF22 aluminium crank, square taper
Bottom Bracket
BSA sealed BB, 119 mm, square taper
Chain
KMC X9 chain, 1/2'' x 11/128''
Pedals
BOMBTRACK STROLL aluminium pedal
Wheels
Front Hub
BOMBTRACK DROME sealed front hub, 9 mm female bolt axle
Rear Hub
BOMBTRACK DROME sealed hub, 11-speed, 10 mm female bolt axle
Rims
BOMBTRACK M20 double wall, i18, 28h
Tires
Front: KENDA KWICK ROLLER 700C x 28C, Rear: KENDA KWICK ROLLER 700C x 28C
Brakes
Brakes
TEKTRO R359 aluminium caliper brakes
Cockpit
Stem
BOMBTRACK JAUNT aluminium quill stem, -17°
Handlebar
BOMBTRACK HORIZON flat bar, 560 mm, 25.4 mm, 8° backsweep
Grips
BOMBTRACK SPACE grip with leather bar tape
Headset
Sealed external headset, 1'' threaded
Seat
Saddle
BOMBTRACK HARRIS saddle
Seatpost
BOMBTRACK MYRTLE aluminium seatpost, 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.43 mm | 1.46 mm |
| Front Center | 596 mm | 601 mm | 617 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 64 mm | 60 mm |
| Stack | 502 mm | 532 mm | 559 mm |
| Reach | 363 mm | 372 mm | 383 mm |
| Top Tube Length | 519 mm | 537 mm | 557 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 101 mm | 126 mm | 153 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm |
| Wheelbase | 994 mm | 1000 mm | 1015 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 748 mm | 778 mm | 806 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
OXBRIDGE GEARED belongs to the Bombtrack Oxbridge model. Bombtrack launched 8 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hipster bikes average price
According to our calculations, the average cost of a Hipster bike that is reliable is 612$. However, even though the average price of a Hipster bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hipster bikes average weight
Hipster bikes have an average weight of 10 kg (22.05 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Bombtrack OXBRIDGE GEARED it’s weighing 10.9 kg (24.03 lbs). At this weight, is a bit heavier than average. In short, the average Hipster bike weight is 9% lower than this one.
OXBRIDGE GEARED components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The OXBRIDGE GEARED 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bombtrack OXBRIDGE GEARED has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
