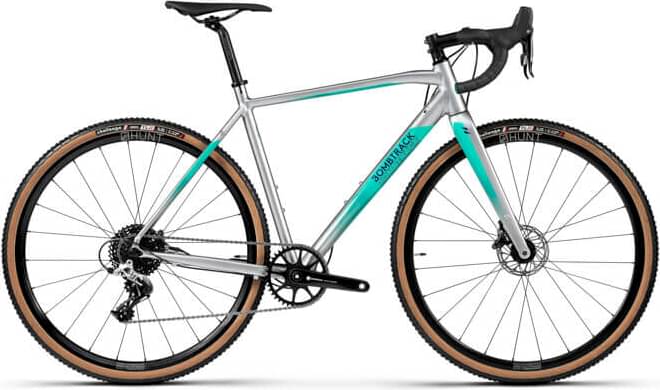

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 double butted aluminium, TA, rack / fender mounts, 86.5 mm BB T47 shell
Suspension Fork
full carbon, TA, 1.1/2'' - 1.1/8'', fender mounts
Drivetrain
Rear Derailleur
SRAM RIVAL 1, clutch, long cage
Front Derailleur
-
Shift Levers
SRAM RIVAL 1 double tap 1 x 11
Cassette
SRAM PG-1130 11-speed, 11 - 36 T
Crank
BOMBTRACK LYER forged aluminium crank, direct mount interface, (SRAM compatible),30 mm spindle
Bottom Bracket
BOMBTRACK T47 internal sealed BB for 30 mm spindle
Chain
KMC X11 EPT Anti Rust chain, 1/2'' x 11/128'', 114L
Pedals
-
Wheels
Front Hub
HUNT 4 SEASON V2 sealed hub, 6-bolt disc
Rear Hub
HUNT 4 SEASON V2 sealed hub, 11-speed, 6-bolt disc
Rims
Front: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h, Rear: HUNT 4 SEASON double wall asymmetric rim, TLC, i19, 24h
Tires
Front: XS - S VEE TIRE XCX 120 TPI TLR 32-584 /, M - XL CHALLENGE GRIFO TLR 33-622, tubeless ready, Rear: XS - S VEE TIRE XCX 120 TPI TLR 32-584 /, M - XL CHALLENGE GRIFO TLR 33-622, tubeless ready
Brakes
Brakes
SRAM RIVAL flat mount hydraulic disc brakes with 140 mm rotors
Cockpit
Stem
RITCHEY COMP 4-AXIS 44 aluminium stem, -6°
Handlebar
RITCHEY ROAD COMP STREEM III drop bar, 31.8 mm, 5° backsweep
Grips
BOMBTRACK COMMAND bar tape
Headset
Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Seat
Saddle
BOMBTRACK DART saddle
Seatpost
RITCHEY COMP 2-BOLT aluminium seatpost 27.2 mm x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.448 mm | 1.448 mm | 1.482 mm | 1.501 mm | 1.5 mm |
| Front Center | 563 mm | 575 mm | 598 mm | 611 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 64 mm | 70 mm | 66 mm | 66 mm |
| Stack | 514 mm | 530 mm | 563 mm | 587 mm | 603 mm |
| Reach | 355 mm | 366 mm | 380 mm | 391 mm | 402 mm |
| Top Tube Length | 507 mm | 523 mm | 552 mm | 570 mm | 586 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 100 mm | 115 mm | 139 mm | 162 mm | 179 mm |
| Chainstay Length | 410 mm | 410 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 967 mm | 979 mm | 1014 mm | 1028 mm | 1044 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 757 mm | 799 mm | 825 mm | 848 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
