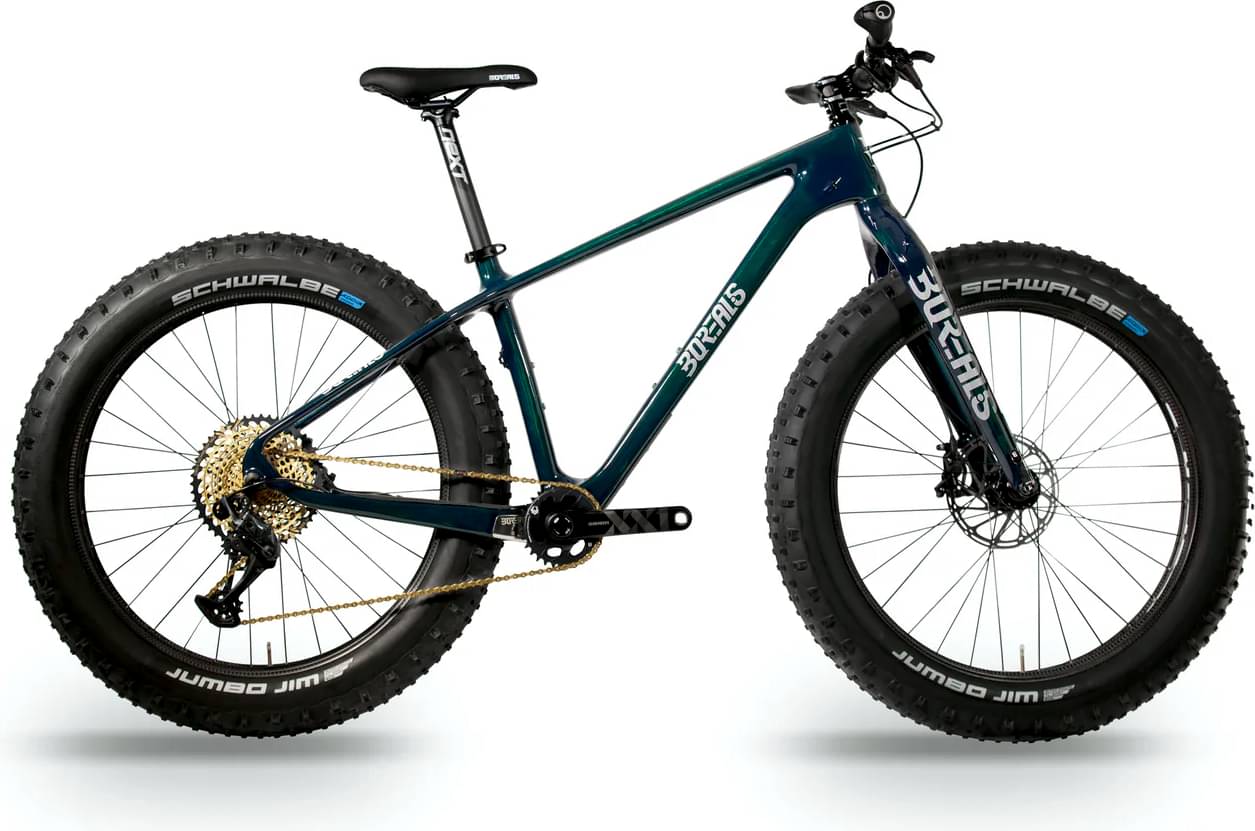

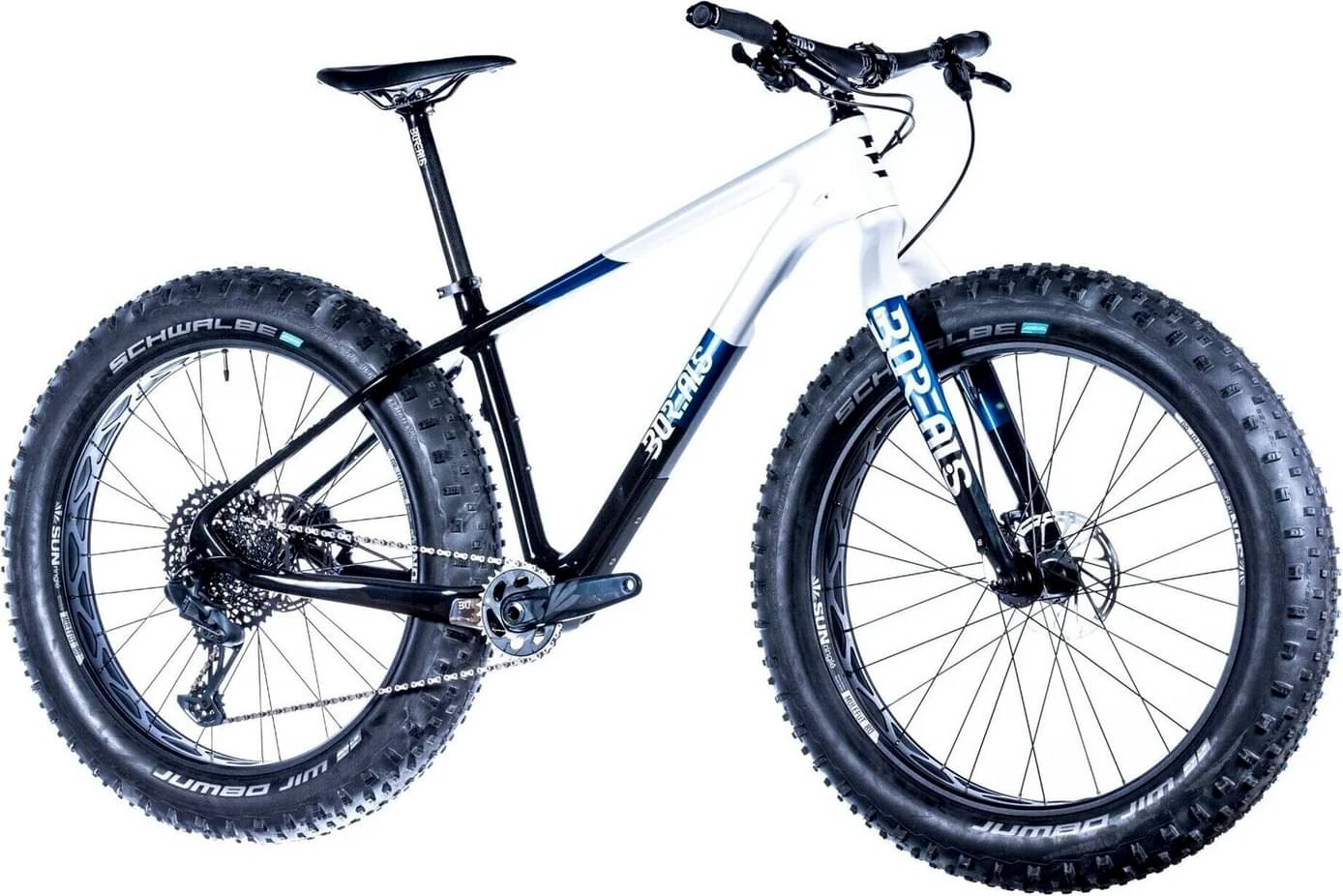

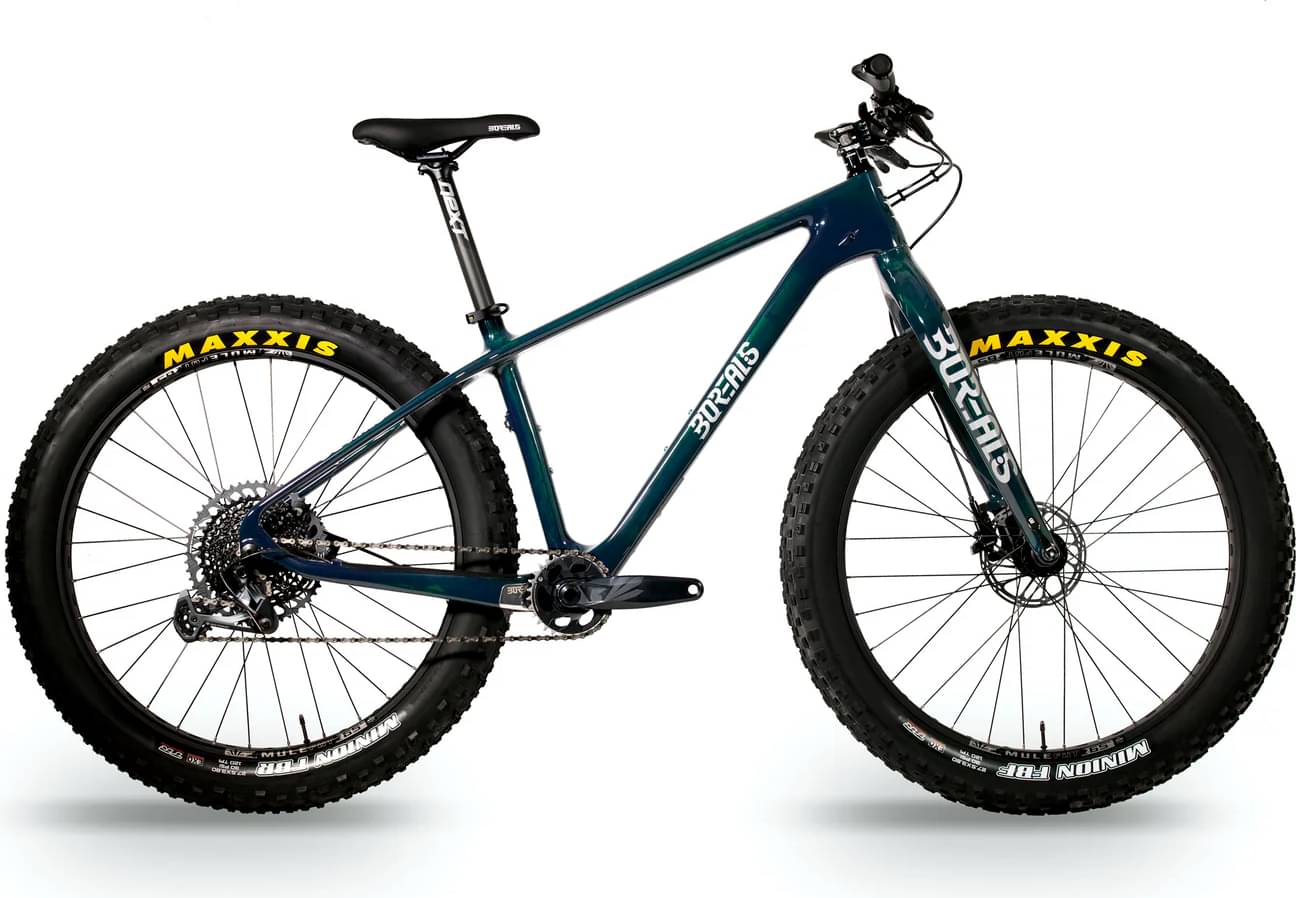

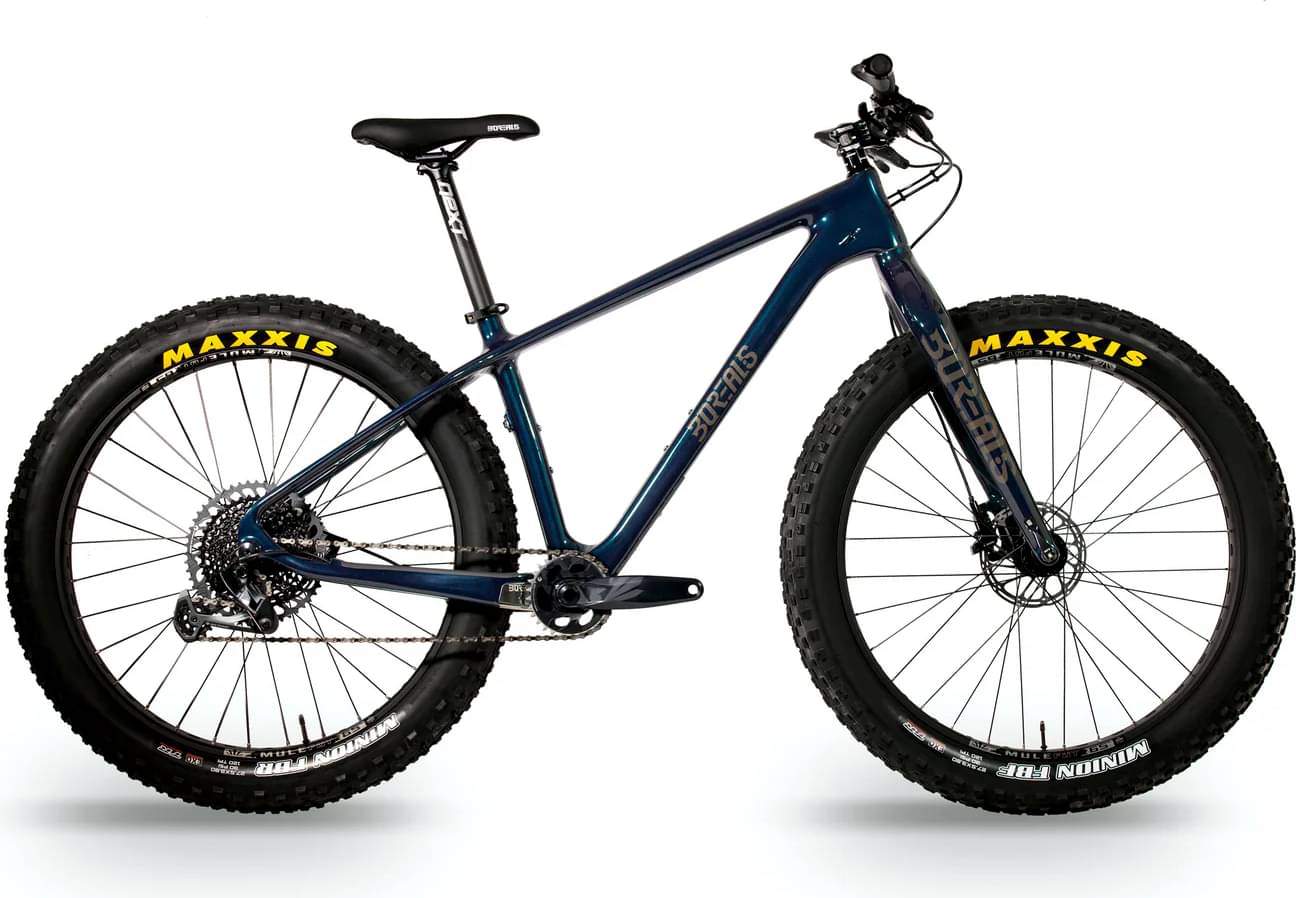

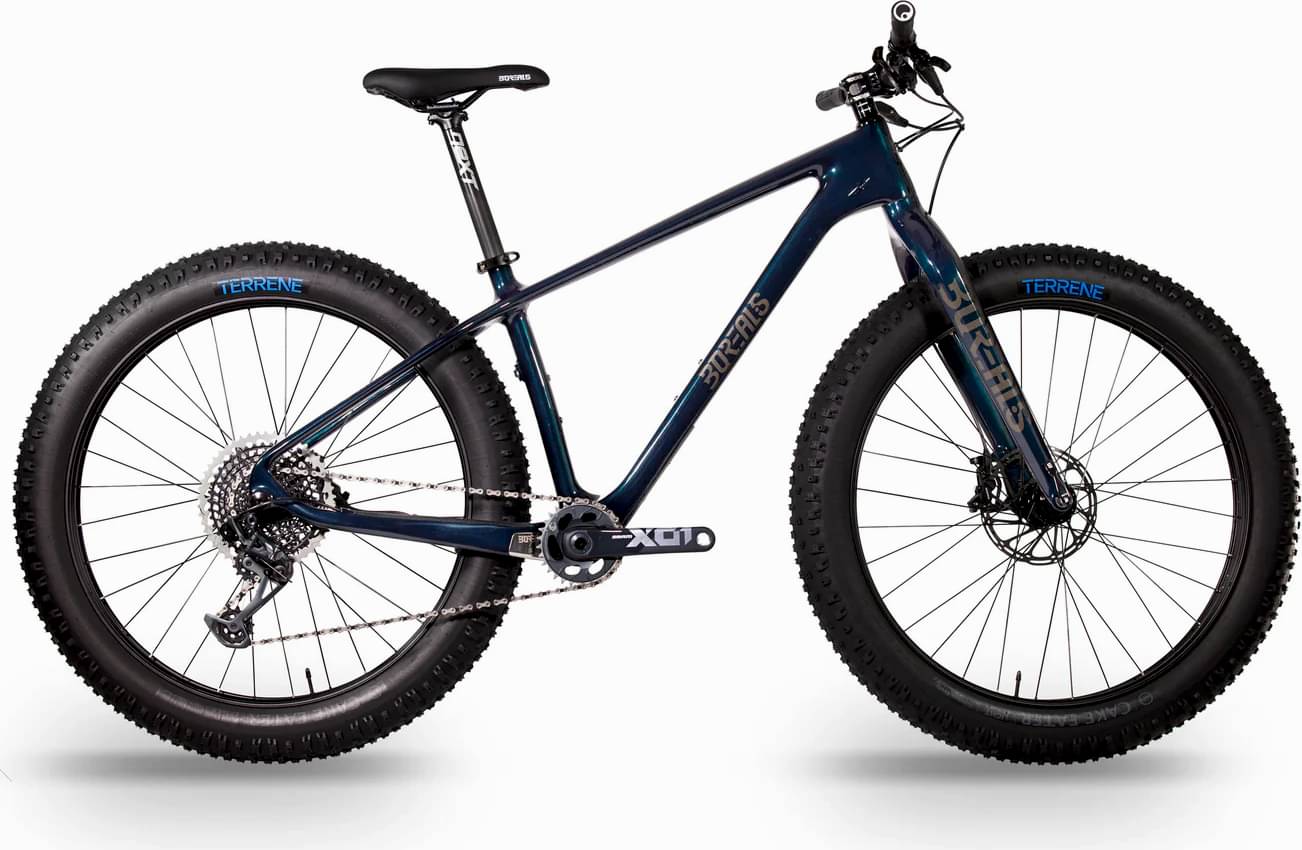

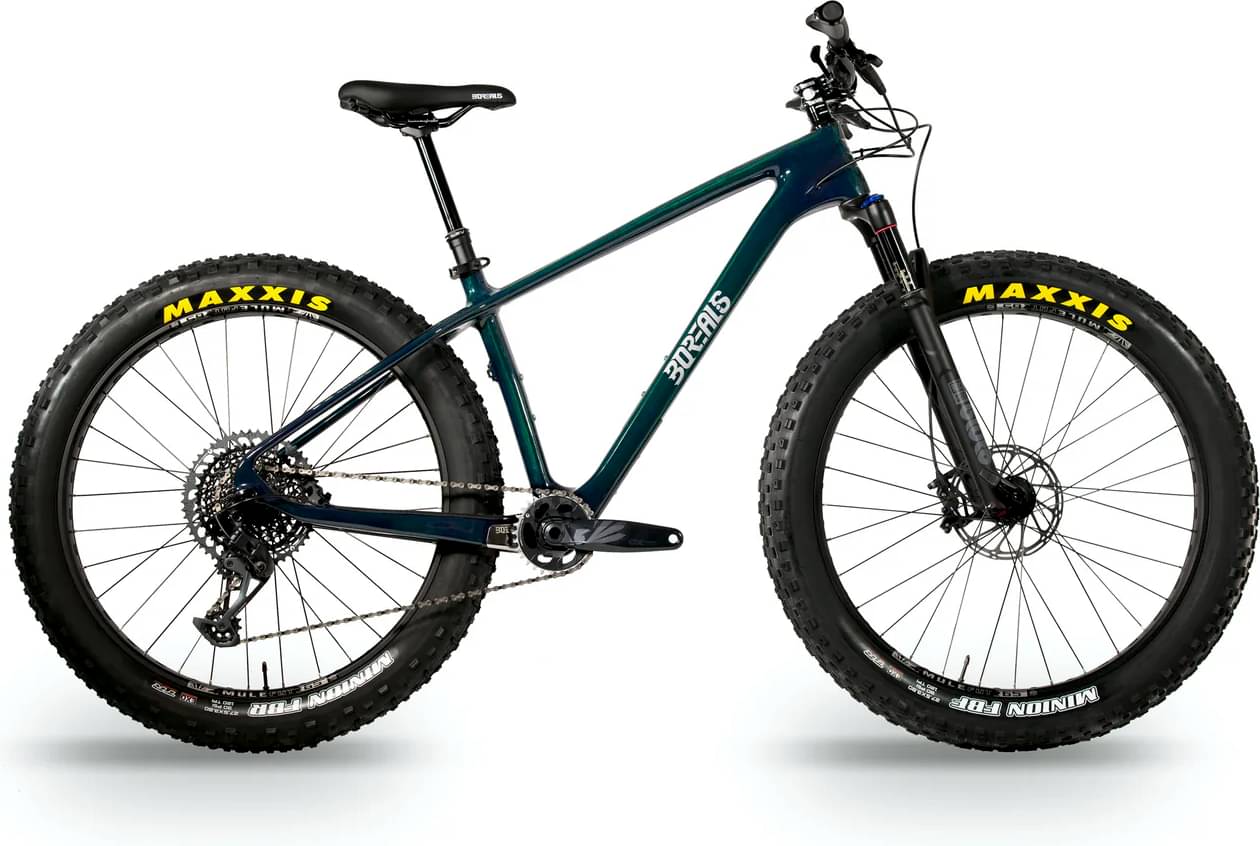

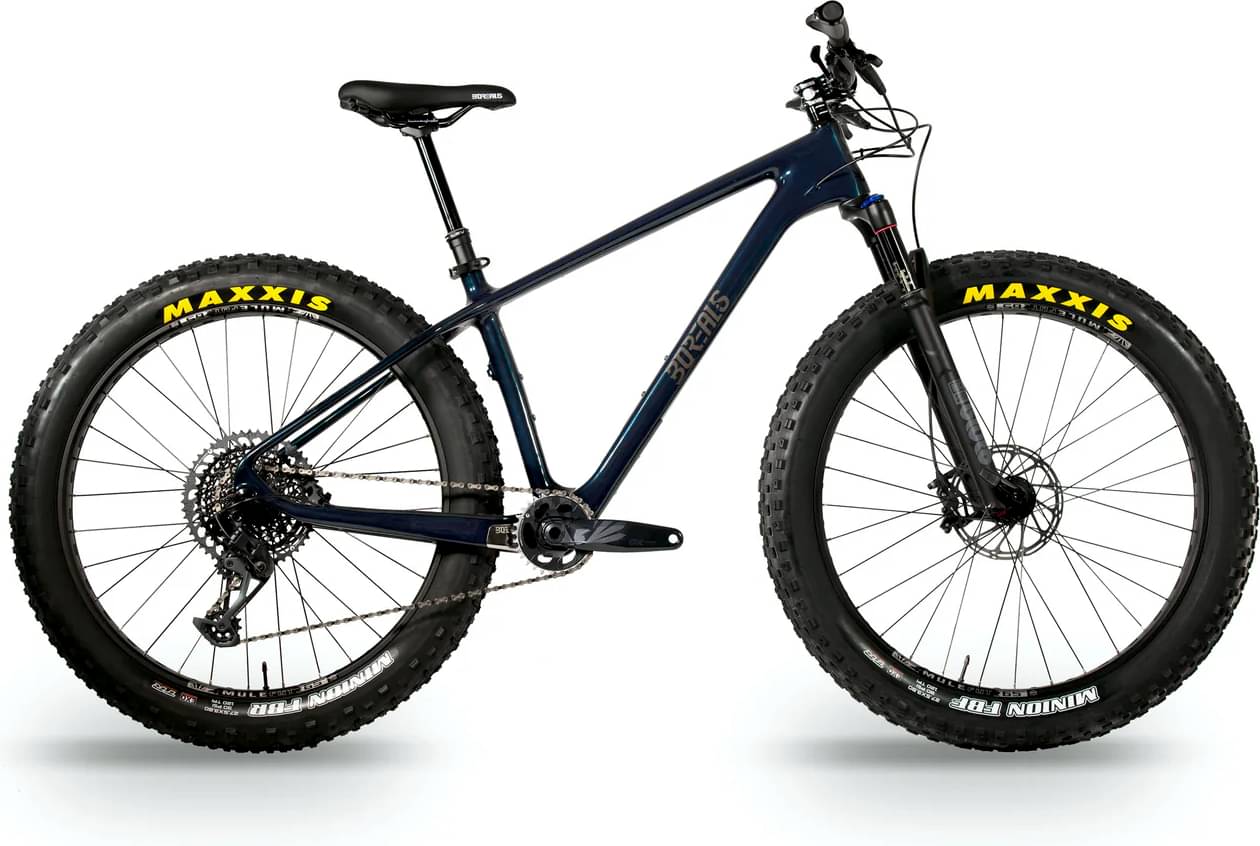

borealis CRESTONE CUSTOM BUILD 2024
2024 Mountain
Estimate price |
2,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset NX -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Flume (Aluminum)

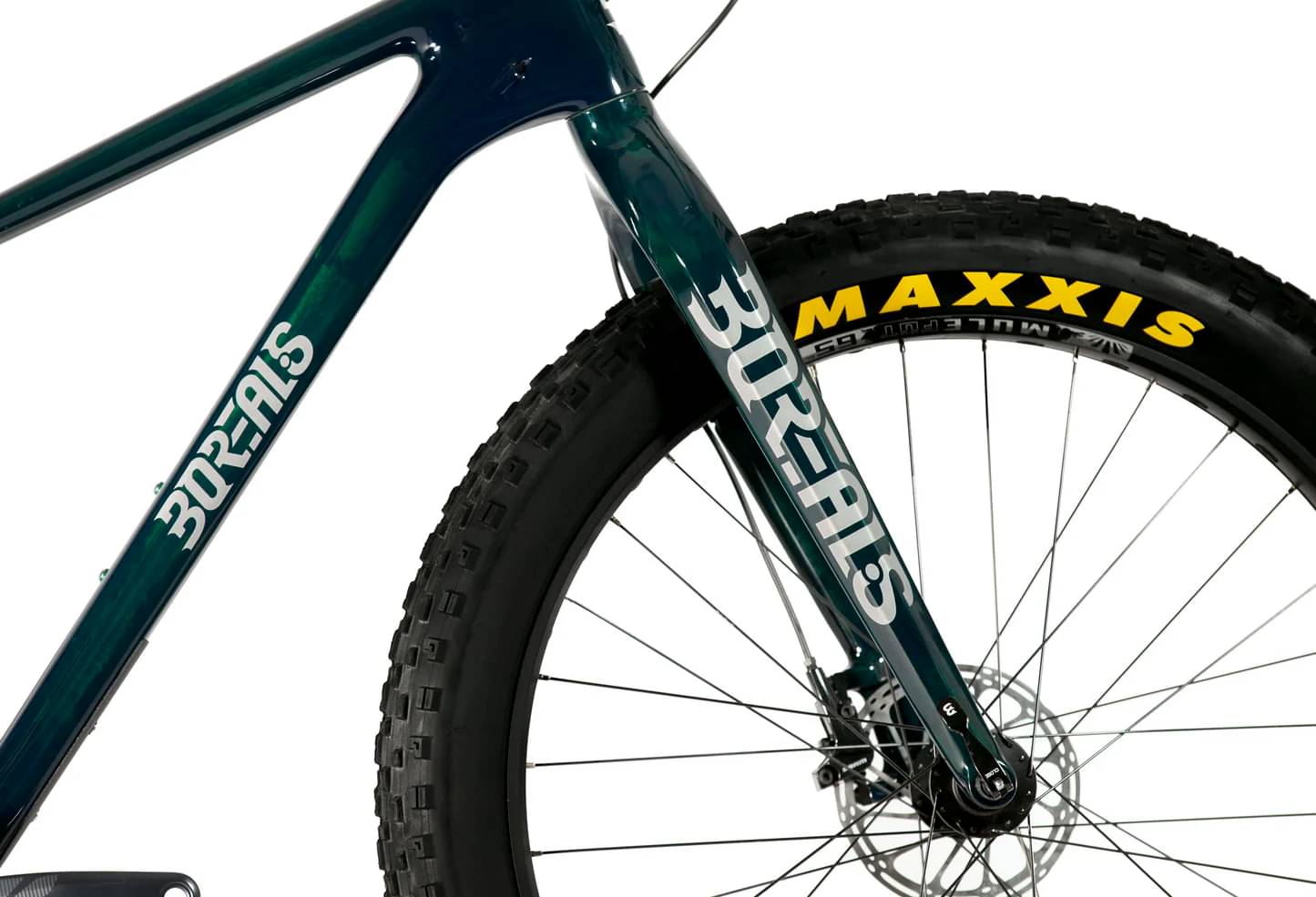

Suspension Fork
Borealis Carbon Rigid Fork Standard Option

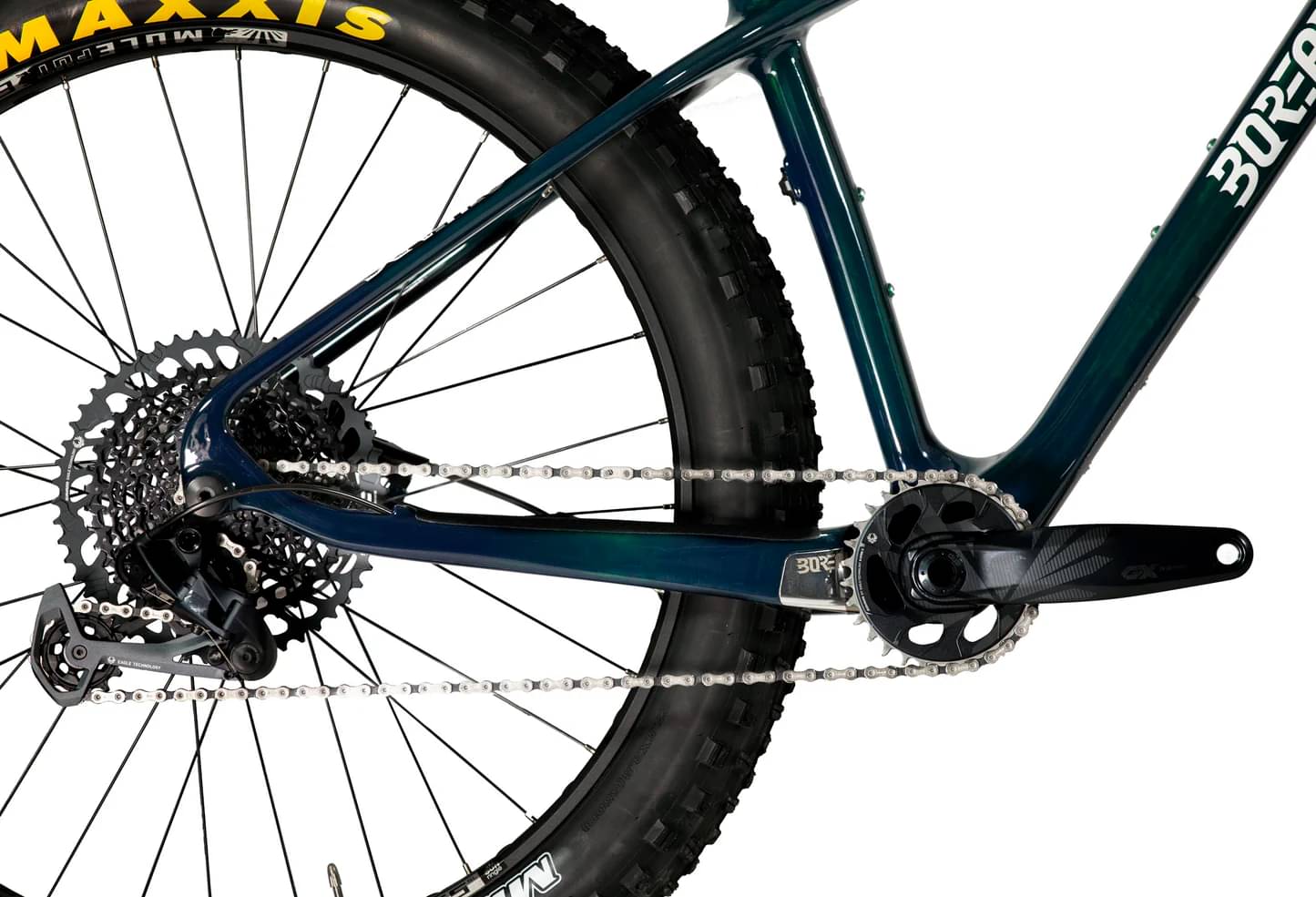

Drivetrain
Rear Derailleur
SRAM Eagle NX 12 Speed
Shift Levers
SRAM Eagle NX
Cassette
PG 1230 11-50
Crank
SRAM Eagle NX Alloy 175mm w/ SRAM X-SYNC 30T
Bottom Bracket
SRAM DUB 100mm
Chain
Eagle GX
Wheels
Front Hub
Borealis GEN 4 Black 15x150 Front / 12x197 Rear
Rear Hub
Borealis GEN 4 Black 15x150 Front / 12x197 Rear
Rims
Sun Ringle Mulefut V2 26x80 or 27.5x65
Spokes
Borealis Straight Gauge
Tires
Your Choice
Brakes
Brakes
SRAM Level T 2-piston OR SRAM G2 RS 4-Piston Hydraulic
Cockpit
Stem
Borealis 50mm
Handlebar
Borealis Carbon 35x760mm
Grips
Ergon GP10
Headset
FSA
Seat
Saddle
Borealis
Seatpost
Borealis Carbon 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.444 mm | 1.427 mm | 1.417 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Stack | 597 mm | 611 mm | 625 mm | 639 mm |
| Reach | 407 mm | 423 mm | 438 mm | 451 mm |
| Top Tube Length | 585 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 484 mm | 534 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 195 cm |
