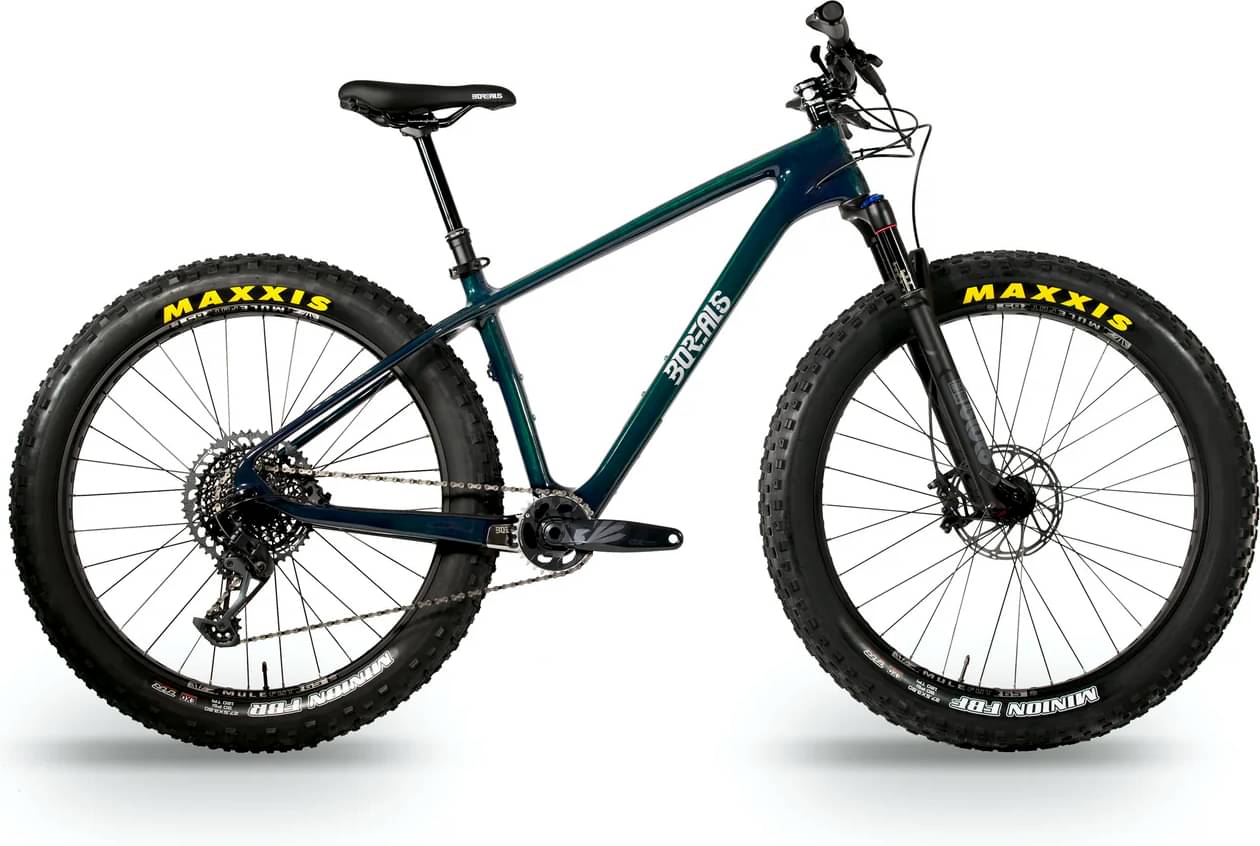

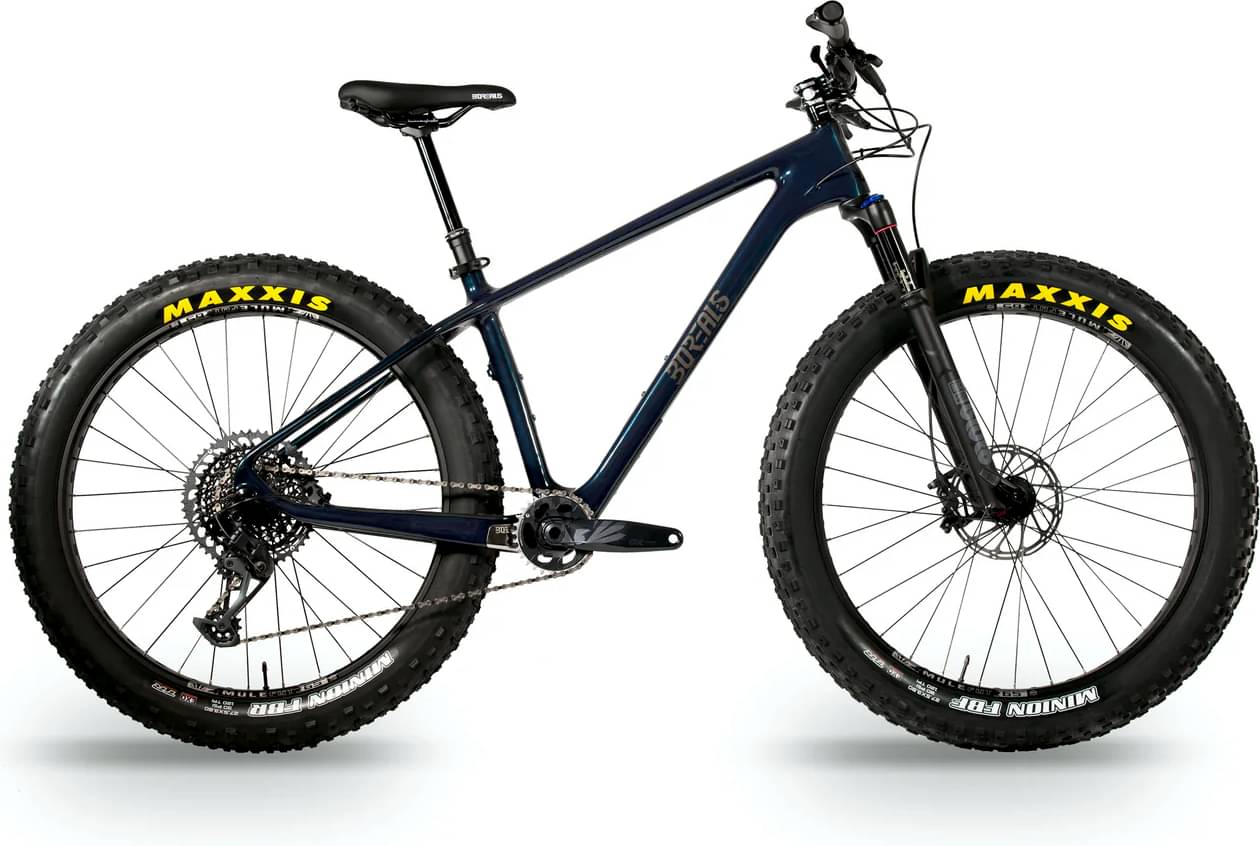

borealis Crestone Ultimate 2024
2024 Mountain
Estimate price |
3,119$
Weight | 14.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Manitou Mastodon Pro
-
Groupset GX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crestone (Carbon)
Suspension Fork
Manitou Mastodon Pro EXT 120mm
Drivetrain
Rear Derailleur
SRAM Eagle GX 12-Speed
Shift Levers
SRAM Eagle GX 12-Speed
Cassette
SRAM XG-1275 10-52T
Crank
SRAM Eagle GX Alloy 175mm w/ SRAM X-SYNC 30T
Bottom Bracket
SRAM DUB Threaded 100mm
Chain
SRAM EAGLE GX
Wheels
Front Hub
Borealis GEN 4 Black 15x150 Front / 12x197 Rear
Rear Hub
Borealis GEN 4 Black 15x150 Front / 12x197 Rear
Rims
Sun Ringle Mulefut V2 27.5x65
Spokes
Borealis Straight Gauge
Tires
Maxxis Minion FBF/FBR 27.5x3.8
Brakes
Brakes
SRAM G2 RS 4-Piston Hyrdraulic with SRAM Centerline 160mm Rotors
Cockpit
Stem
Borealis 50mm x 35mm
Handlebar
RaceFace NEXT SL 740x10mm OR Borealis Carbon (based on supply)
Grips
Borealis
Headset
FSA
Seat
Saddle
Borealis
Seatpost
KS Lev Integra w/ Southpaw Lever 125mm (SM, MD) or 150mm (LG, XL) travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.444 mm | 1.427 mm | 1.417 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Stack | 597 mm | 611 mm | 625 mm | 639 mm |
| Reach | 407 mm | 423 mm | 438 mm | 451 mm |
| Top Tube Length | 585 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 484 mm | 534 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 195 cm |
