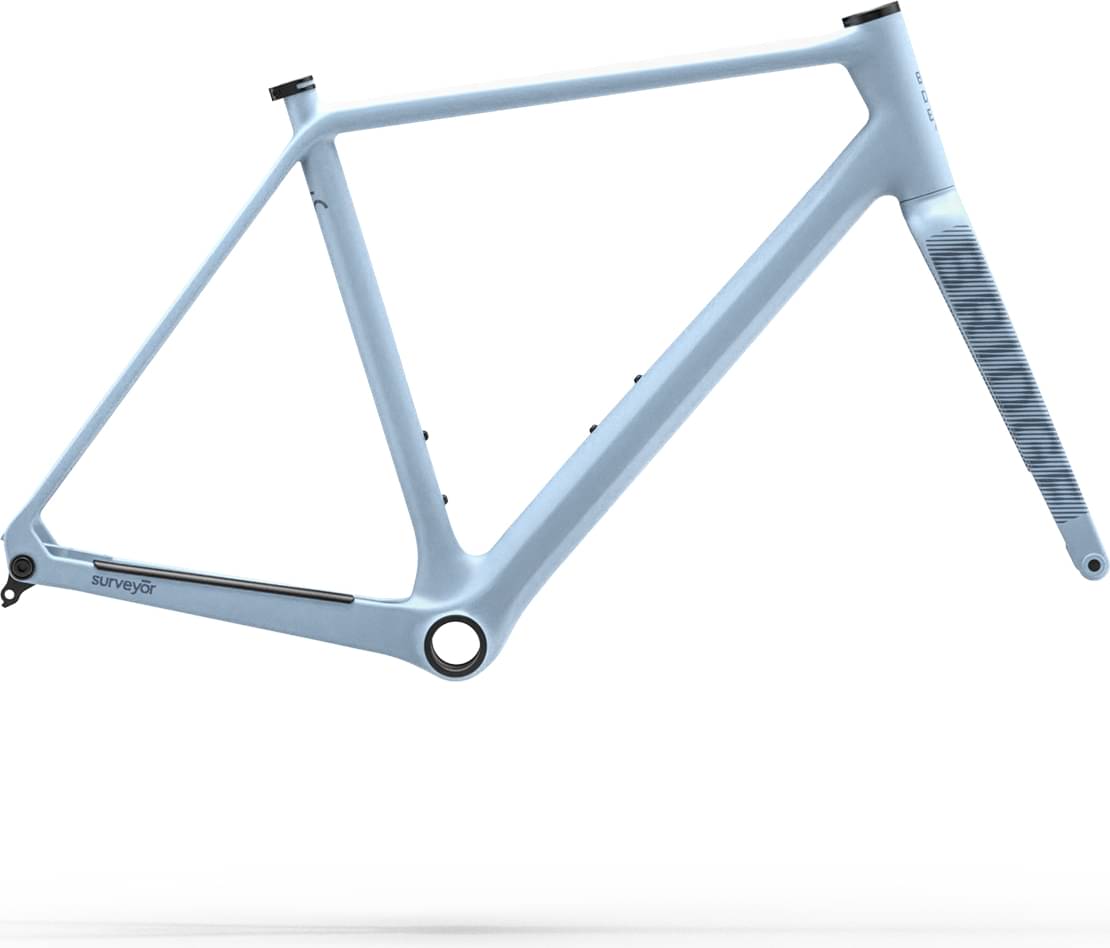

bridgebikeworks Bridge Bikeworks Surveyor Frameset 2022
2022 Road
Estimate price |
3,574$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 585.7 mm | 600.2 mm | 598.7 mm | 611.9 mm | 625.12 mm |
| Rake | 53.1 mm | 53.1 mm | 45.9 mm | 45.9 mm | 45.9 mm |
| Trail | 65.5 mm | 63.9 mm | 63.3 mm | 63.3 mm | 60 mm |
| Stack | 501.4 mm | 530.4 mm | 559.4 mm | 587.4 mm | 616.4 mm |
| Reach | 367.4 mm | 374.4 mm | 382.4 mm | 389.4 mm | 396.4 mm |
| Top Tube Length | 504.1 mm | 518.8 mm | 539.9 mm | 560.3 mm | 575.6 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 459.4 mm | 487 mm | 532.2 mm | 559.8 mm | 587.9 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 90.1 mm | 119.7 mm | 145.3 mm | 173.6 mm | 203 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 980 mm | 995 mm | 994 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Surveyor Frameset is part of the Bridgebikeworks Surveyor model. 12 frames variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance frames average price
According to our math, the average price for a trustworthy Endurance frame is 1905$. However, you could also get a good Endurance frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2022 and its price was 3615$. Doing a quick comparison, we notice that Surveyor Frameset price is 89.76% more expensive than the average cost of an Endurance frame.
Surveyor Frameset components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
