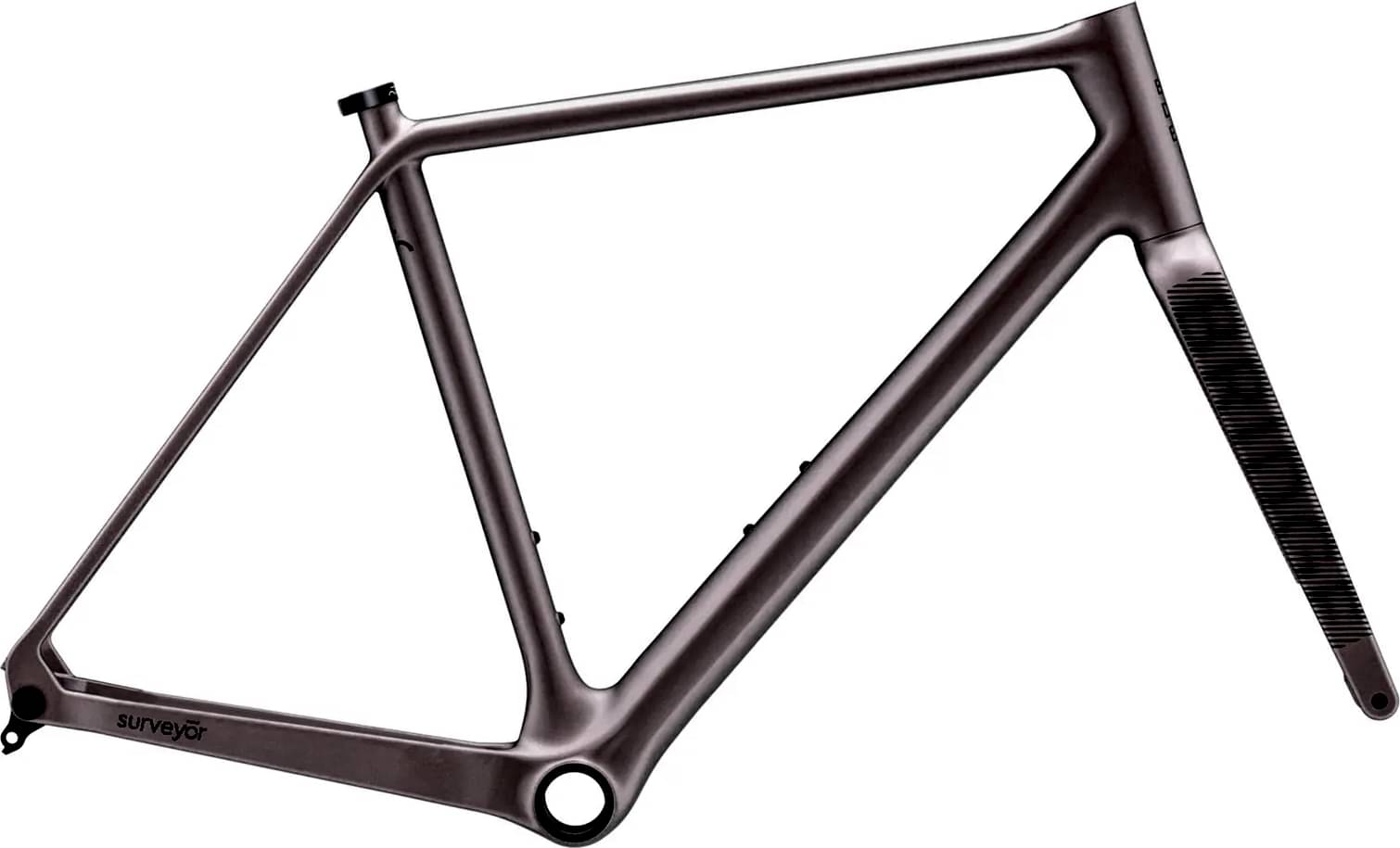

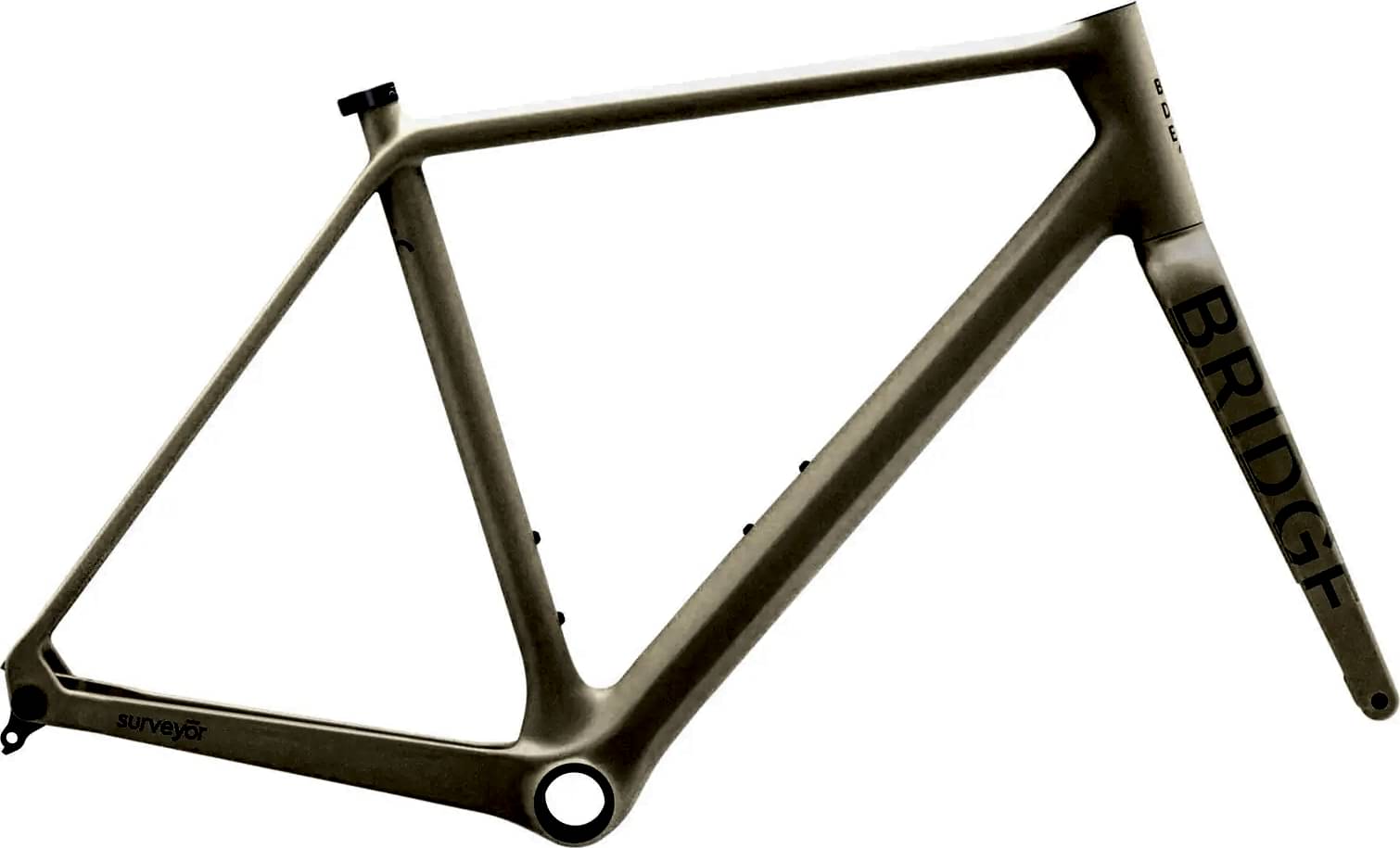

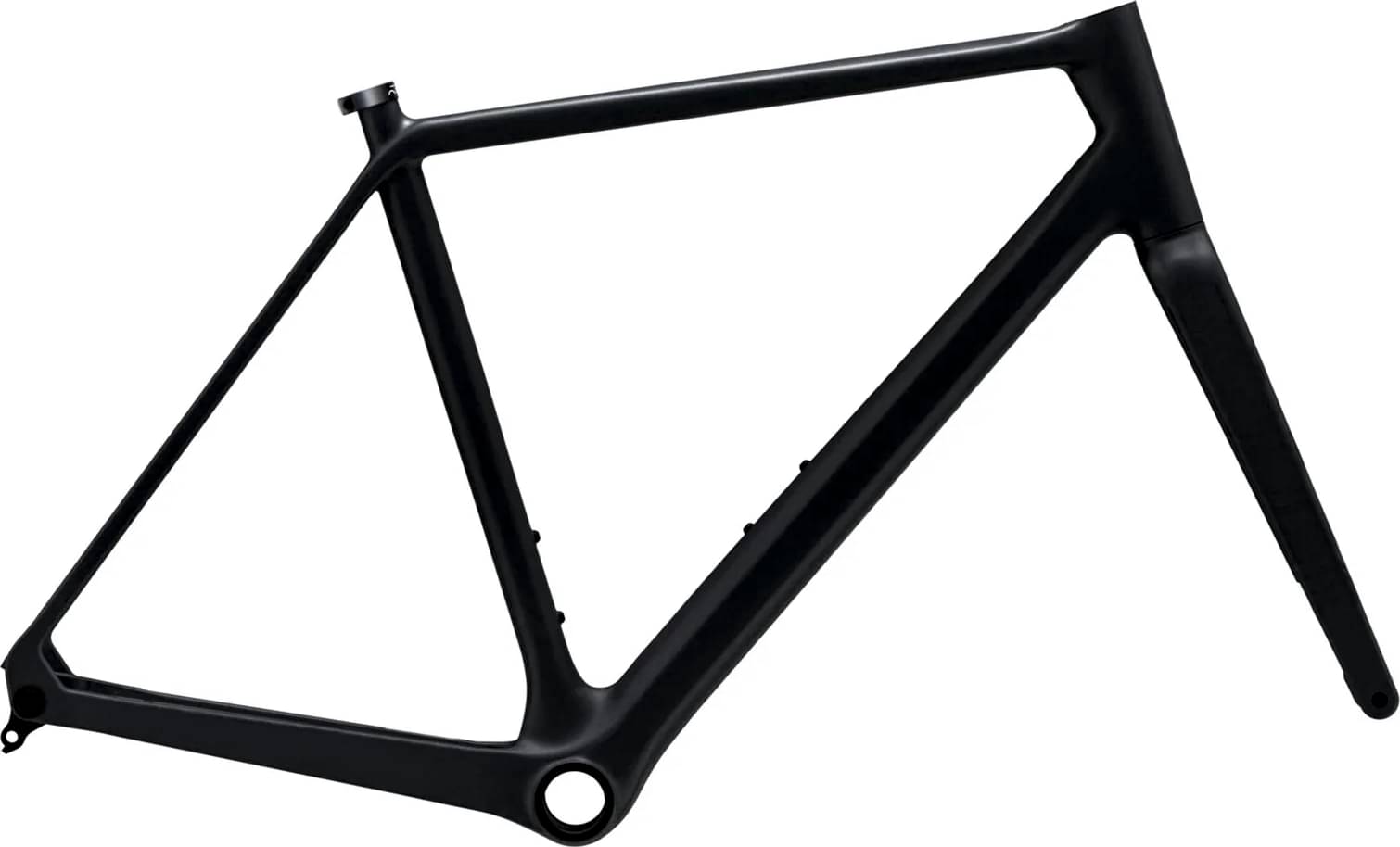

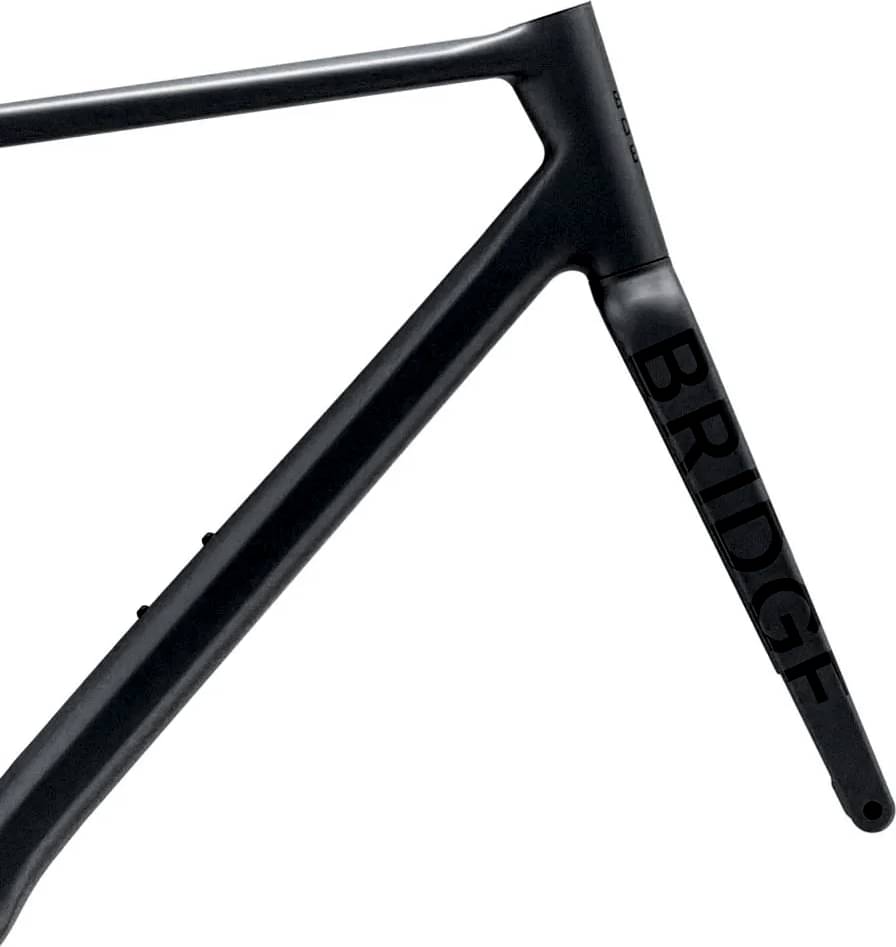

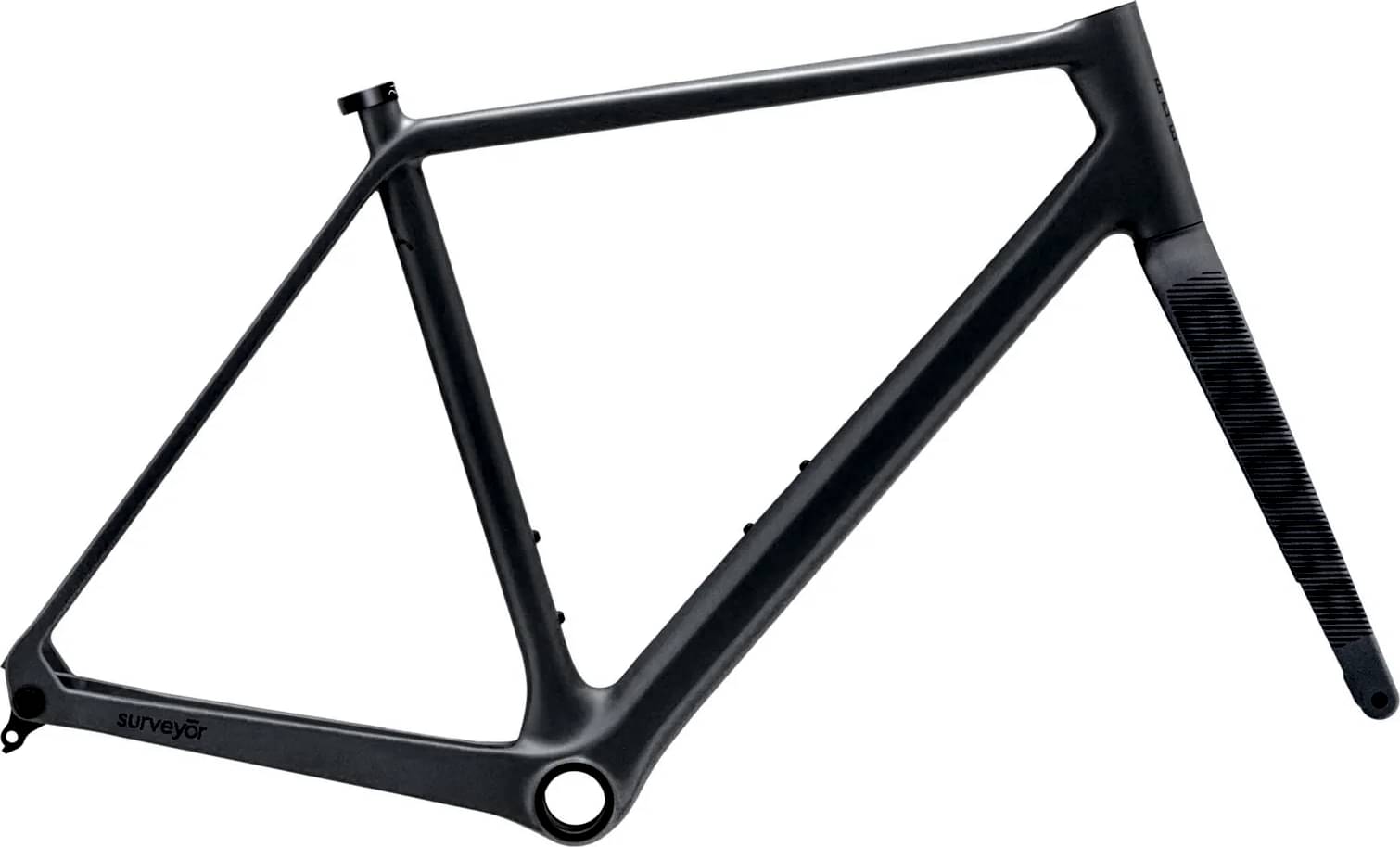

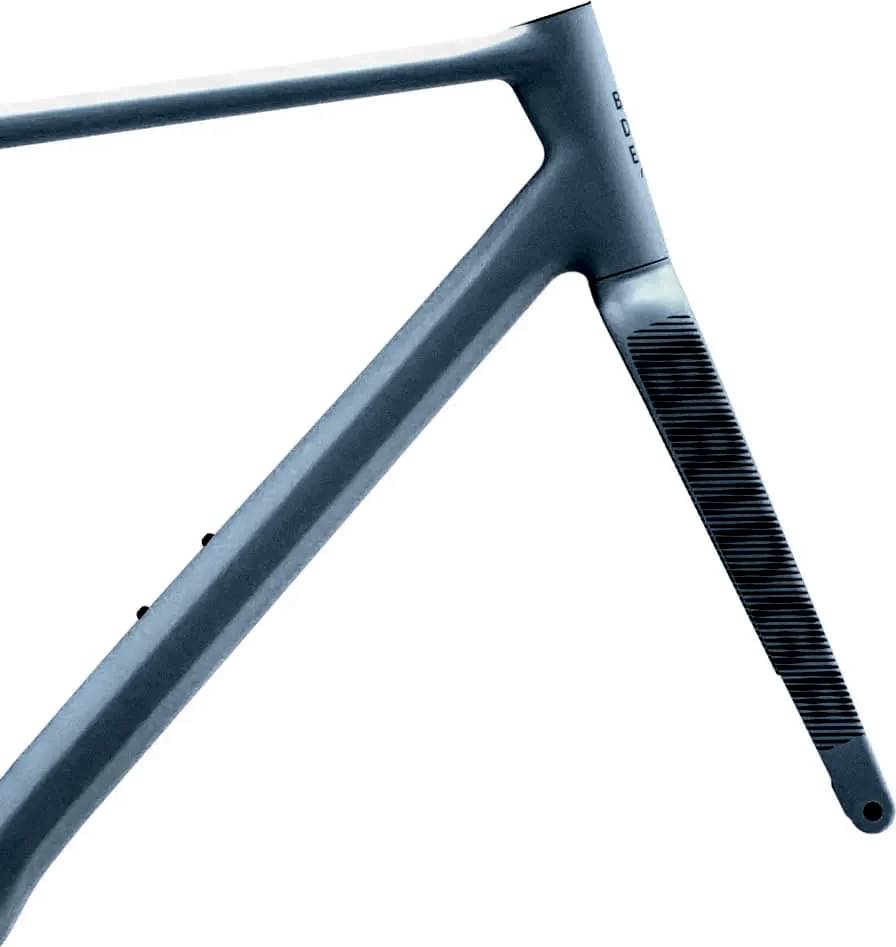

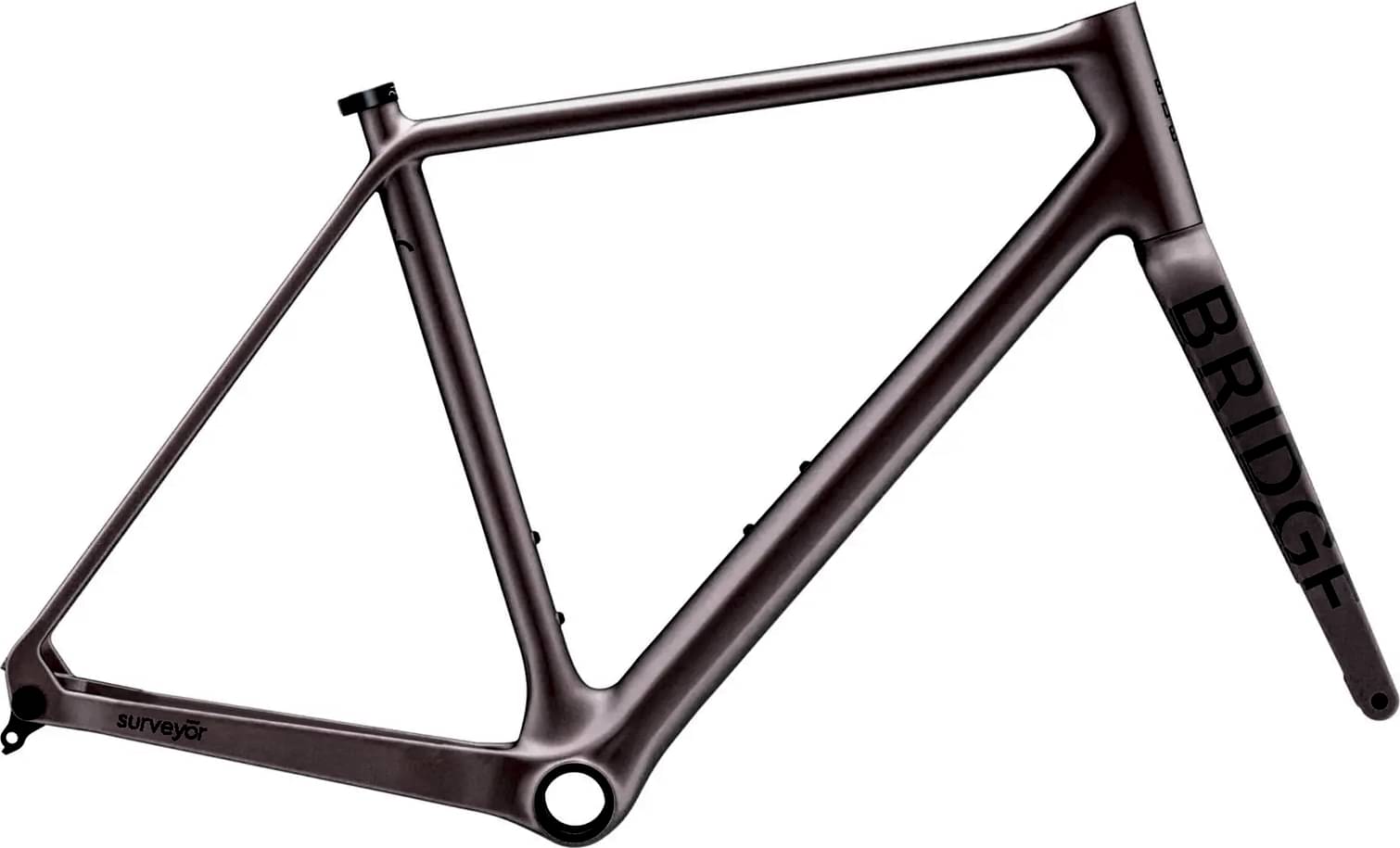

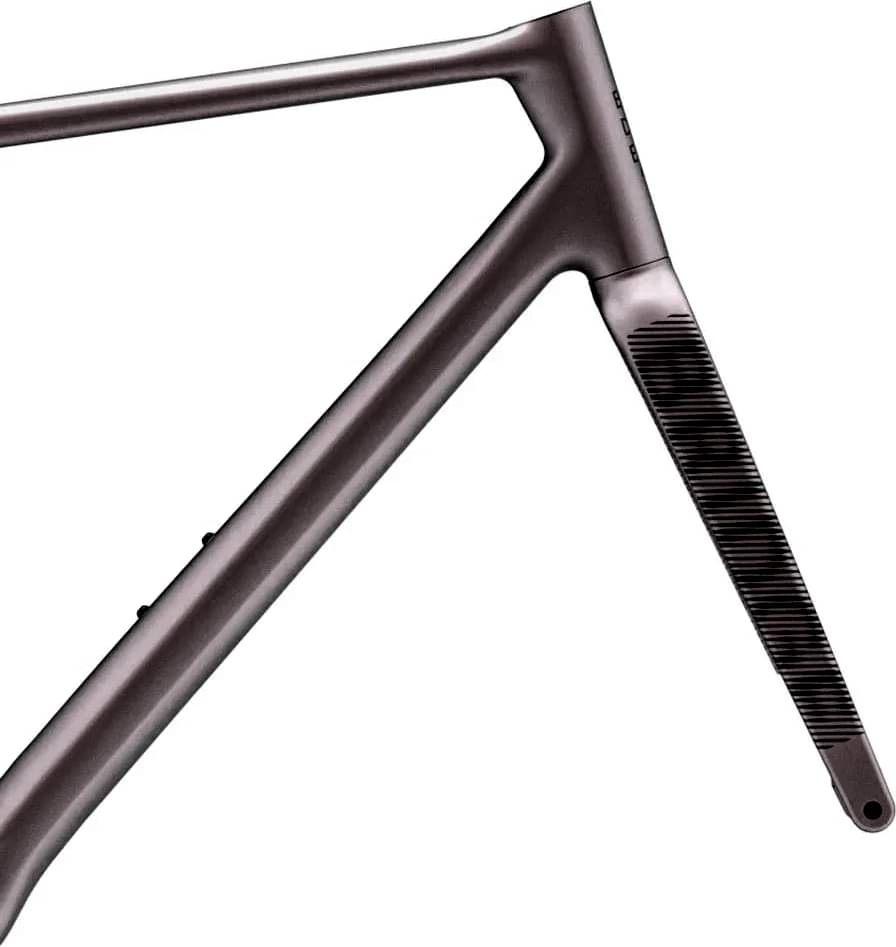

bridgebikeworks Bridge Bikeworks Surveyor Frameset 2024

2024 Road

Estimate price | 3,931$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Endurance
Frame Carbon
Suspension Rigid

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

BRIDGE Surveyor

Suspension Fork

BRIDGE All-road Integrated

Cockpit

Headset

FSA No.69 SRS

Seat

Seatpost

BRIDGE Bike Works

Fit data

Geometry

Numbers for sizing and ride feel.

Size	51cm	53cm	55cm	57cm	59cm
Stack Reach Ratio	1.356 mm	1.407 mm	1.453 mm	1.497 mm	1.543 mm
Bottom Bracket Height	256 mm	256 mm	258 mm	258 mm	258 mm
Front Center	585.7 mm	600.2 mm	598.7 mm	611.9 mm	625.1 mm
Rake	53 mm	53 mm	46 mm	46 mm	46 mm
Trail	65.5 mm	63.9 mm	63.3 mm	61.7 mm	60 mm
Stack	510 mm	539 mm	568 mm	596 mm	625 mm
Reach	376 mm	383 mm	391 mm	398 mm	405 mm
Top Tube Length	512.7 mm	527.4 mm	548.5 mm	568.9 mm	584.2 mm
Seat Tube Angle	74 °	74 °	73.5 °	73 °	73 °
Seat Tube Length	459.4 mm	487 mm	532.2 mm	559.8 mm	587.9 mm
Head Tube Angle	71 °	71.3 °	72.5 °	72.8 °	73 °
Head Tube Length	90.1 mm	119.7 mm	145.3 mm	173.6 mm	203 mm
Chainstay Length	417 mm	417 mm	417 mm	417 mm	417 mm
Wheelbase	989 mm	1004 mm	1003 mm	1016 mm	1029 mm
Bottom Bracket Drop	80 mm	80 mm	78 mm	78 mm	78 mm
Wheels	700	700	700	700	700
