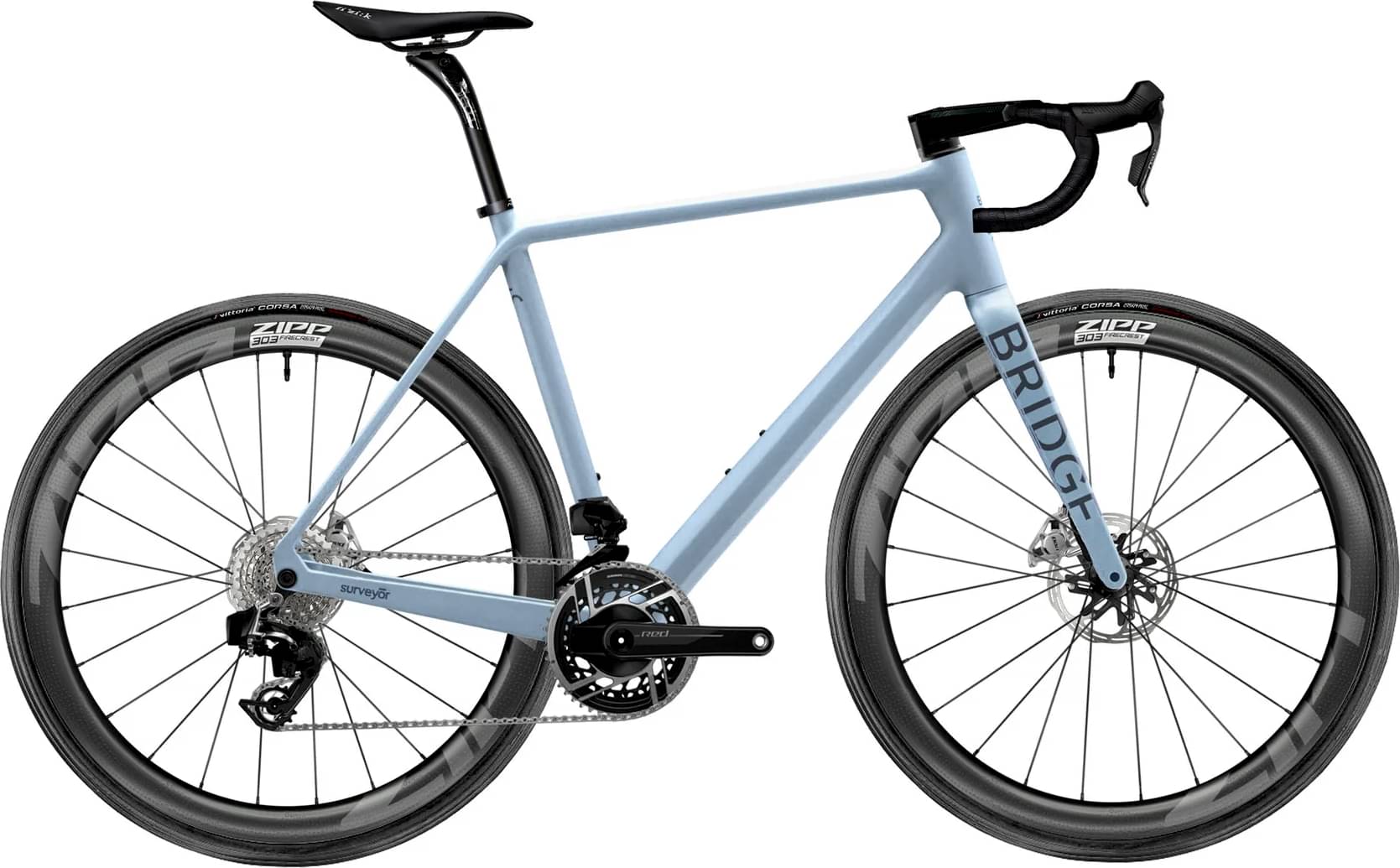

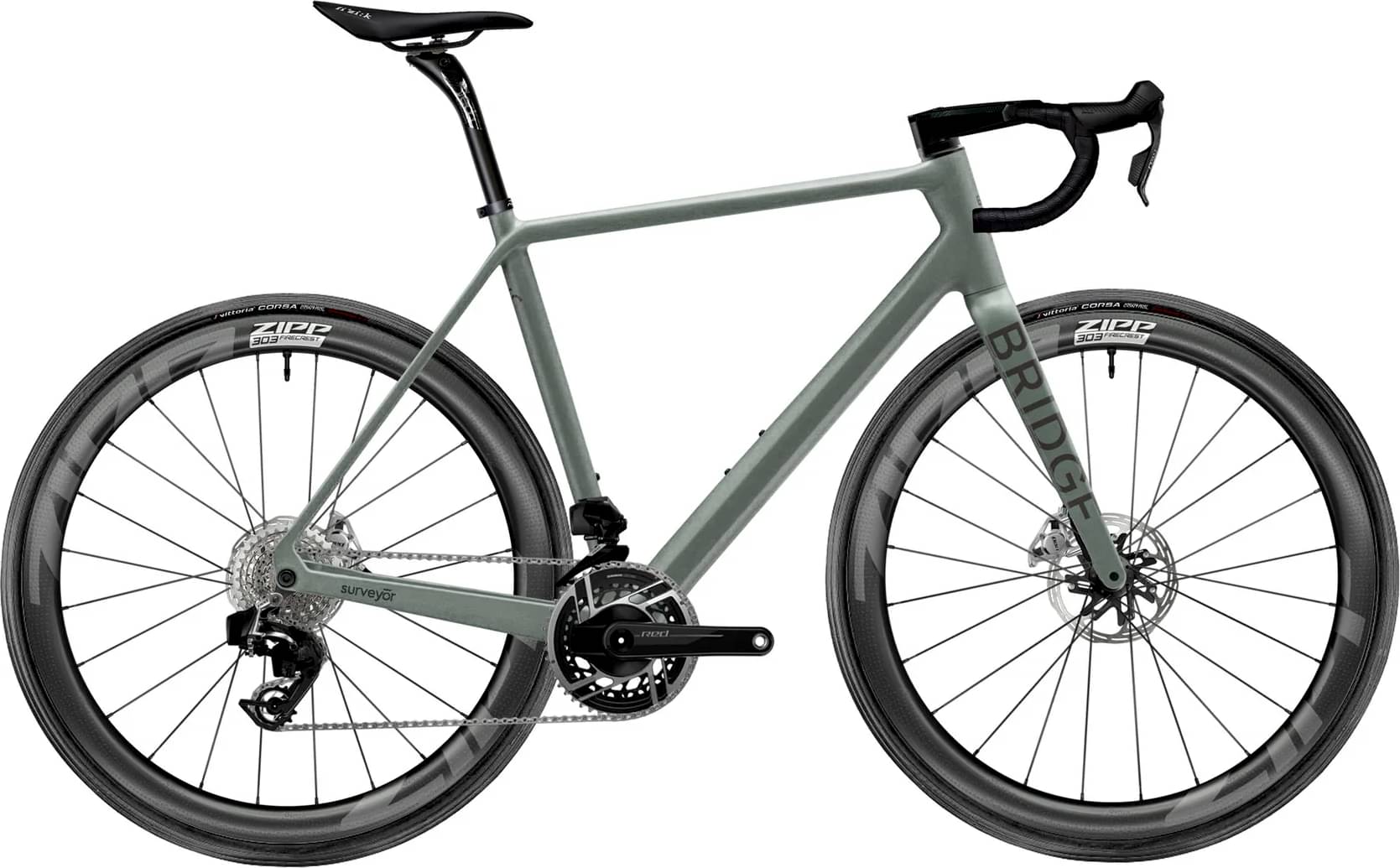

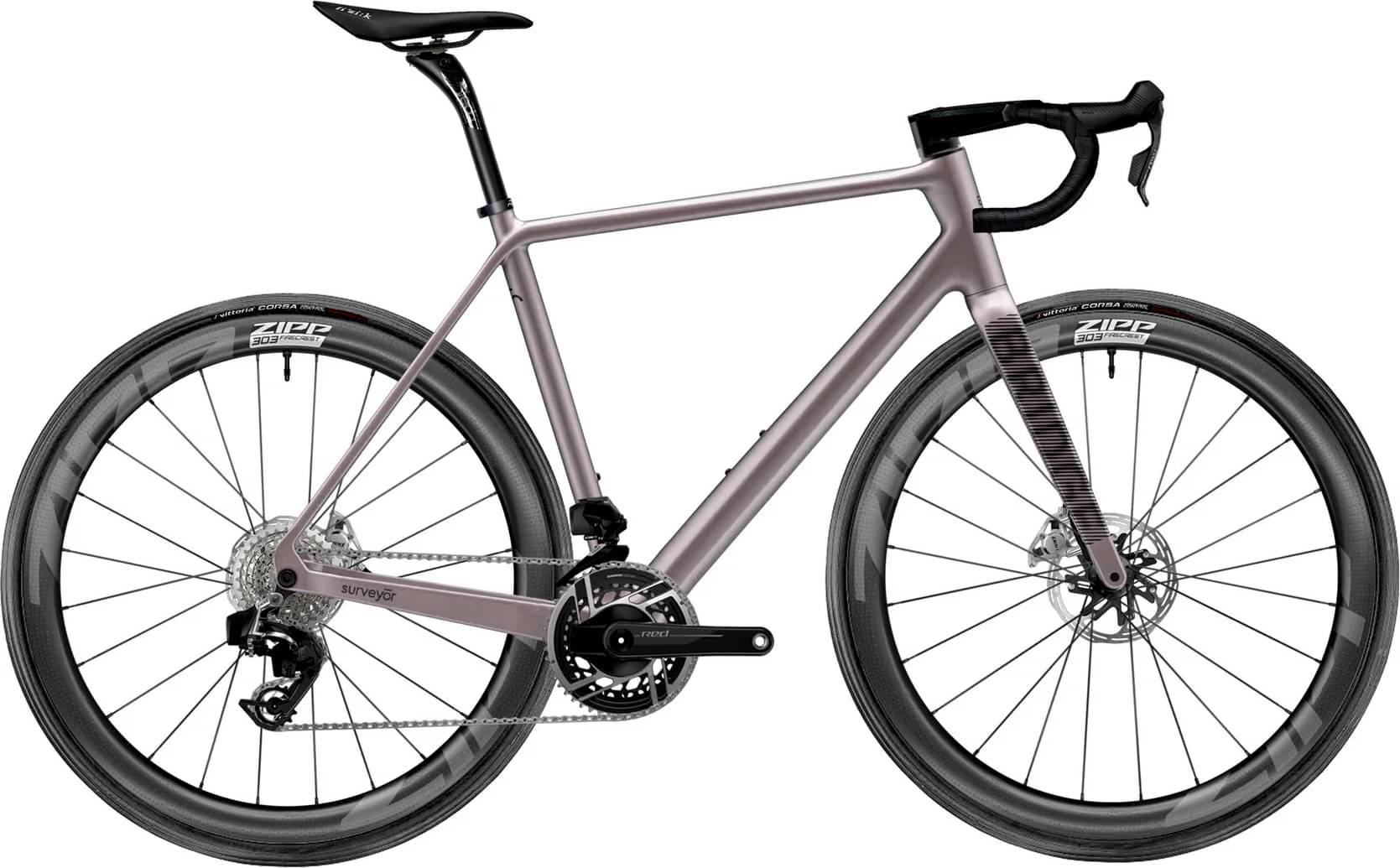

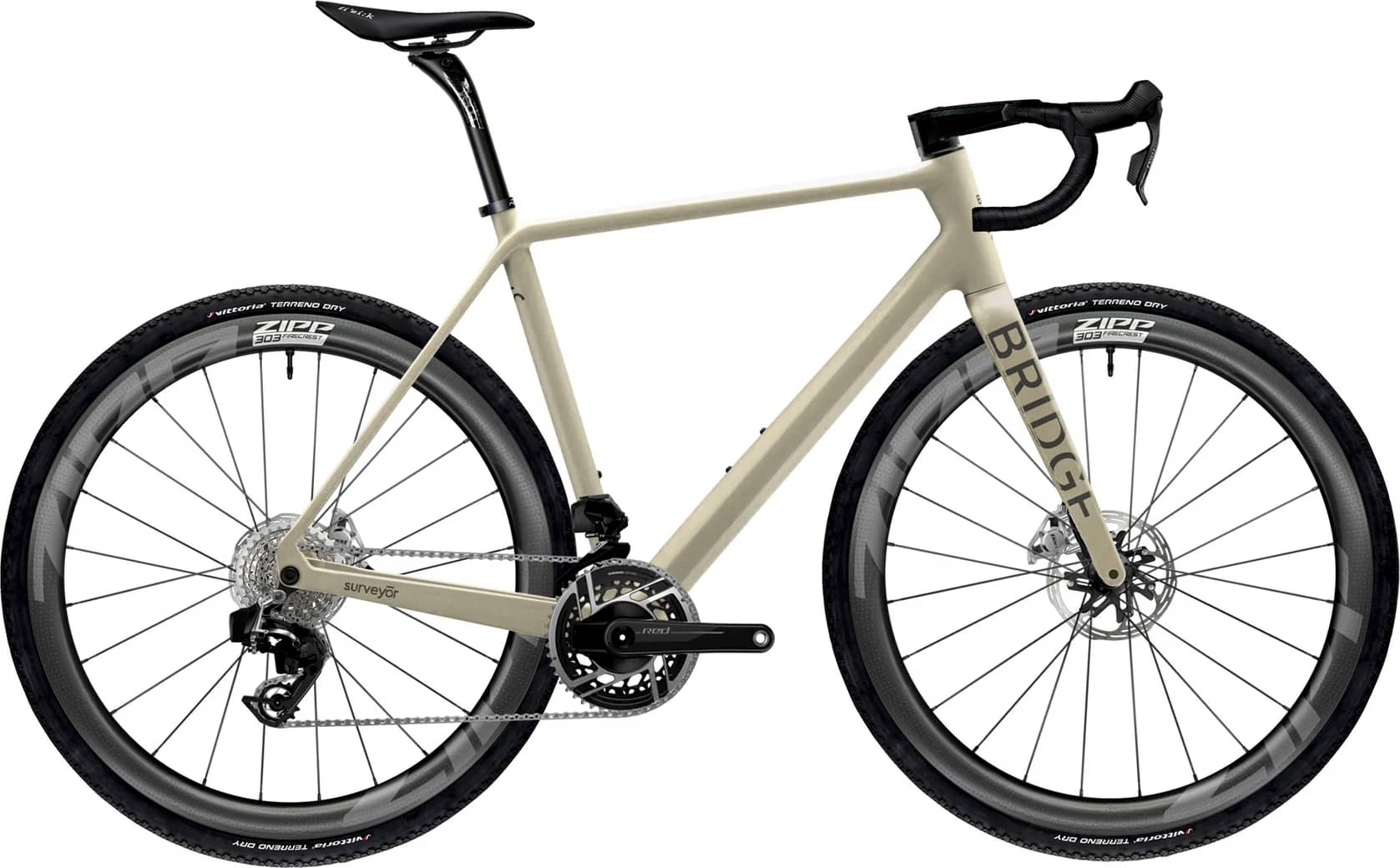

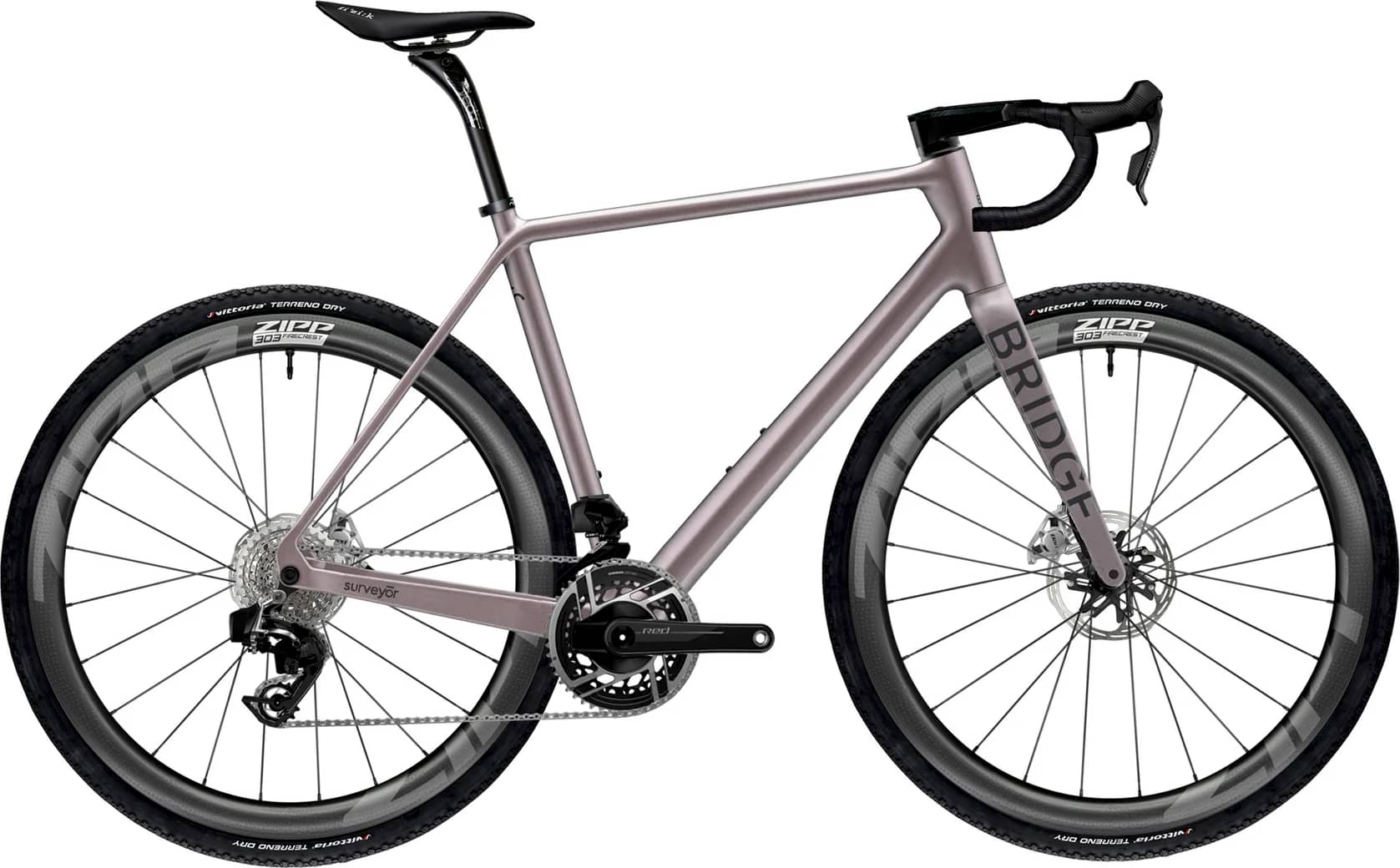

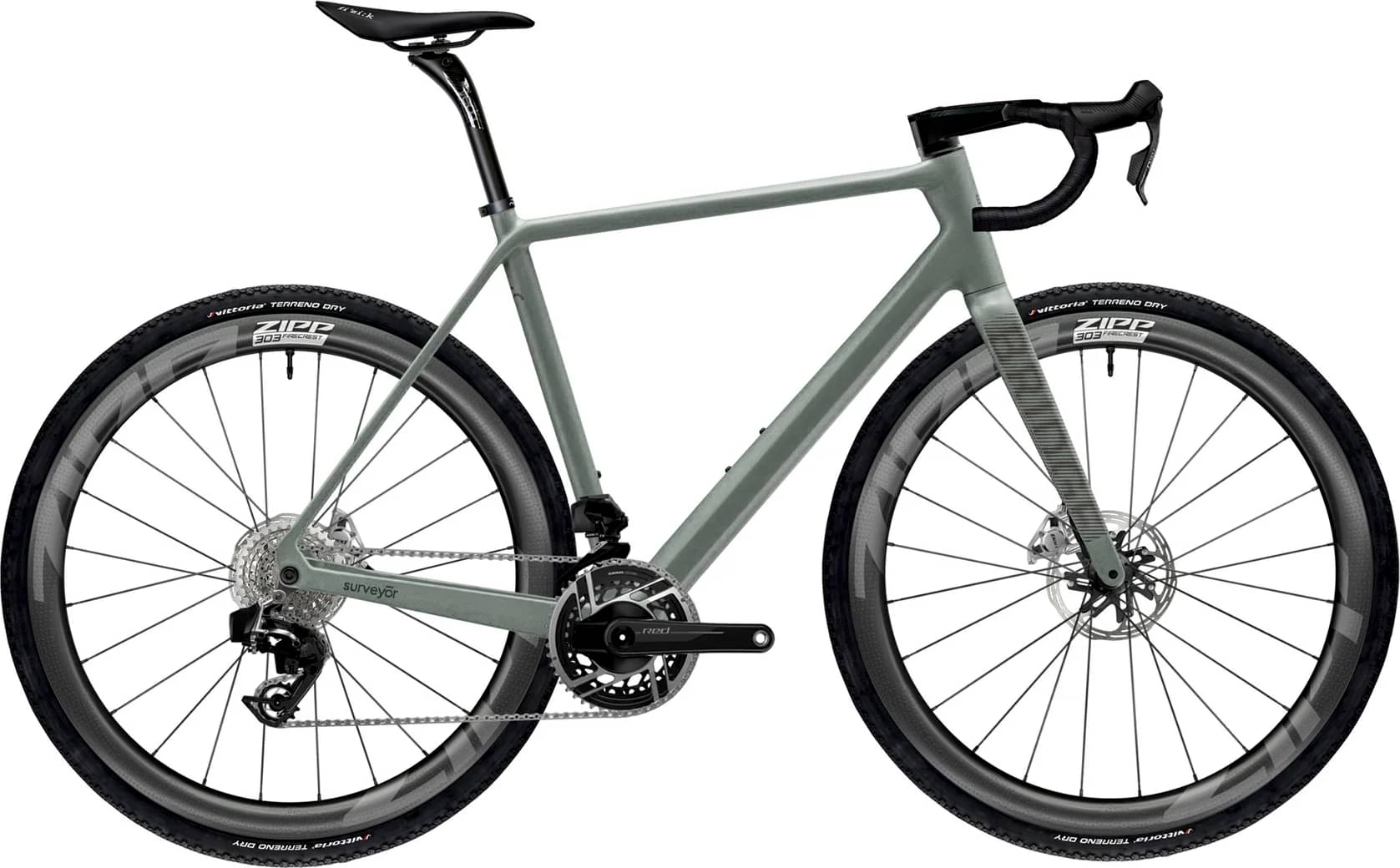

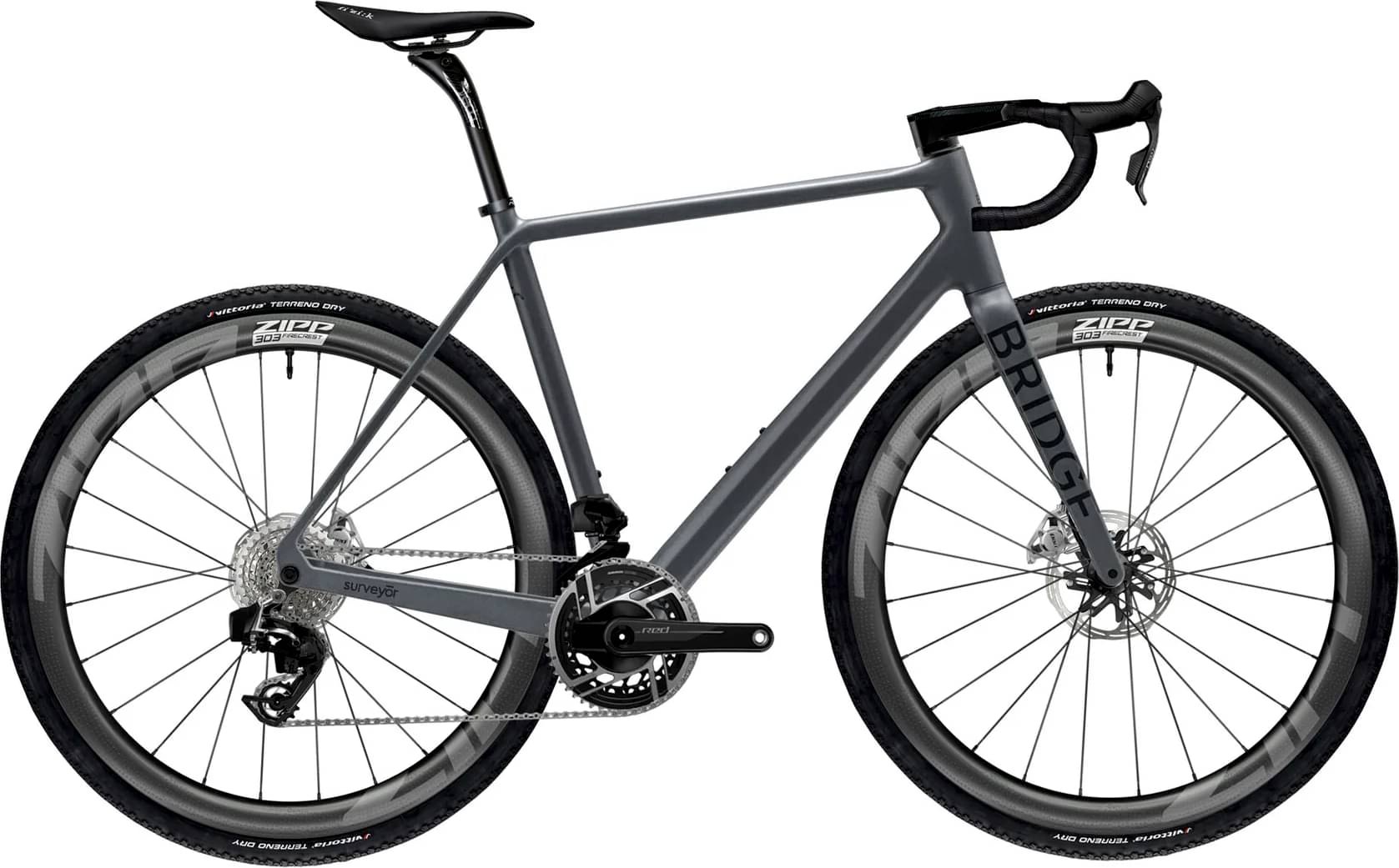

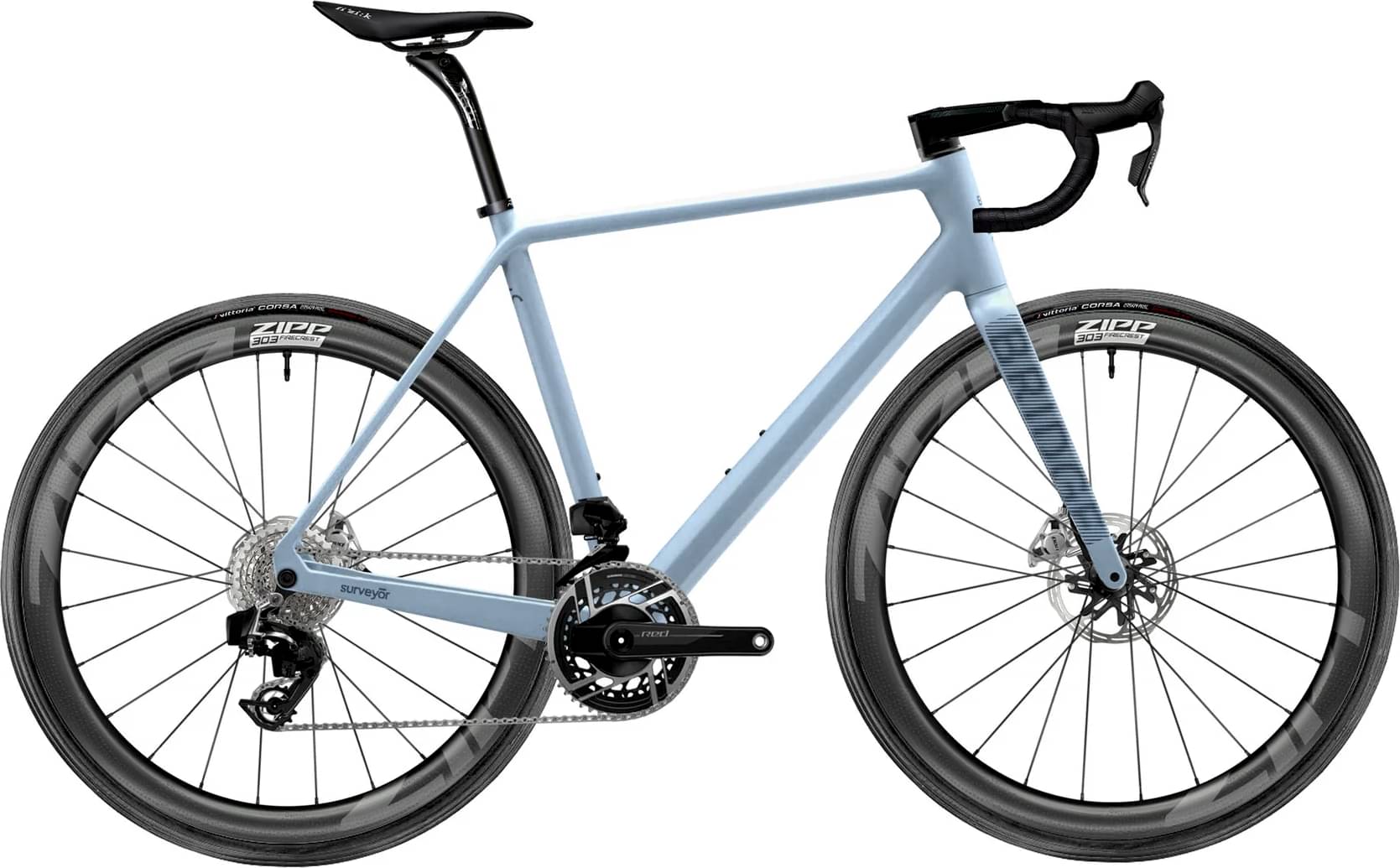

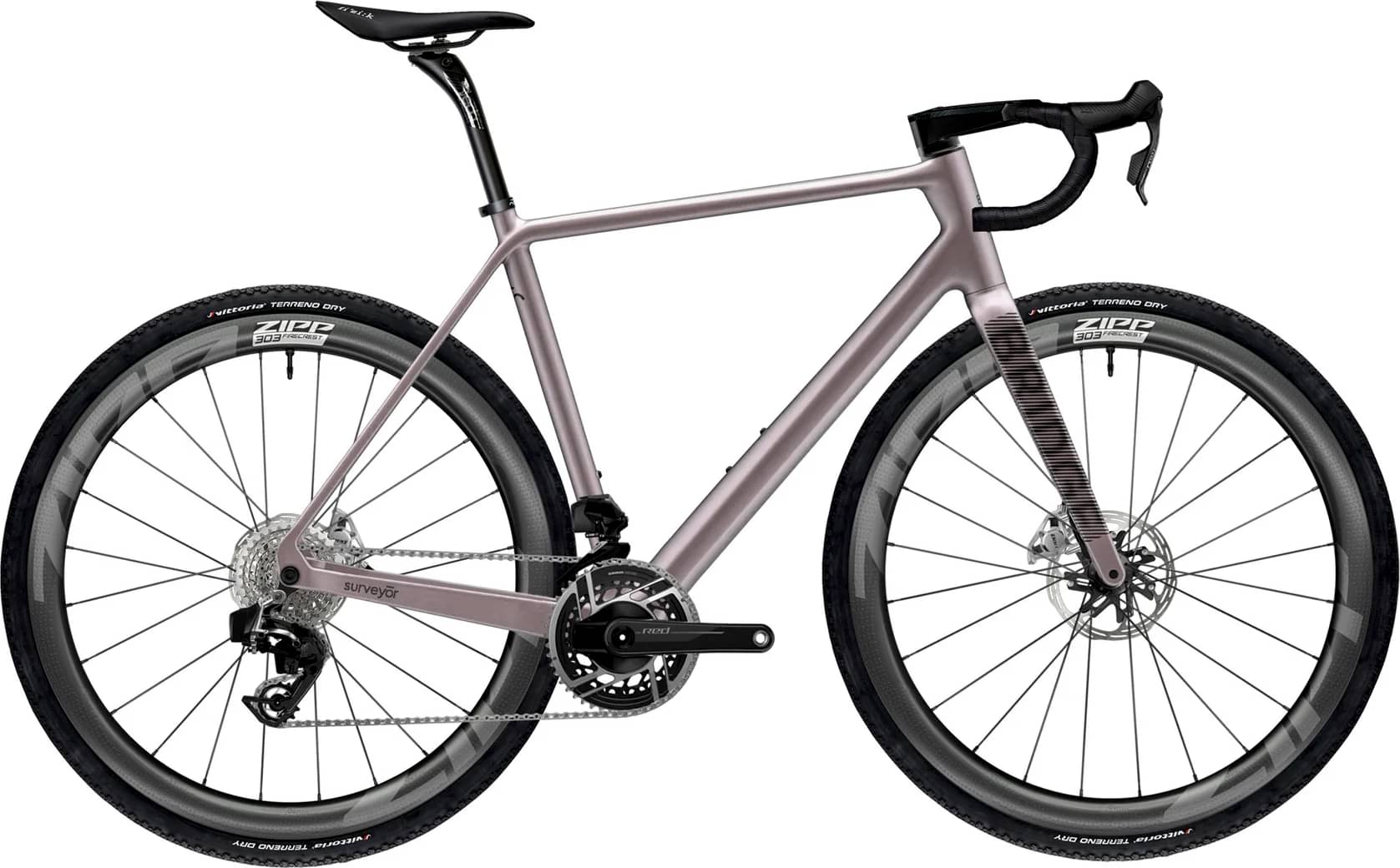

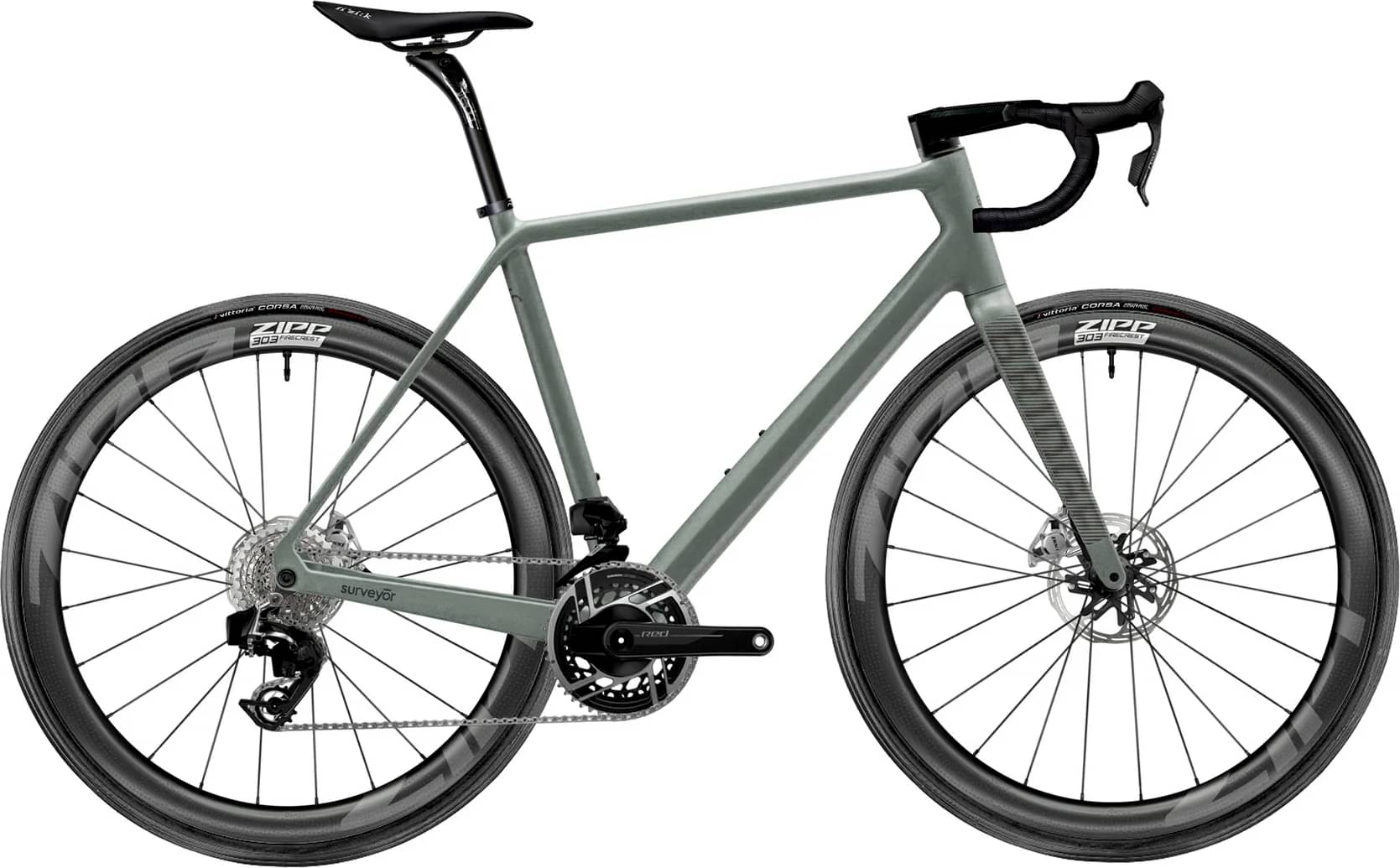

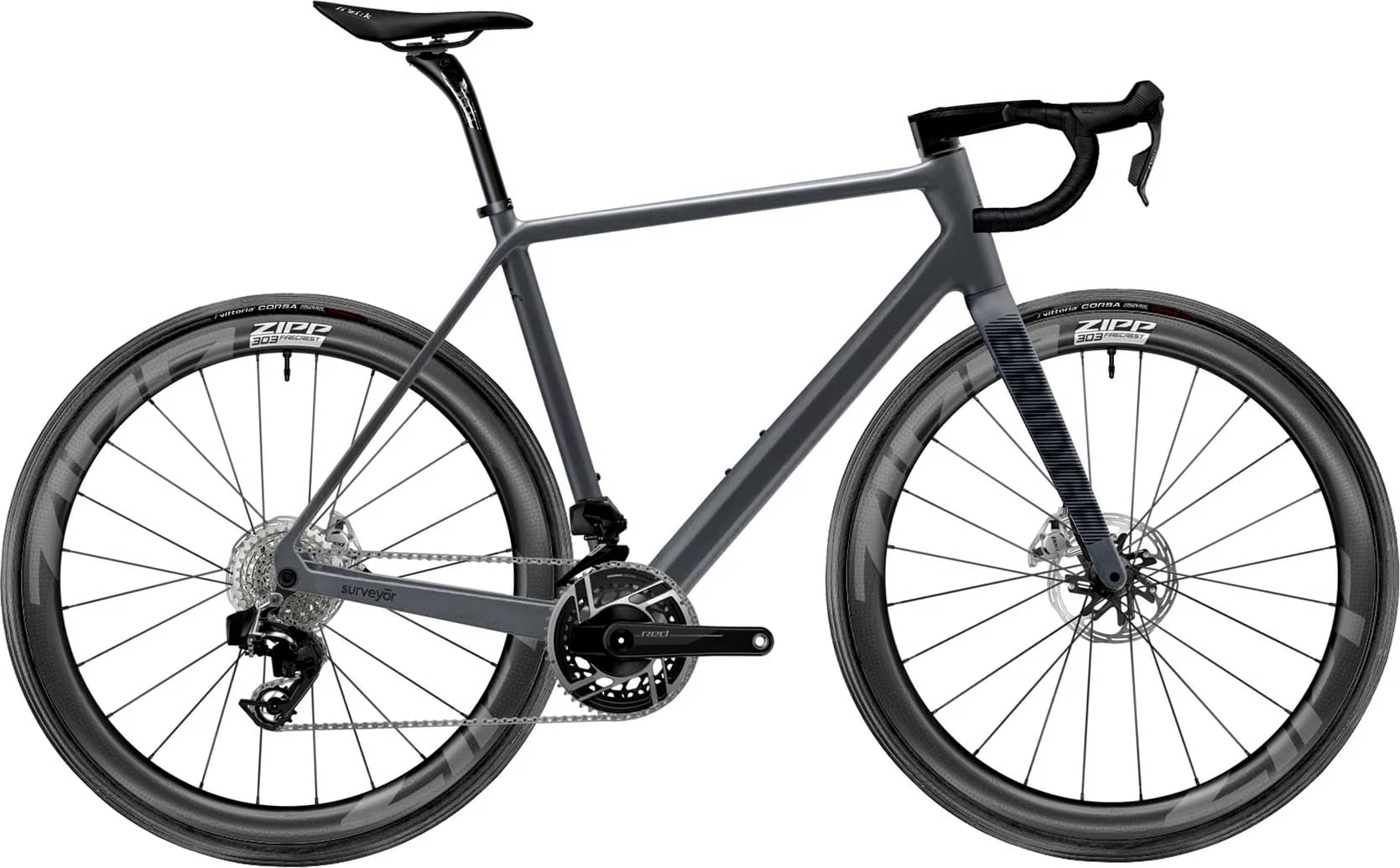

bridgebikeworks Bridge Bikeworks Surveyor – Red AXS 2024
2024 Road
Estimate price |
10,722$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

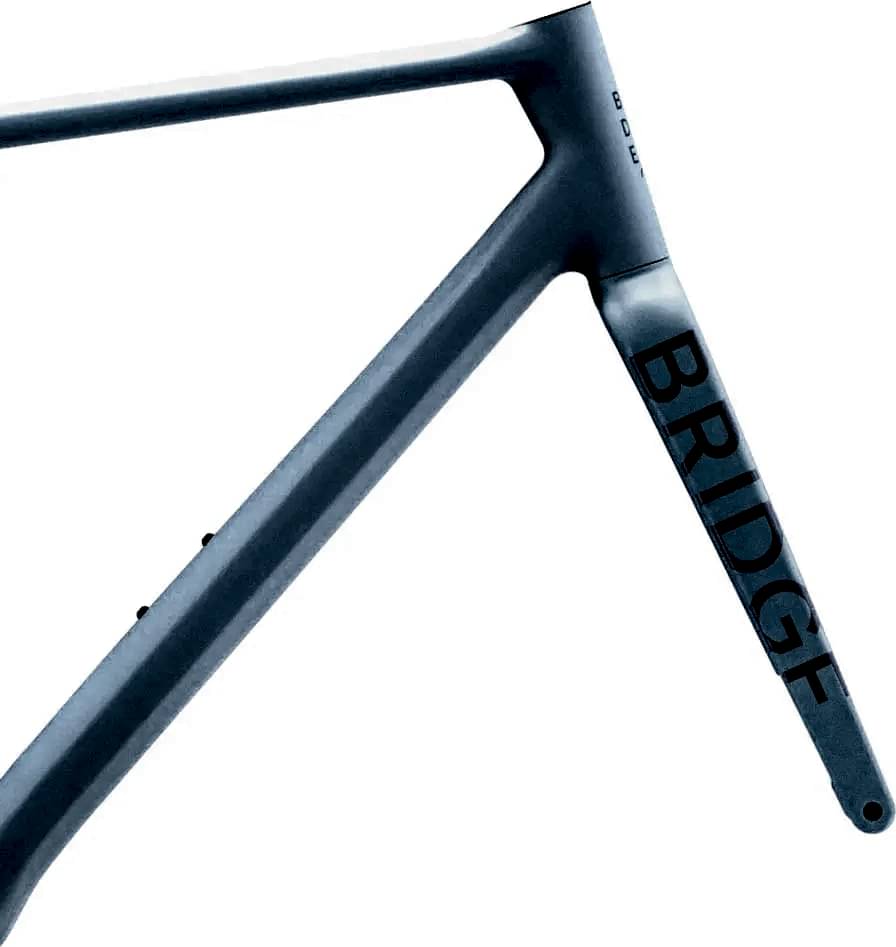

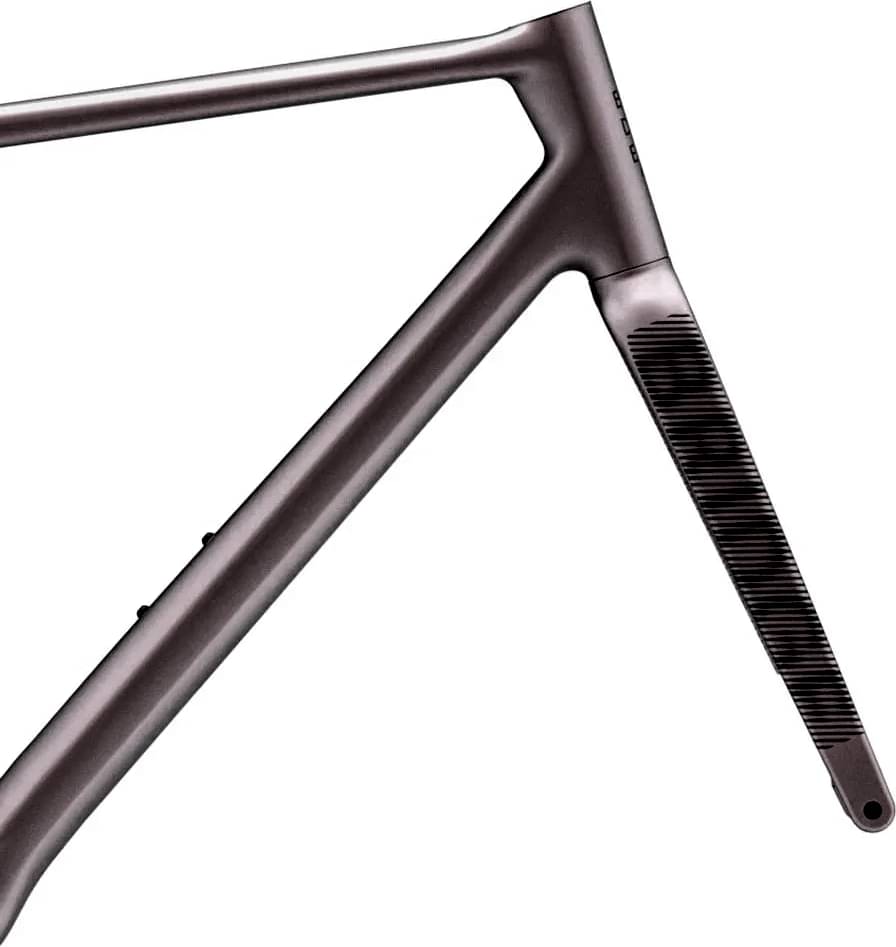

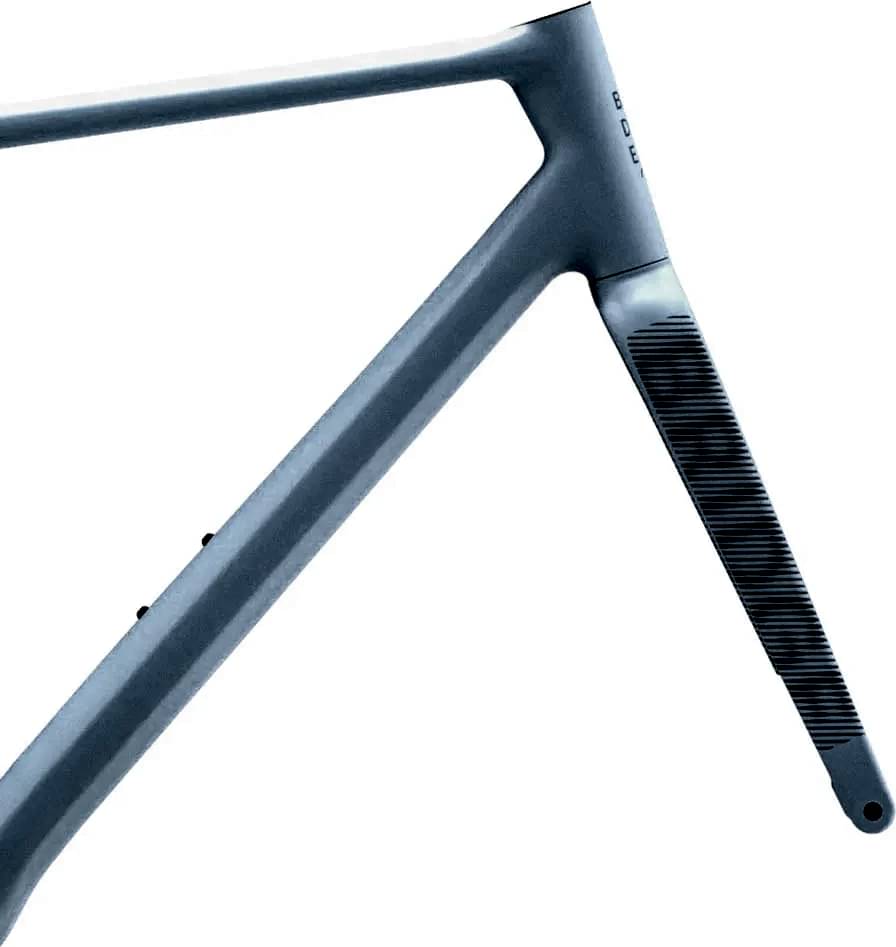

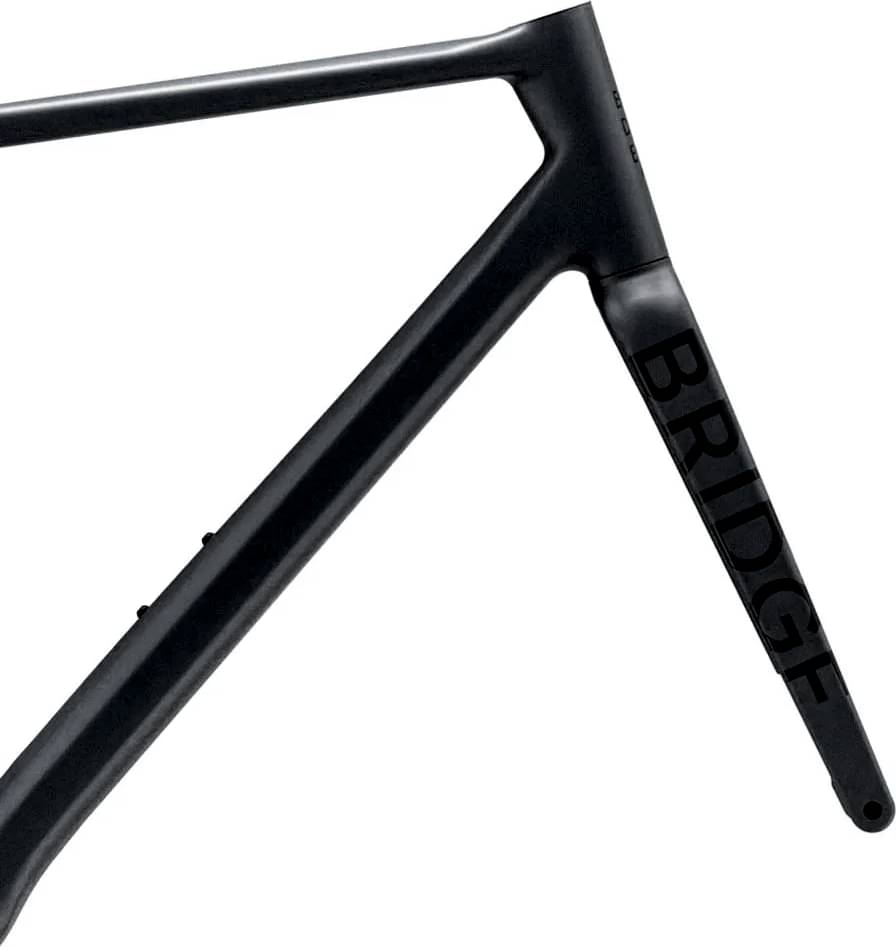

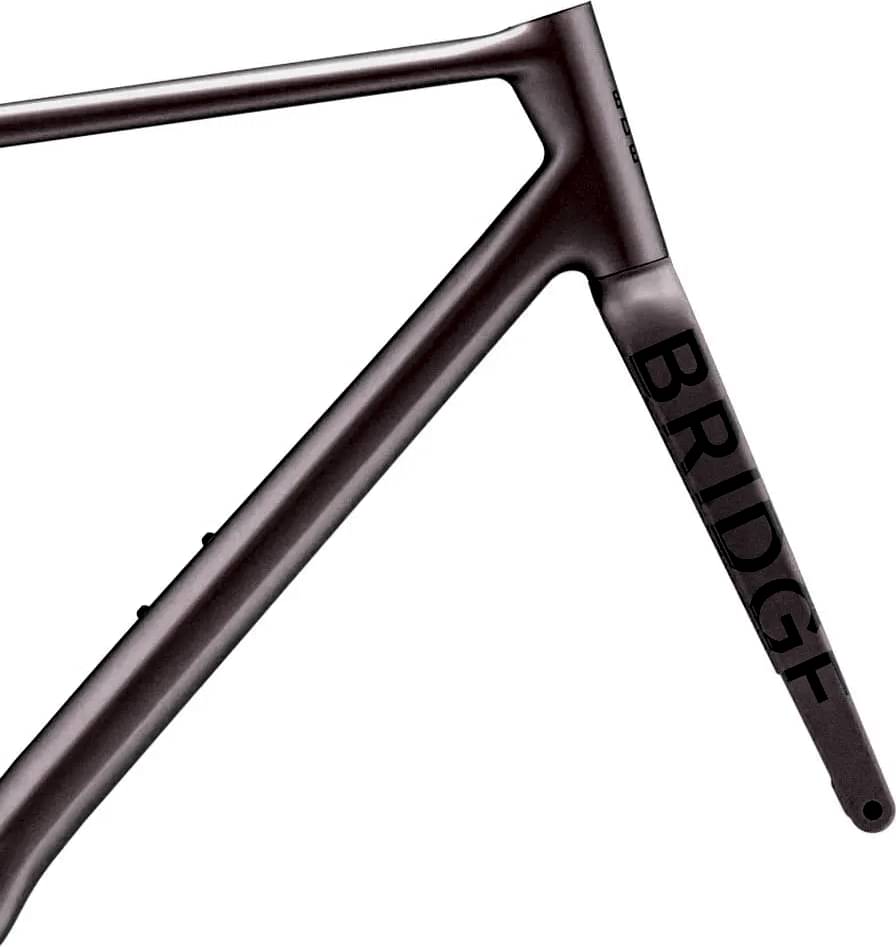

Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
2024 SRAM Red AXS
Cassette
SRAM Red
Bottom Bracket
White Industries T47/86
Wheels
Rims
Zipp 303 Firecrest
Tires
Vittoria Tires
Brakes
Brakes
Rim
Cockpit
Stem
Integrated
Handlebar
Deda Alanera Integrated
Seat
Saddle
Fizik Vento Argo R5
Seatpost
Deda Superzero 25
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.407 mm | 1.453 mm | 1.497 mm | 1.543 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 585.7 mm | 600.2 mm | 598.7 mm | 611.9 mm | 625.1 mm |
| Rake | 53 mm | 53 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65.5 mm | 63.9 mm | 63.3 mm | 61.7 mm | 60 mm |
| Stack | 510 mm | 539 mm | 568 mm | 596 mm | 625 mm |
| Reach | 376 mm | 383 mm | 391 mm | 398 mm | 405 mm |
| Top Tube Length | 512.7 mm | 527.4 mm | 548.5 mm | 568.9 mm | 584.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 459.4 mm | 487 mm | 532.2 mm | 559.8 mm | 587.9 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 90.1 mm | 119.7 mm | 145.3 mm | 173.6 mm | 203 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 989 mm | 1004 mm | 1003 mm | 1016 mm | 1029 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
