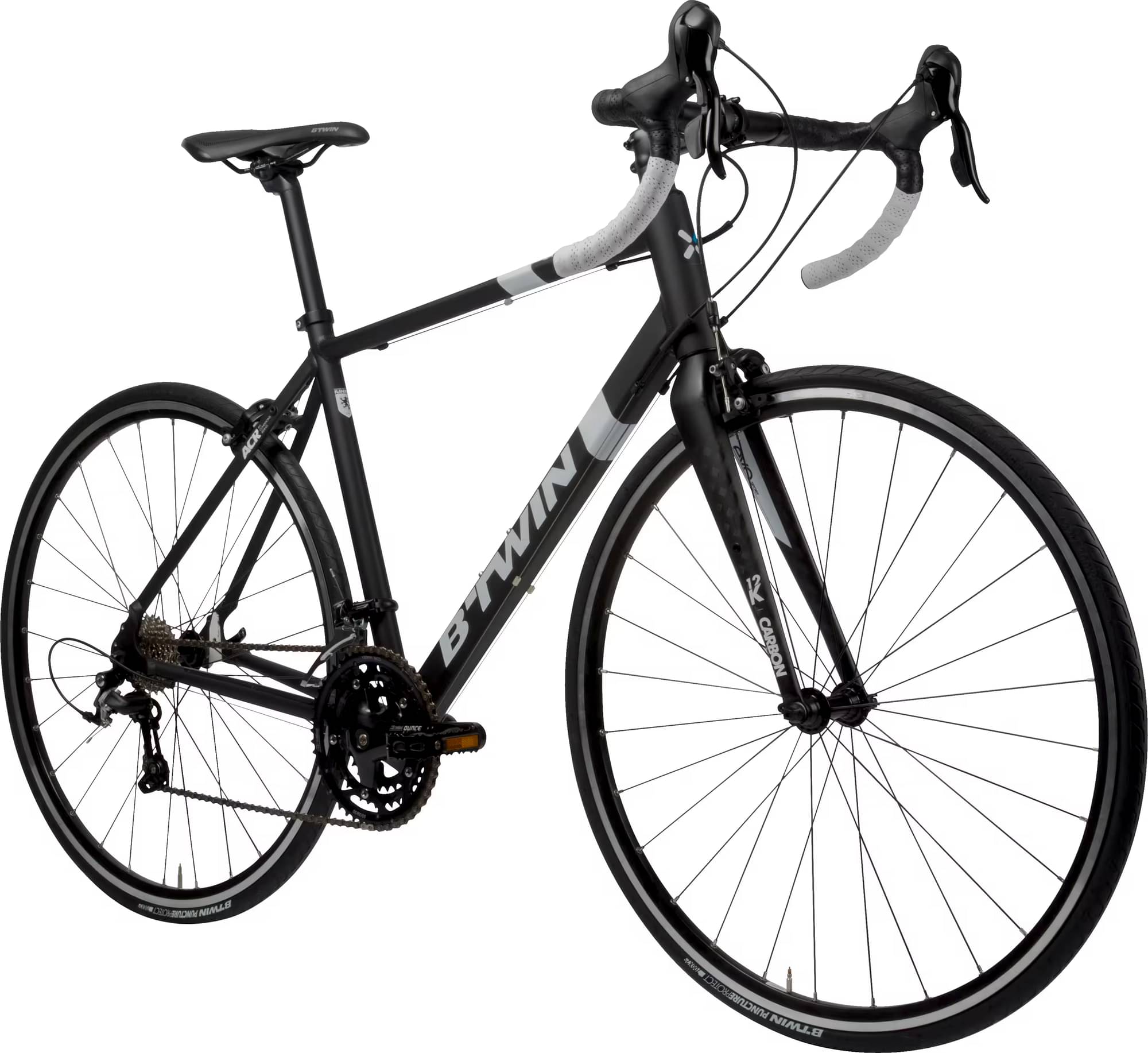

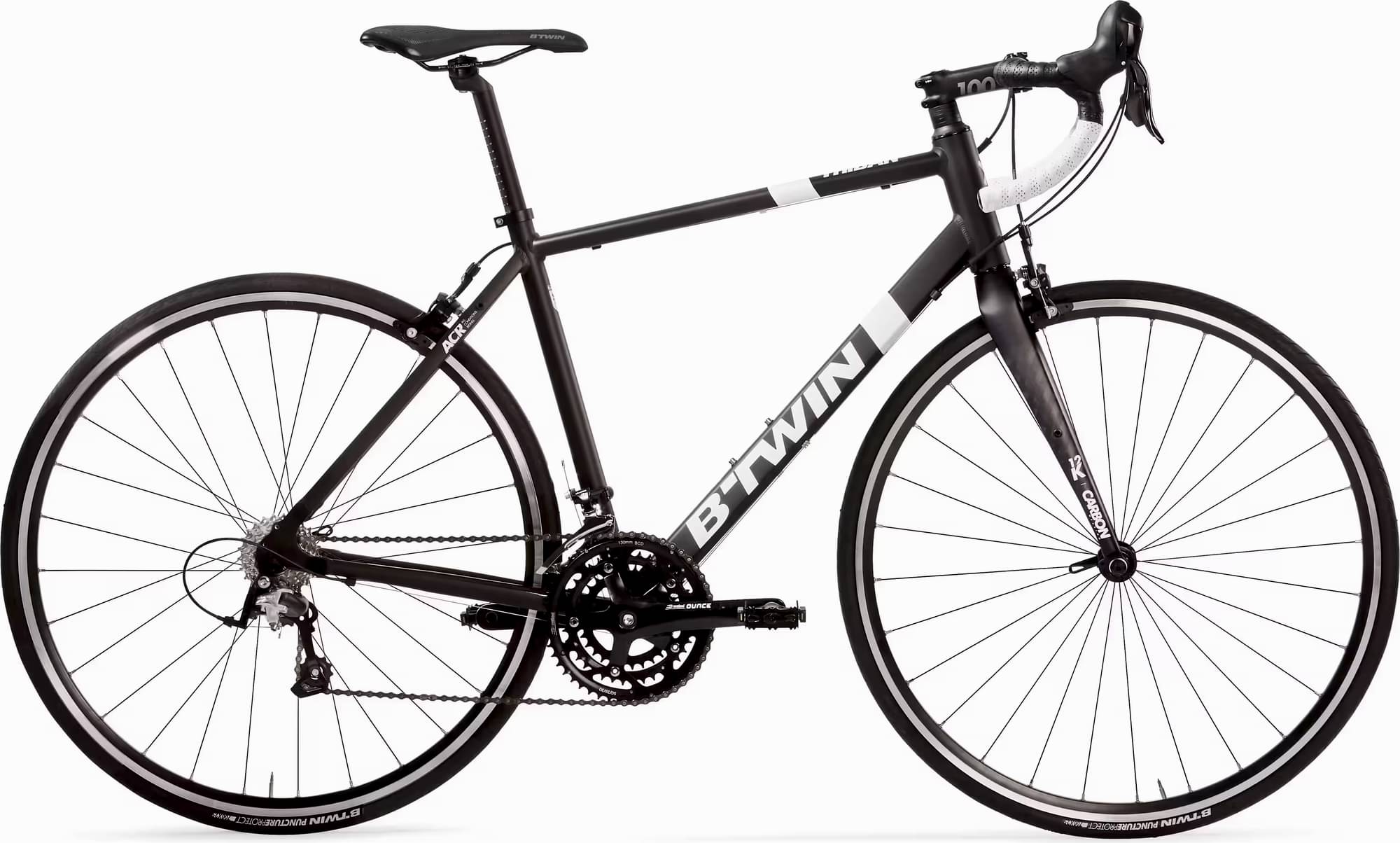

B’TWIN Triban 500 Cyclotourism Road Bike 2024
2024 Road
Estimate price |
467$
Weight | 10.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Comfort-oriented frame geometry with a higher steering socket and a shorter top tube that offers a more upright position than a classic road frame. 6061 T6 aluminium sloping frame with semi-integrated headset. Frame weight, size M: 1830g.

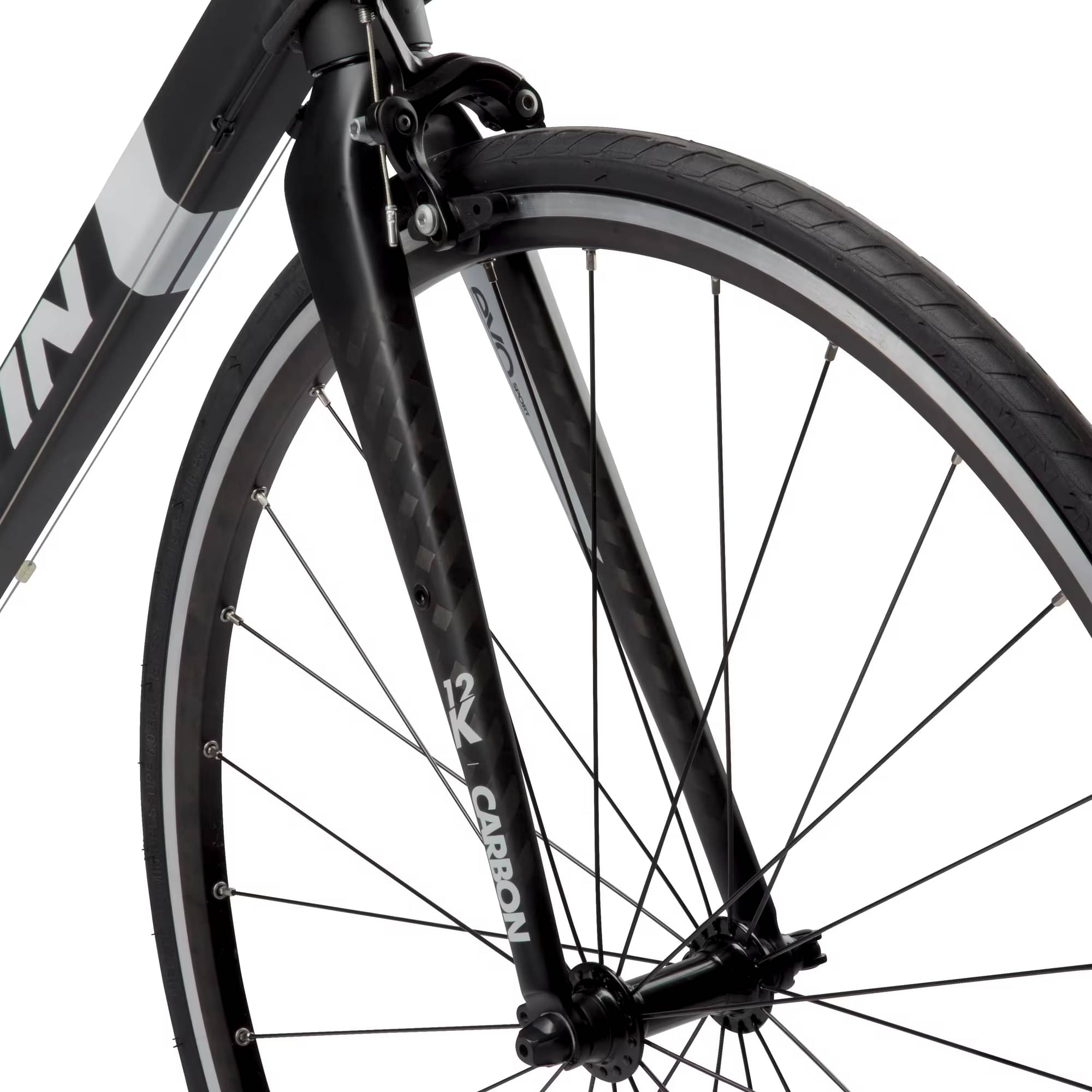

Suspension Fork
Carbon fork that is more lightweight and offers more precise directional control. Aheadset 1"1/8 head tube that provides great strength and rigidity to the steering assembly.Inserts in the fork to fit a pannier rack. Maximum load on the fork: 9kg.
Drivetrain

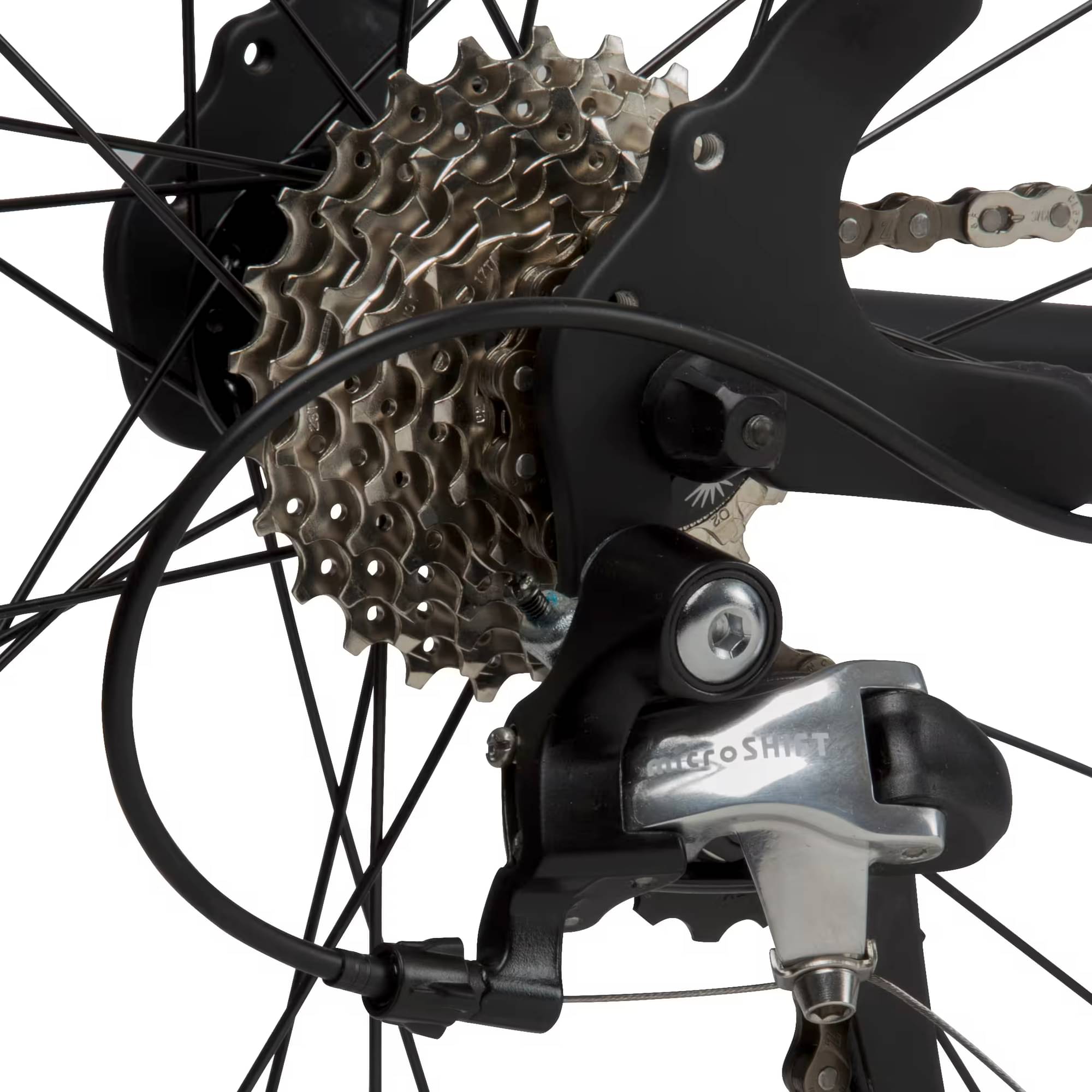

Cassette

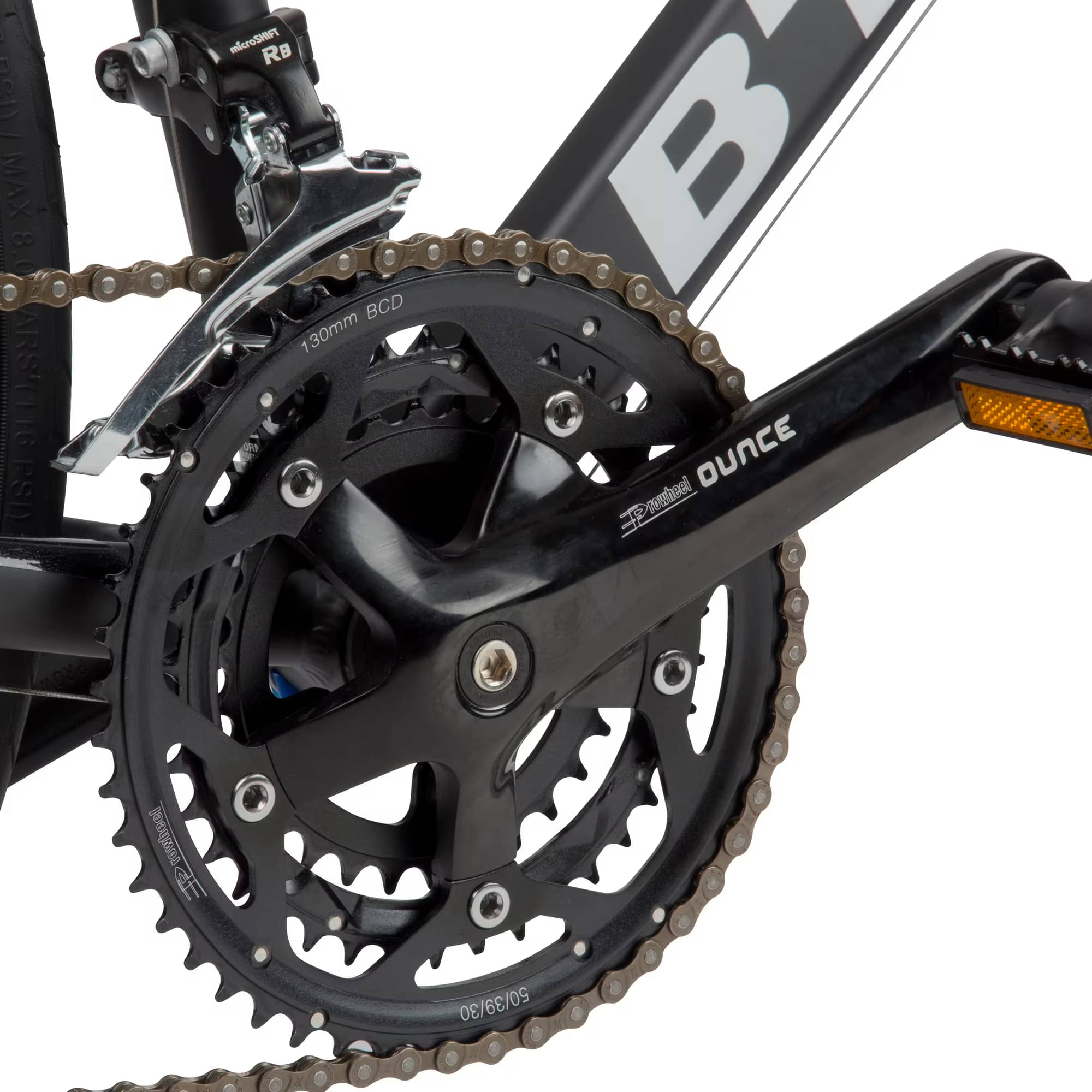

Microshift 8S 12x25 cassette. (12/13/15/17/19/21/23/25). Prowheel Once triple chainring 50/39/30 bottom bracket. Cranks: XS, S, M: 170mm.L, XL: 175mm.
Crank
triple chainring
Pedals
Hybrid platform pedals.
Wheels
Rims
B'Twin Sport 700 wheels. Aero 28 hubs.

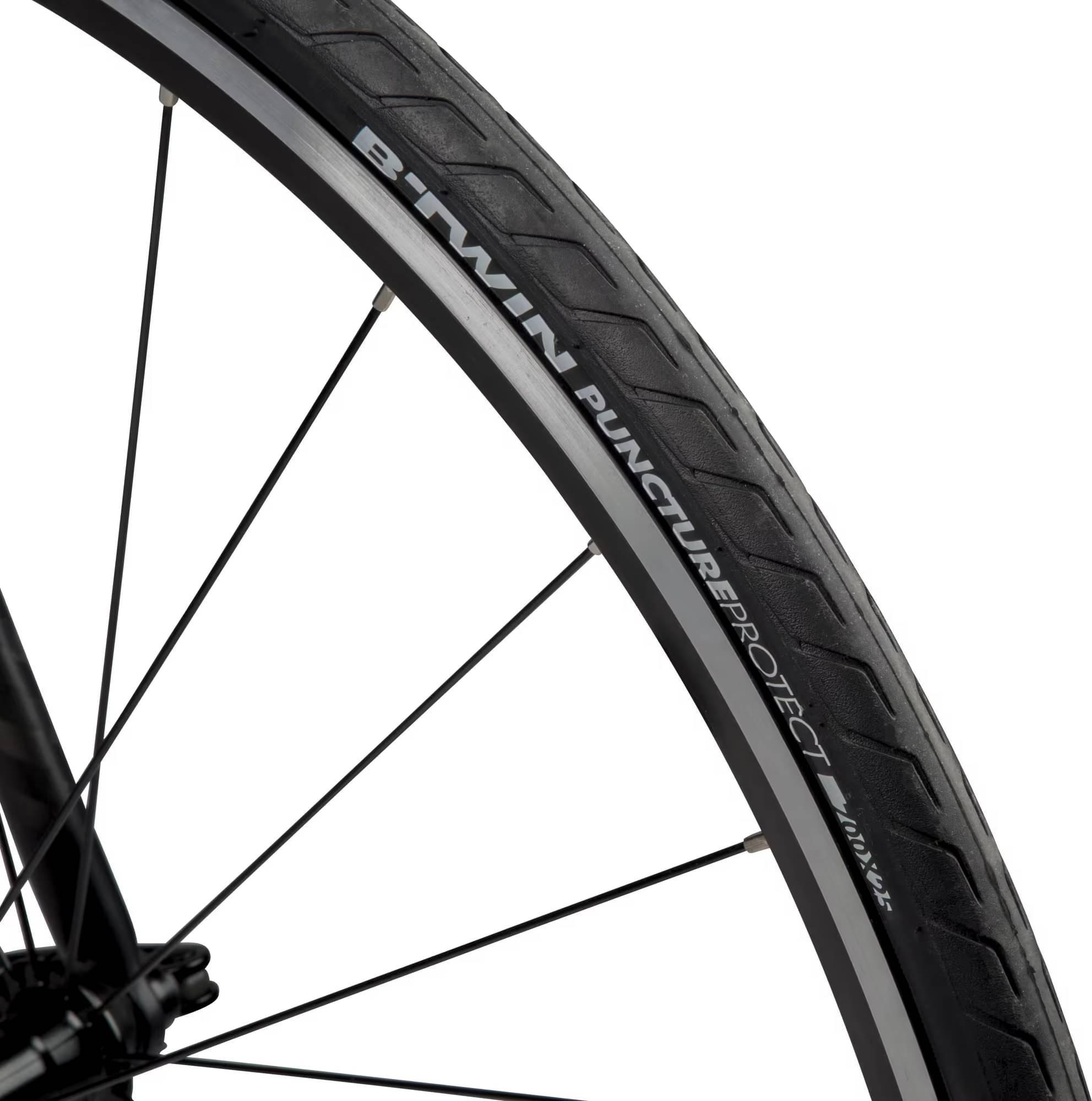

Tires
B'Twin resist 5 tyres: 700 x 25.B'Twin inner tube.
Brakes

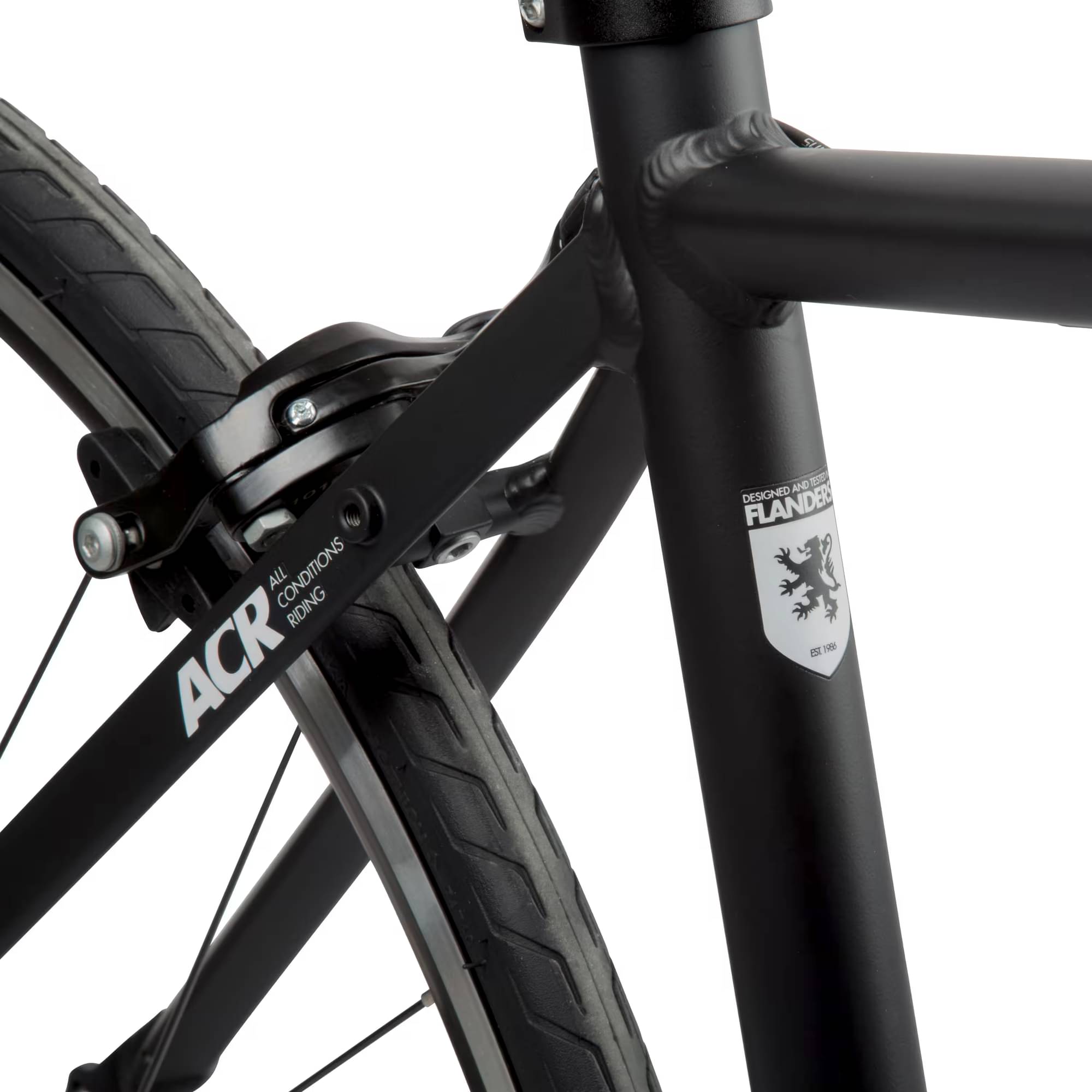

Brakes
brakes pad
Fit data

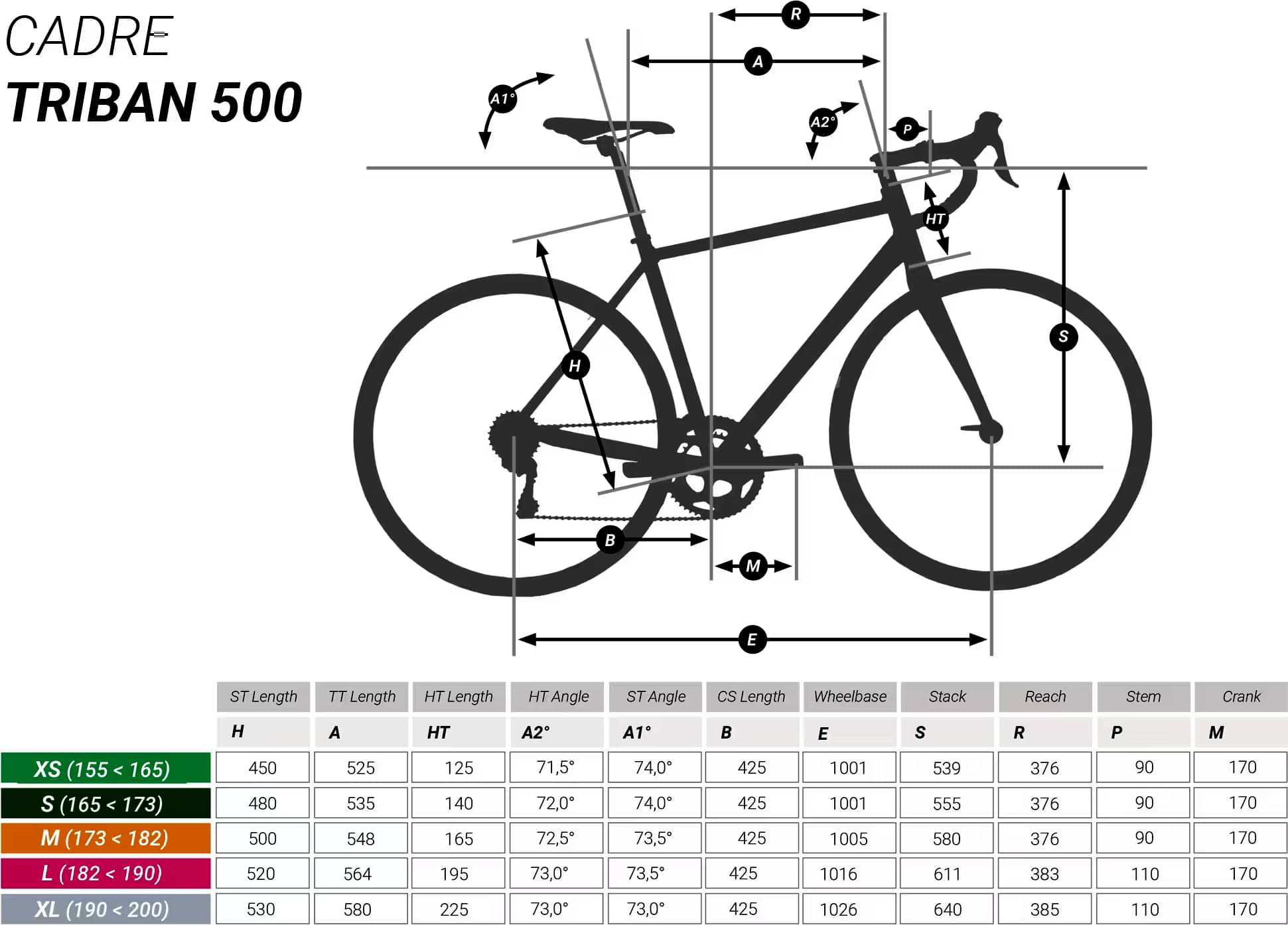

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
