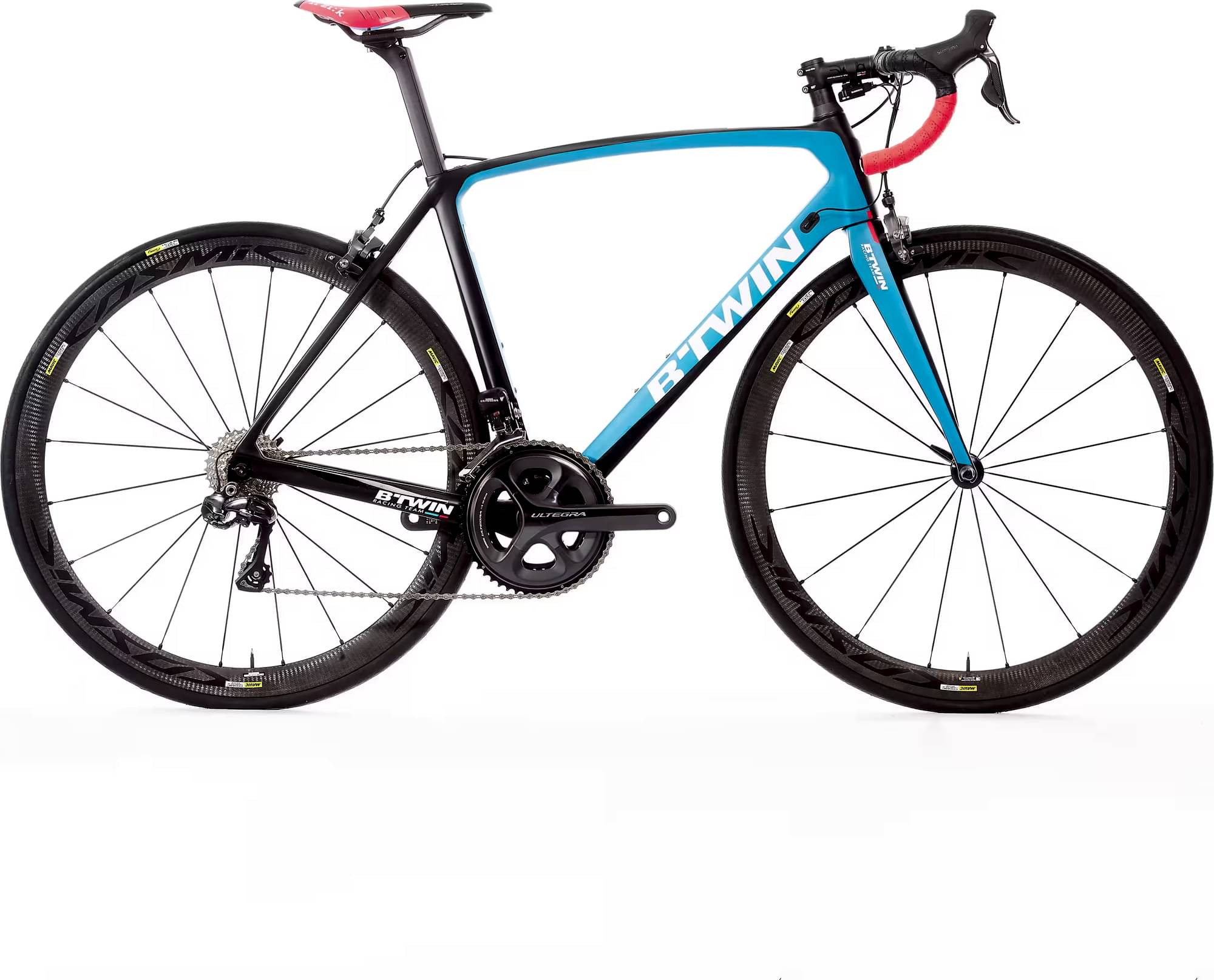

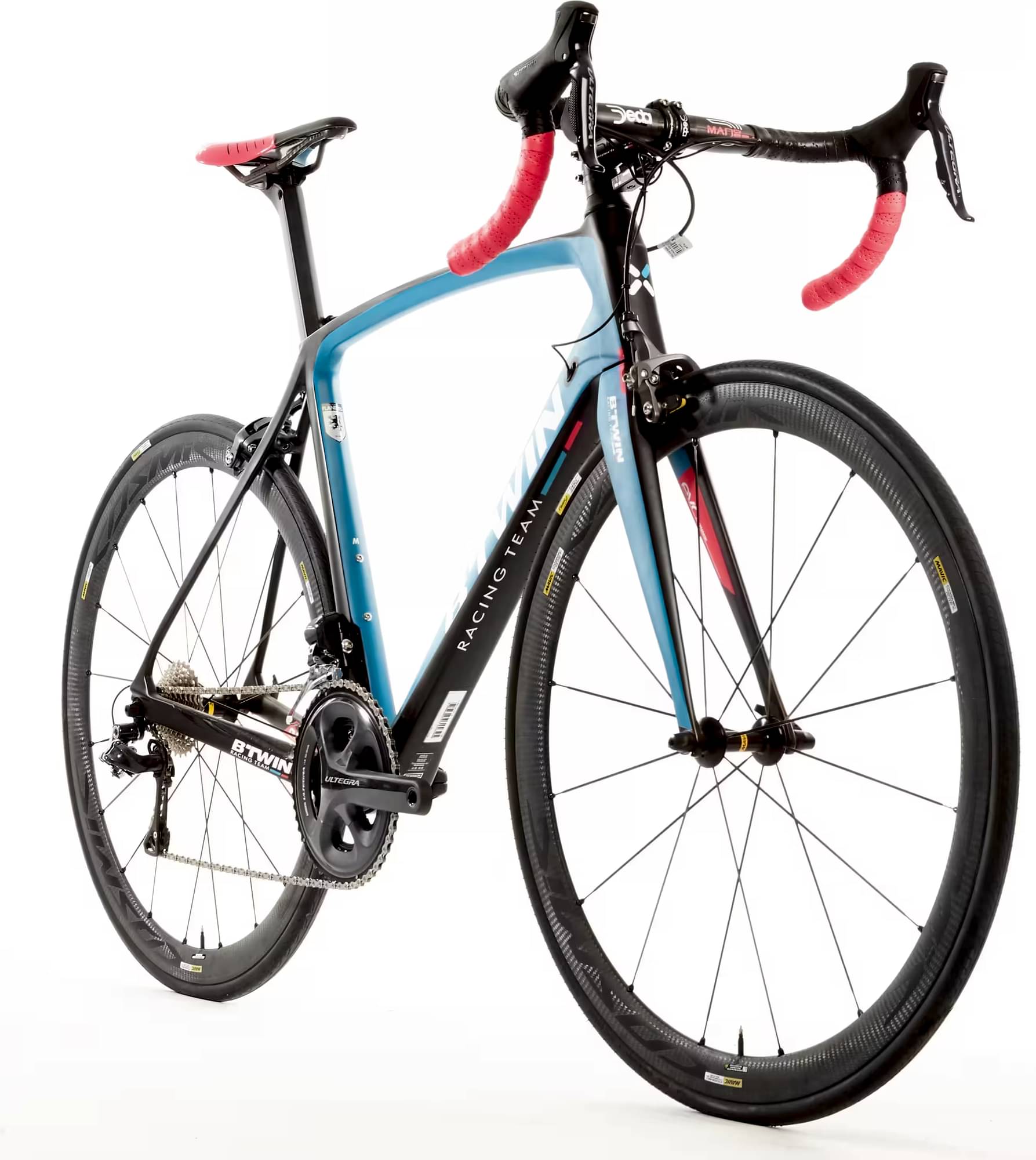

B’TWIN Ultra 740 CF Team Edition Road Bike 2024
2024 Road
Estimate price |
4,063$
Weight | 7.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Suspension Rigid -
Brakes Shimano Ultegra Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

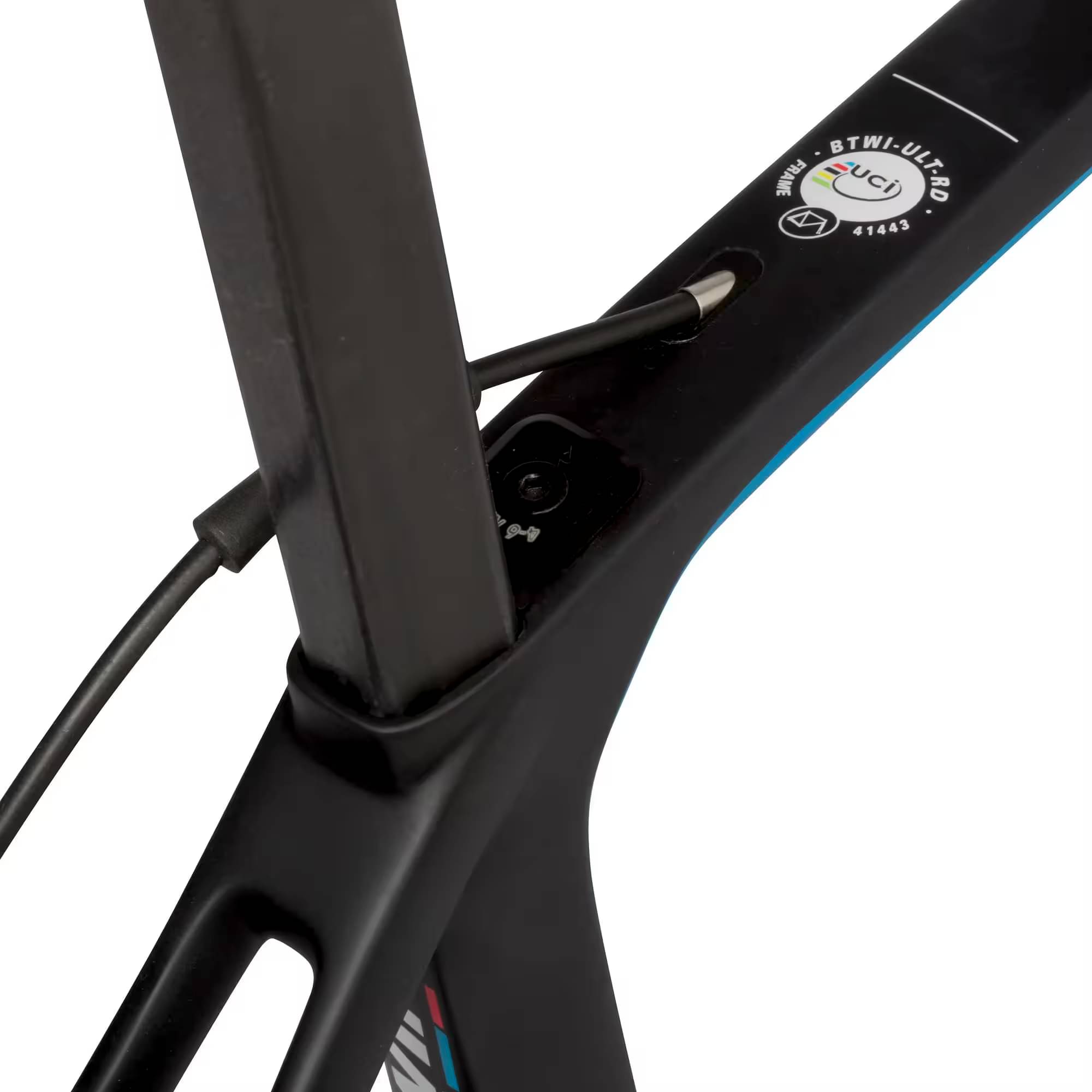

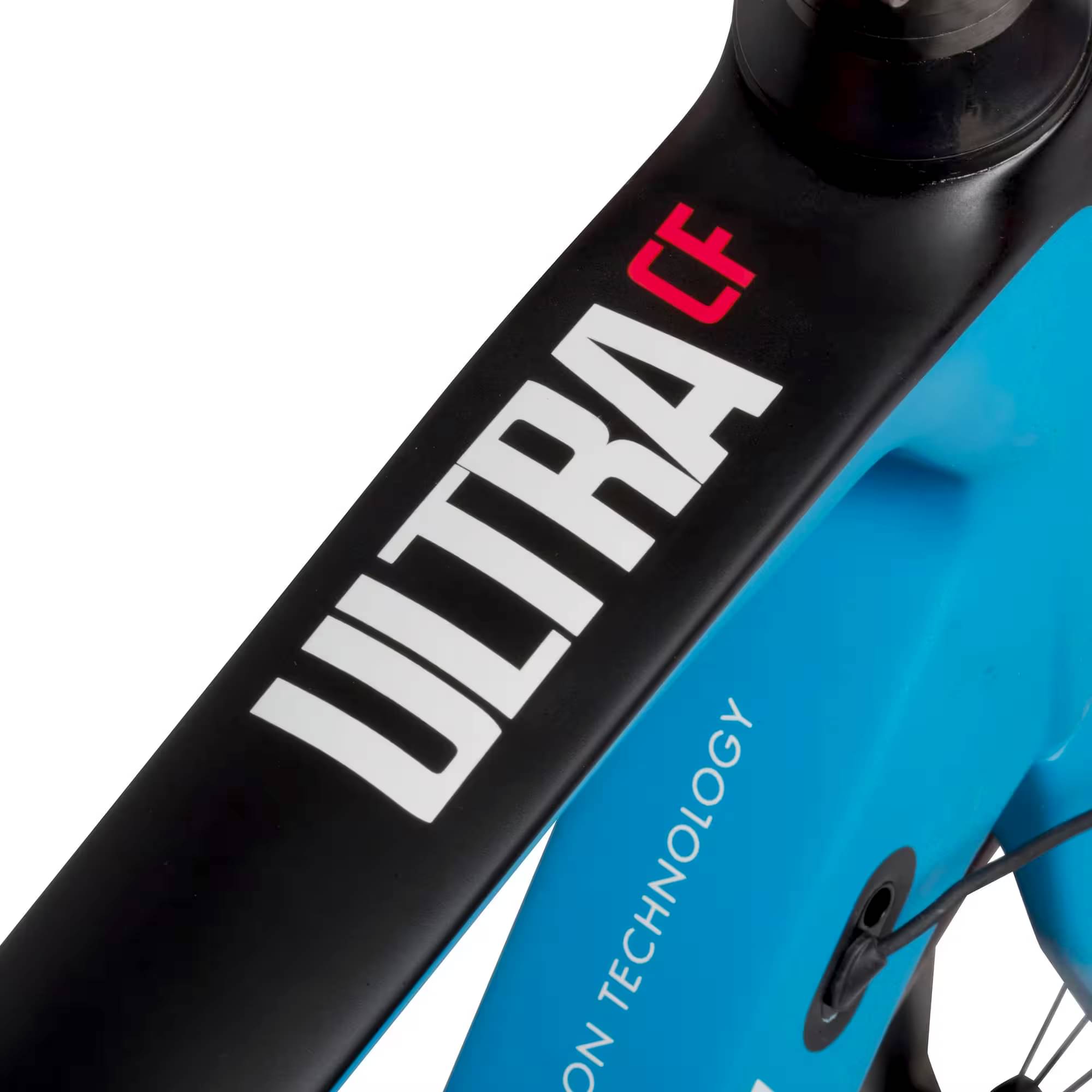

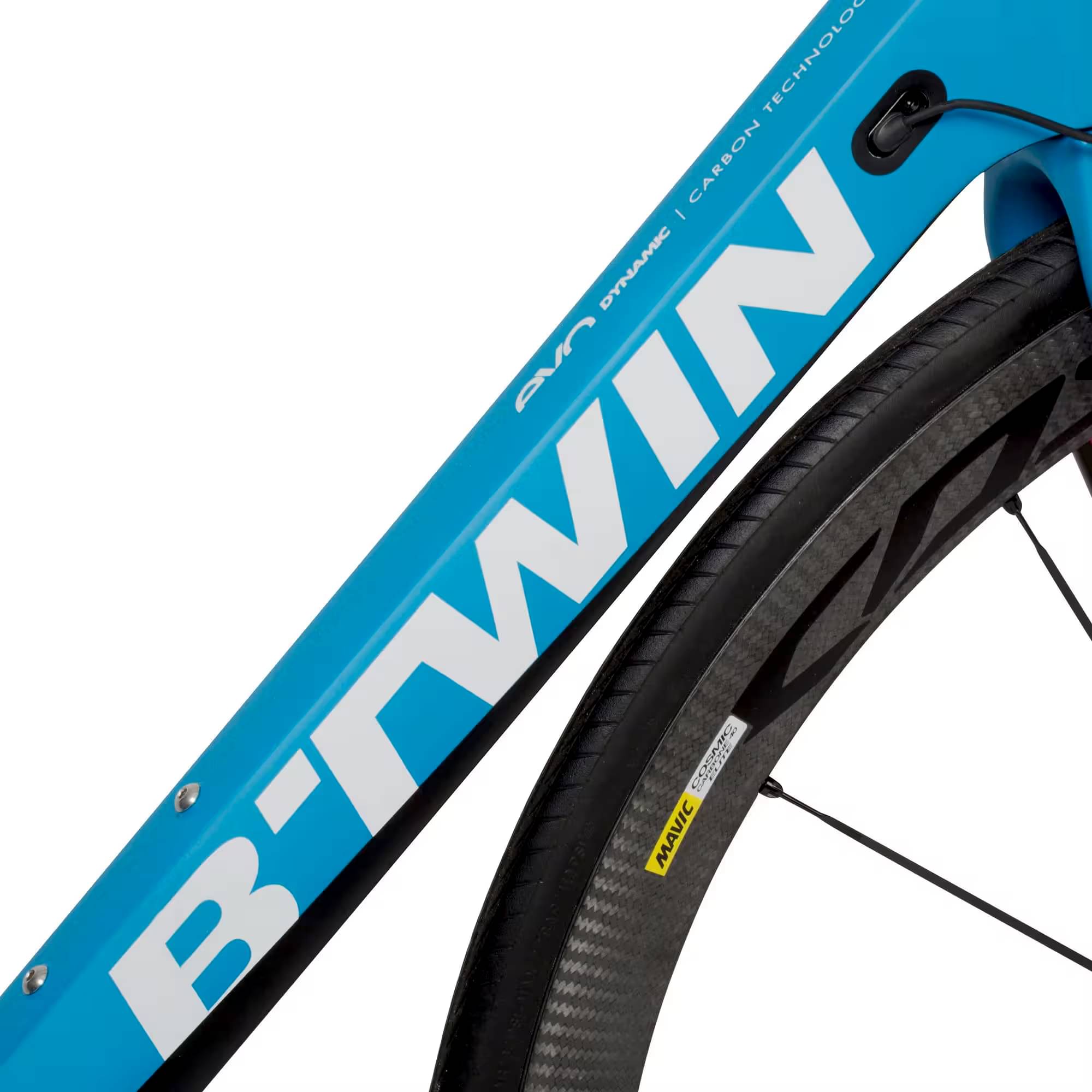

The B'Twin Ultra Evo Dynamic carbon fibre frame is the most advanced frame for tackling mountains climbs and winning the most demanding classic races. Weight: 850 g in size M (without accessories). A blend of HM and IM carbon fibres for one of the best weight-to-speed ratios on the market! The frame was specially designed for the most demanding climbers and sprinters. The bottom bracket is a standard PressFit 86 for greater stiffness of the chassis.
Suspension Fork

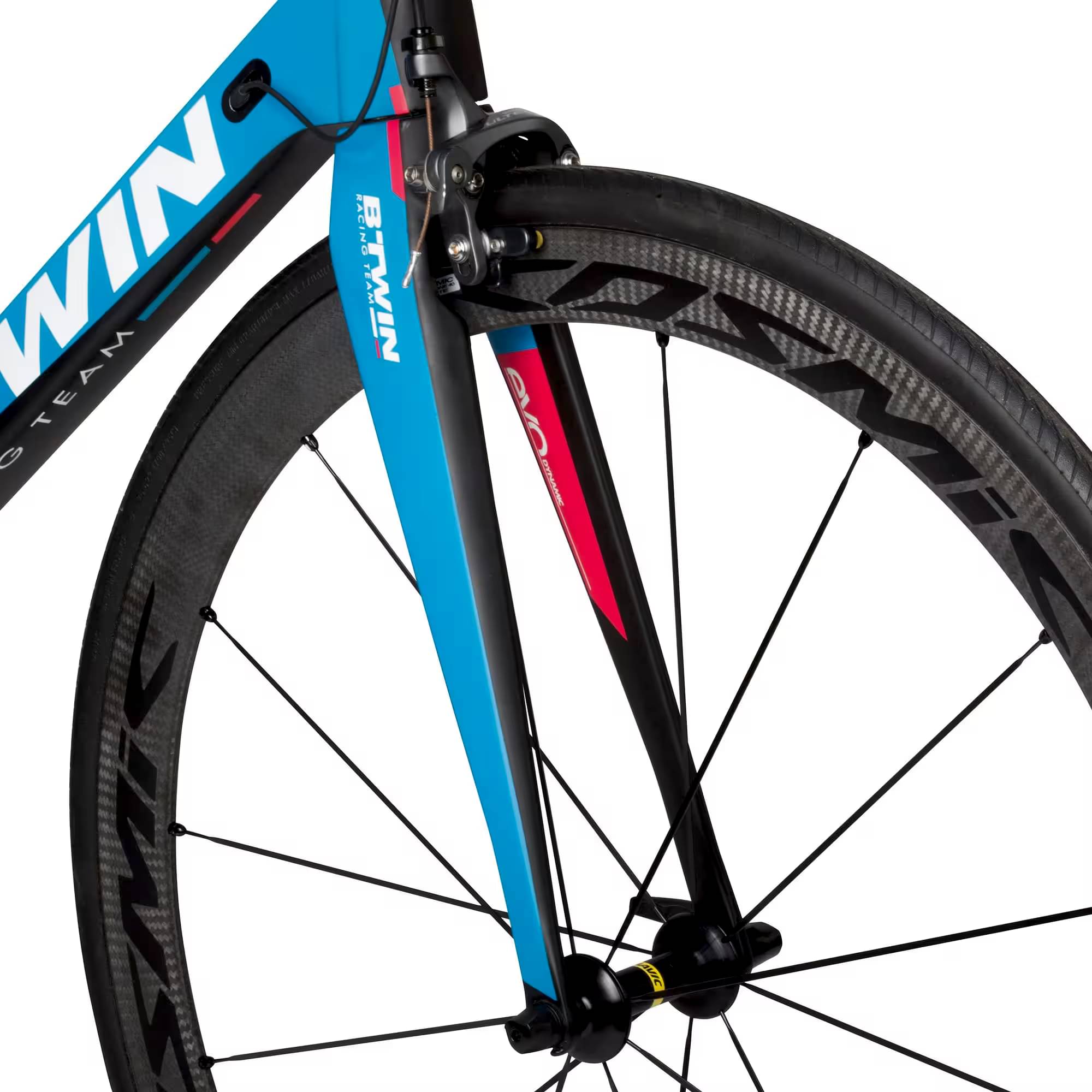

full carbon fork
Drivetrain
Cassette

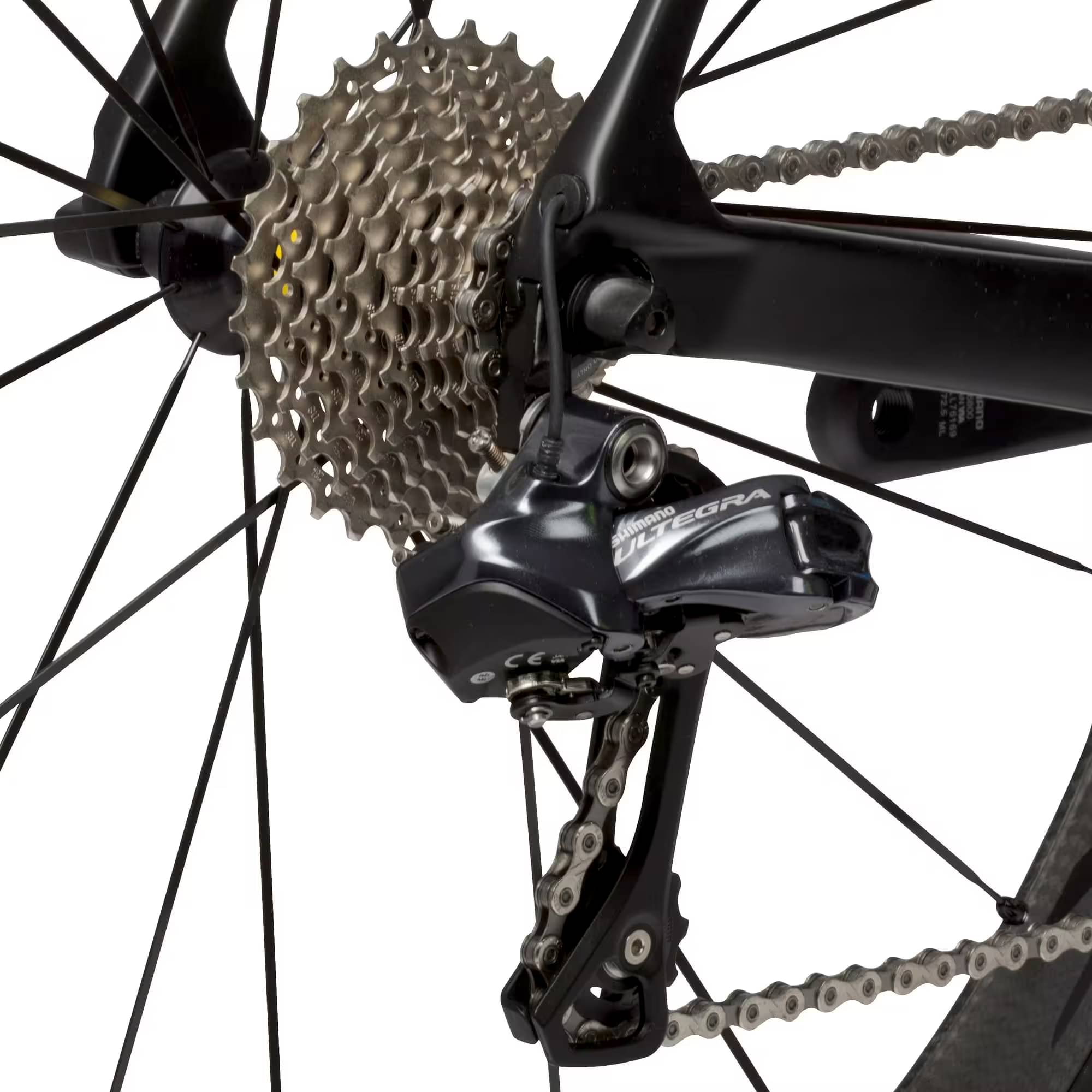

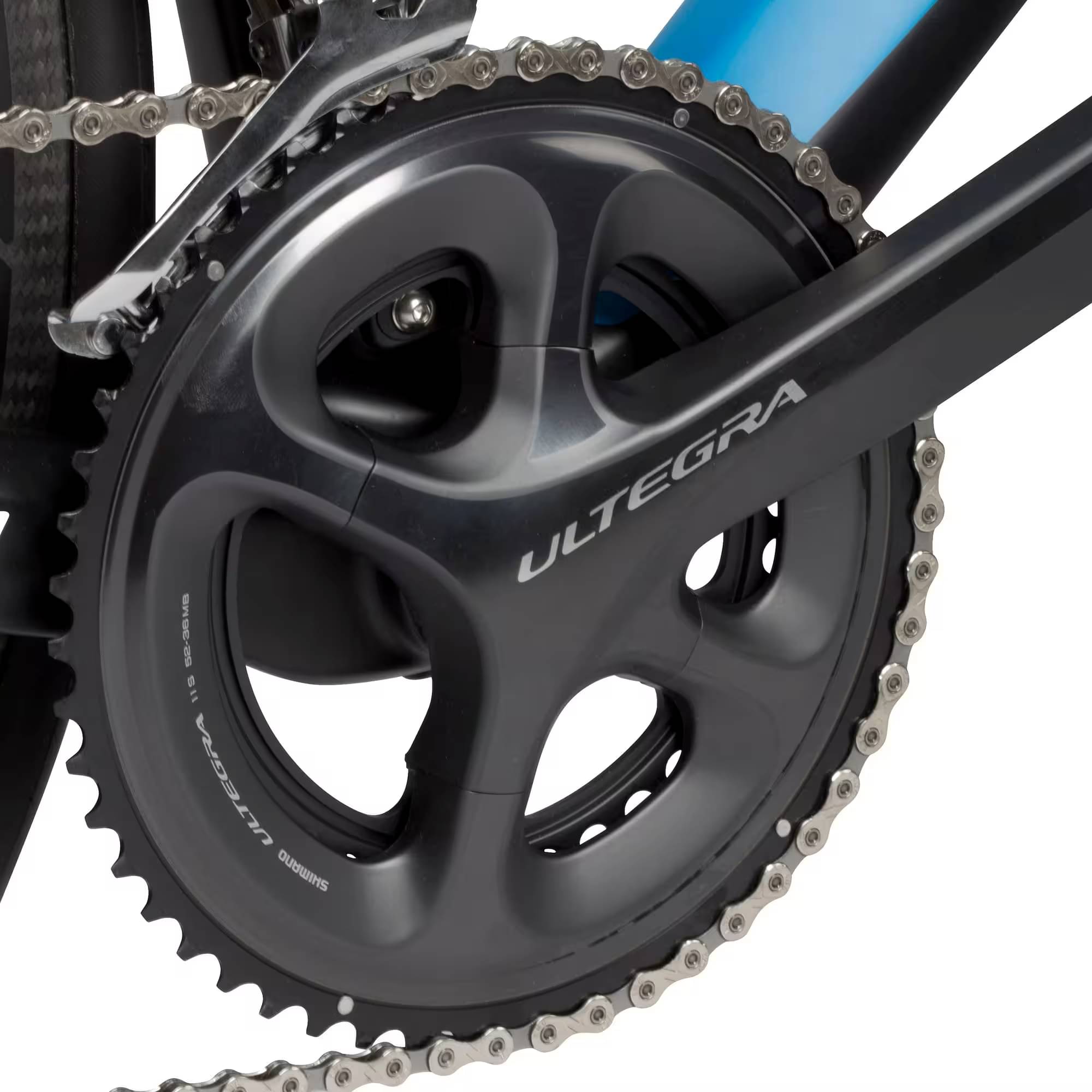

Shimano Ultegra 6800 compact, double crankset (52 x 36) for the optimum balance between low weight and rigidity. SG-X hyperdrive chain rings, HollowGlide outer chain ring: lightweight, rigid and durable. Weight 764 g in size 170 mm. Shimano ULTEGRA 6800 11/28 11-speed cassette (11/12/13/14/15/17/19/21/23/25/28)
Crank
double chainring
Bottom Bracket
BB86/BB92, press-fit
Pedals
Pedals not included.
Wheels
Rims

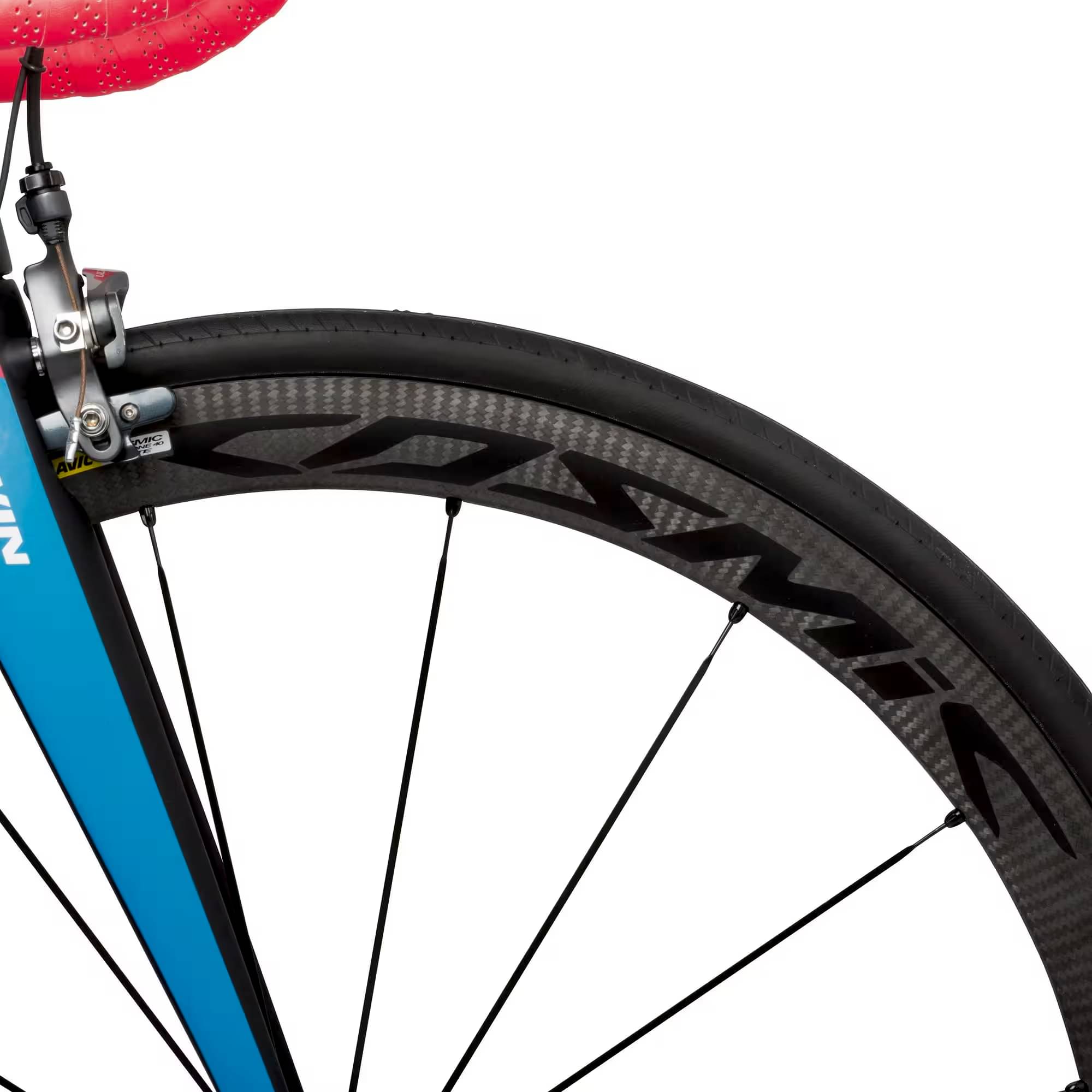

Mavic Cosmic C40 Elite Material: 3K carbon fibre rim with aluminium cooling system. Height: 40 mm Adjustable sealed bearings. Weight: Pair, without tyres: 1545 g. Front, without tyre: 670 g. Rear, without tyre: 875 g.
Tires
Yksion Pro GripLink tyre at the front and Yksion Pro PowerLink tyre at the rear: maximum traction at strategic points. Dual-density "S+" structure with a 60a "S+" compound that has more traction at the shoulders. Low rolling resistance. Dual-density "S+" structure with a 60a compound at the centre; slick profile. Highly resistance to punctures and gashes. High puncture resistance: Solid nylon carcass: 127 TPI nylon. Weight: 215 g (700x25c).
Brakes
Brakes

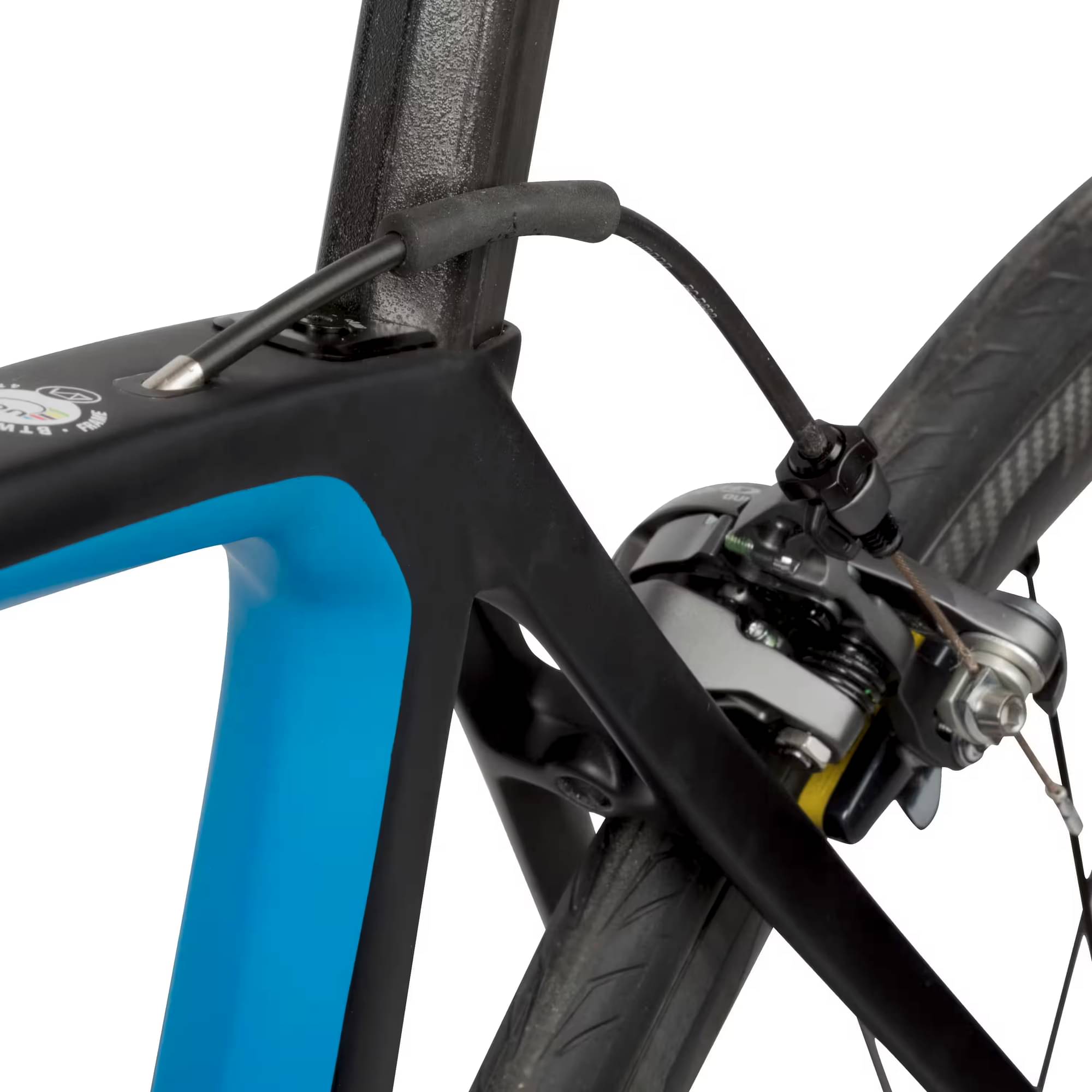

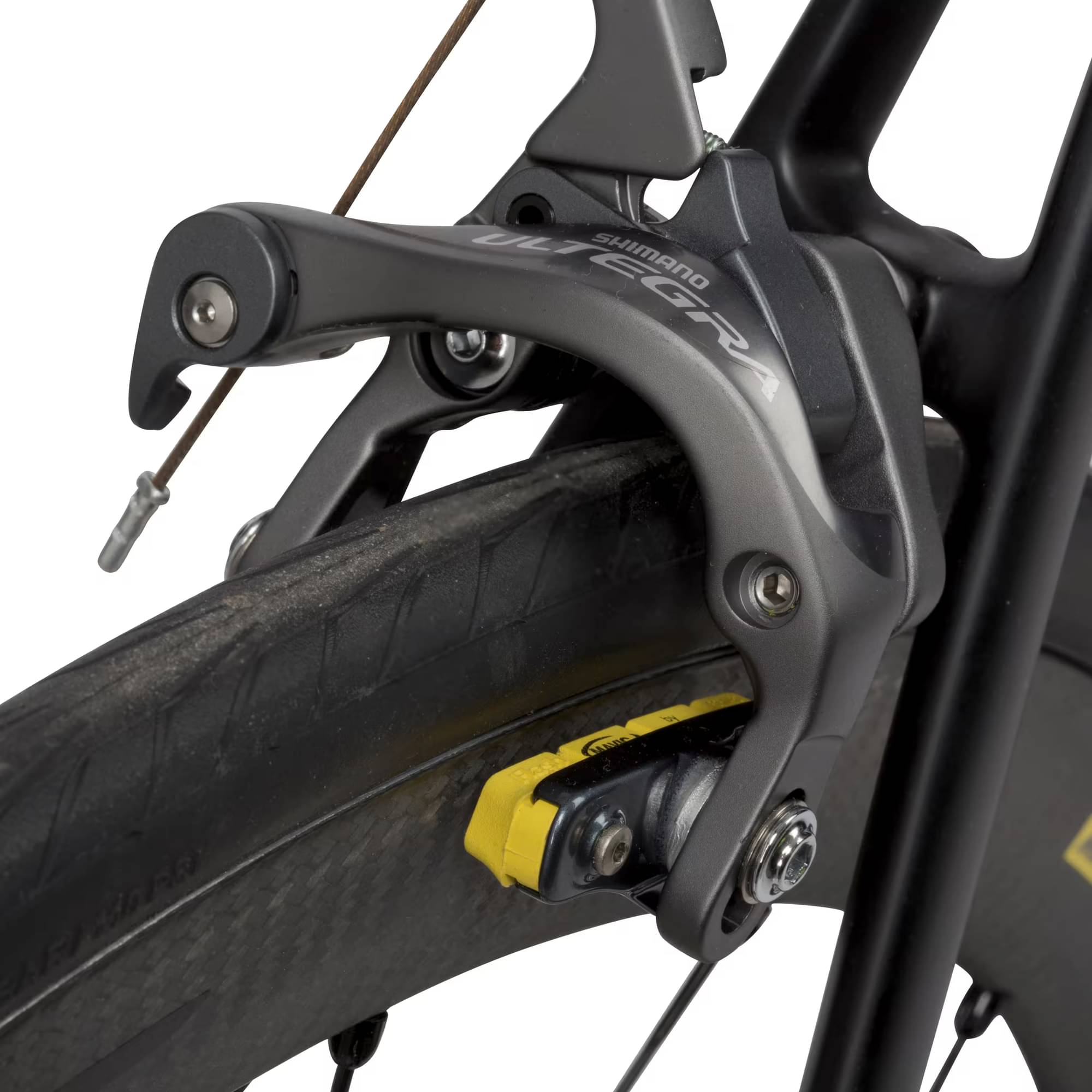

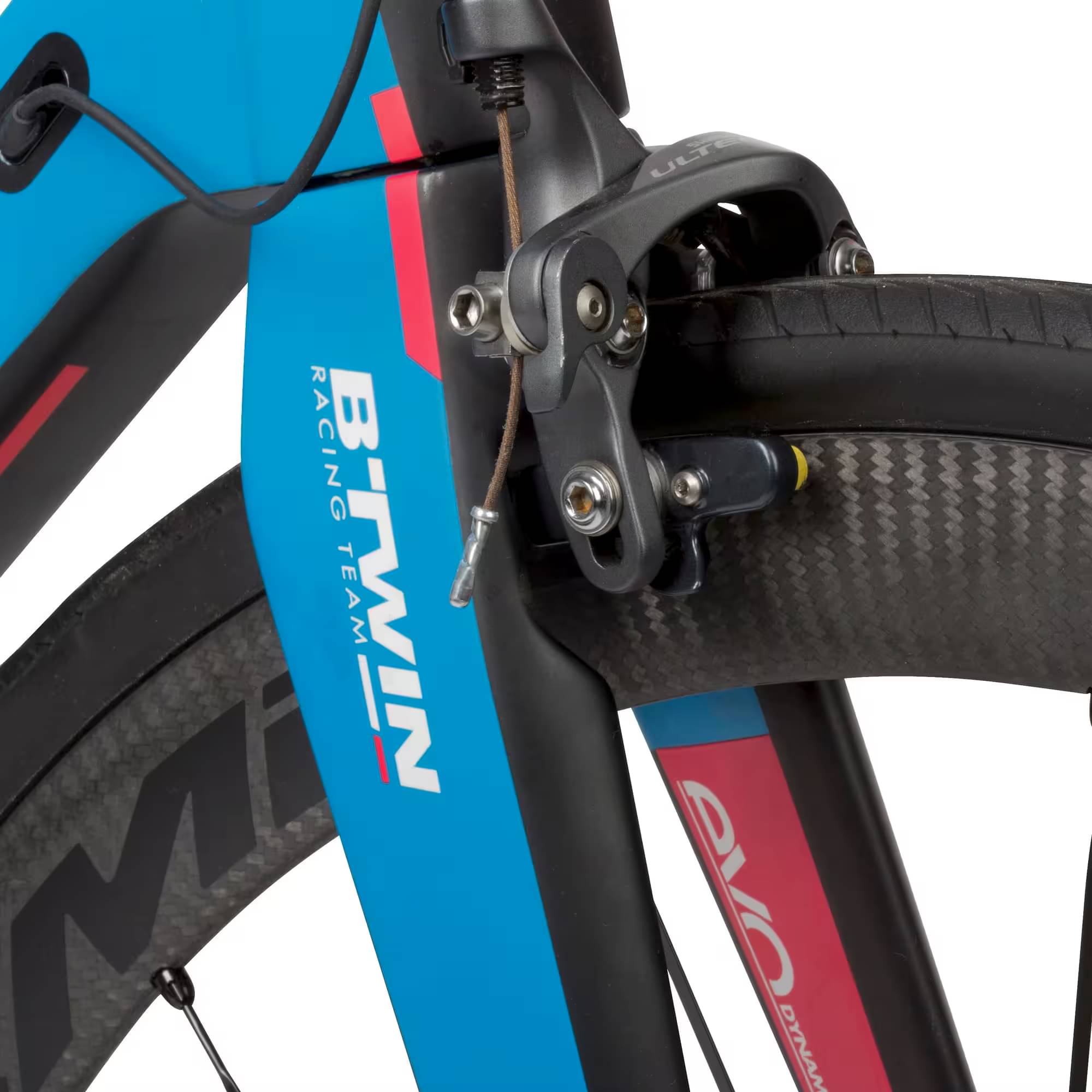

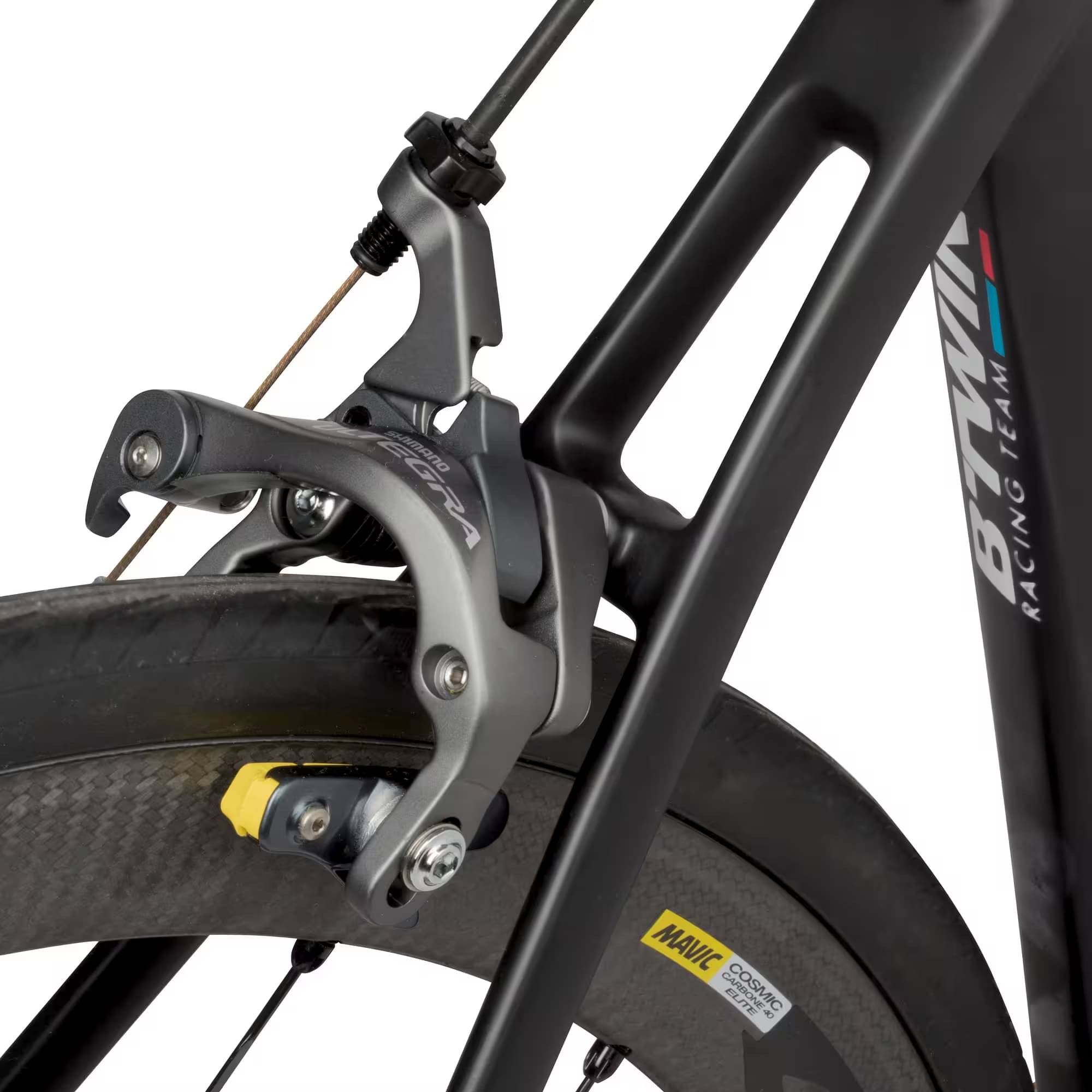

Front calliper: Shimano Ultegra 6810 Direct Mount, 2 symmetrical axles for more efficient braking control and greater braking power. Adjustable spring tension. Rear calliper: Shimano Ultegra 6810 (classic mounting on seat stay).
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
