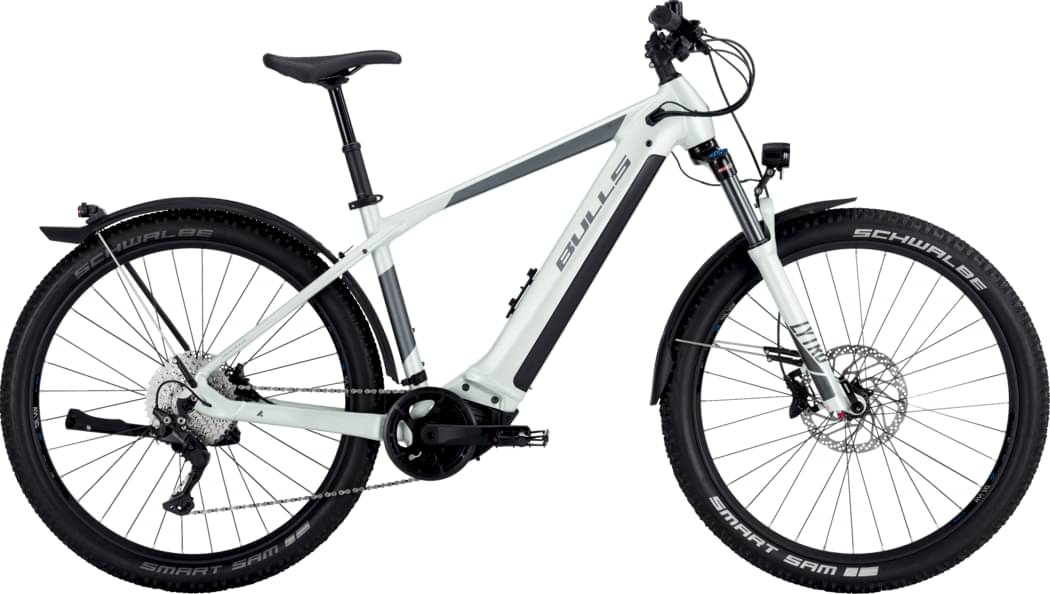

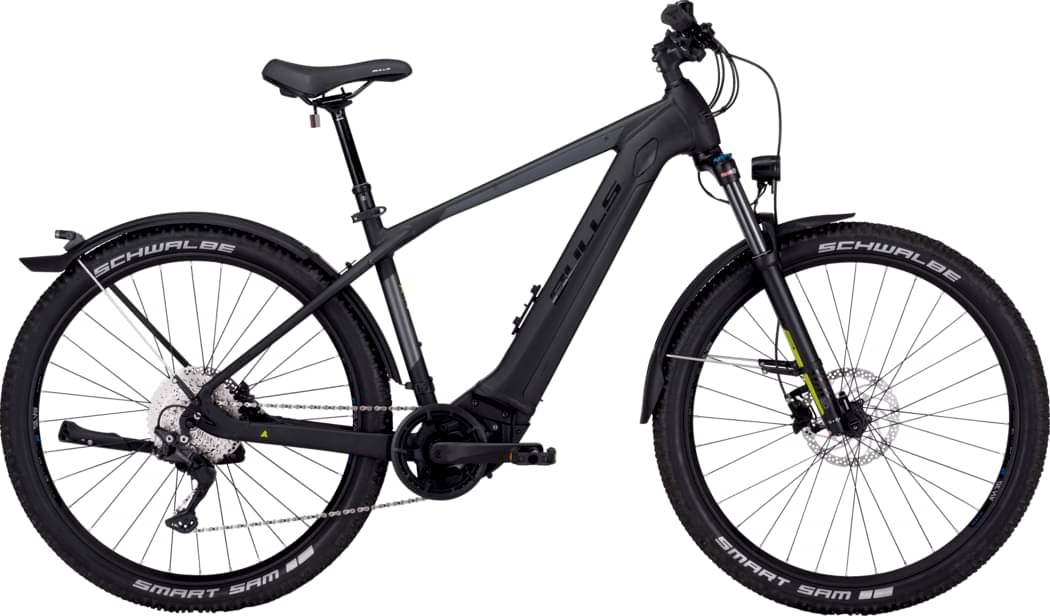

BULLS Copperhead EVO 2 XXL Street 27.5 2023
2023 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork BULLS Lytro
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
BULLS Lytro 34 Air LOR, Boost
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120 shadow+
Shift Levers
SHIMANO Deore SL-M4100 with I-Spec EV
Cassette
SHIMANO Deore 10-speed, 11-42T
Crank
FSA
Chain
KMC, X10EPT
Pedals
ZECURE MTB pedals
Wheels
Front Hub
SHIMANO HB-MT400-B Centre Lock
Rear Hub
SHIMANO FH-MT200-B Centre Lock
Rims
RYDE Disc 30, tubeless ready
Tires
SCHWALBE Smart Sam K-Guard
Brakes
Brakes
Hydraulic disc brake
Cockpit
Stem
MTB-SL, 3D forged, CCS Slot Mount ready
Handlebar
ZECURE Sport-SL
Headset
FSA No.57SC
Seat
Saddle
ZECURE
Seatpost
LIMOTEC Alpha 1, 30.9 / S: 75 mm, M: 100 mm, L: 125 mm, XL/ XXL: 150 mm
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85 Nm
Charger
Bosch standard charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.44 mm | 1.424 mm | 1.378 mm |
| Front Center | 749 mm | 754 mm | 762 mm | 789 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 638 mm | 638 mm | 642 mm | 652 mm |
| Reach | 438 mm | 443 mm | 451 mm | 473 mm |
| Top Tube Length | 615 mm | 620 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 540 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 125 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1182 mm | 1187 mm | 1196 mm | 1223 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
