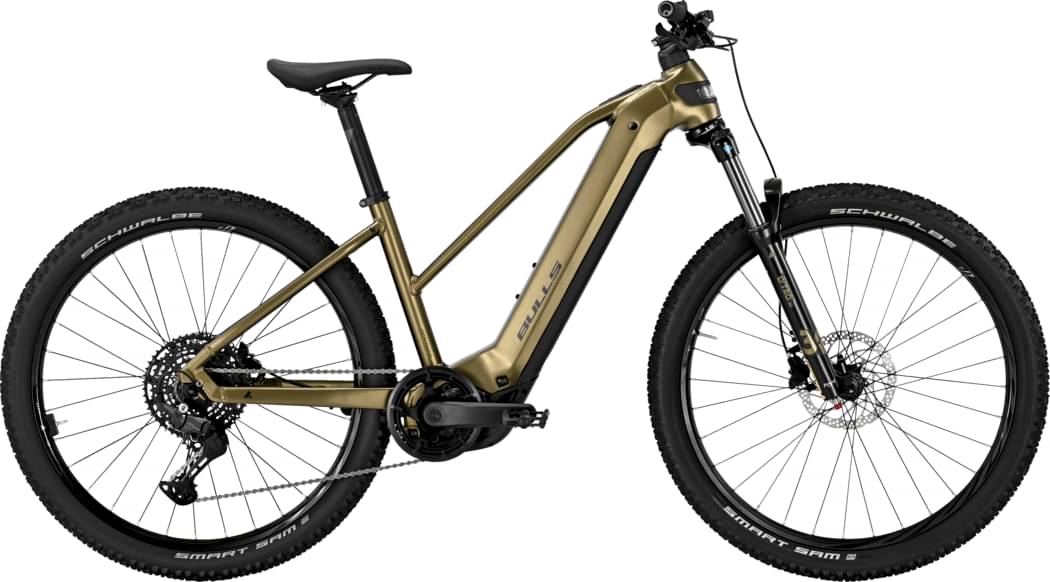

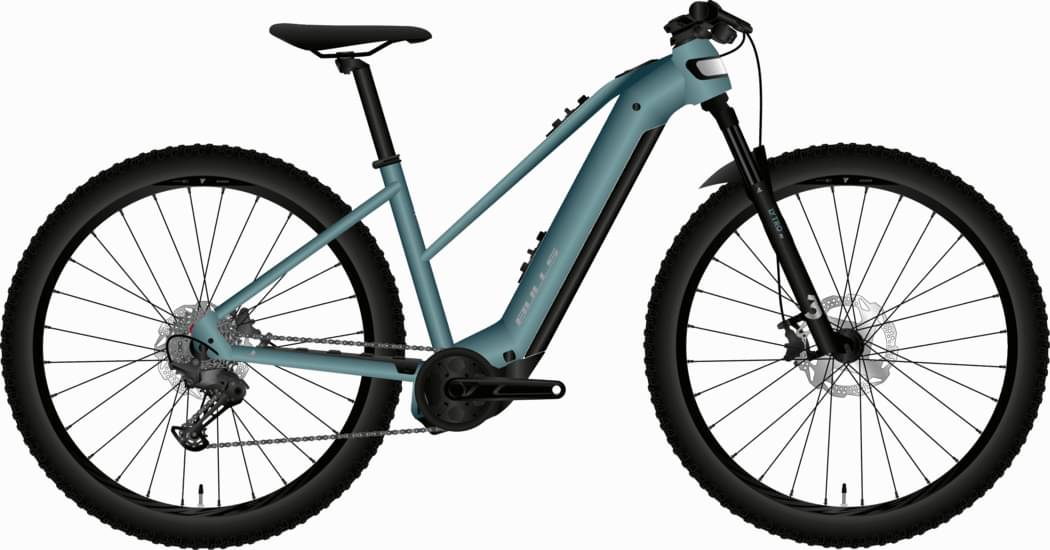

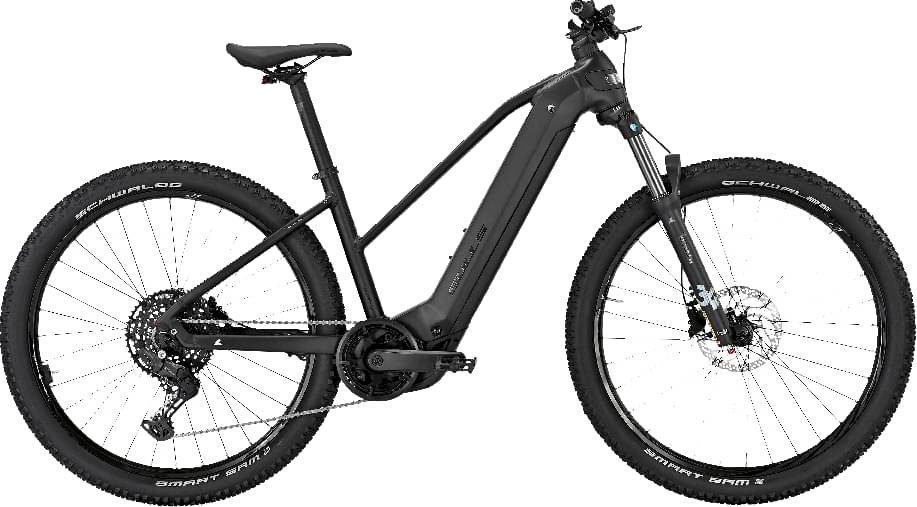

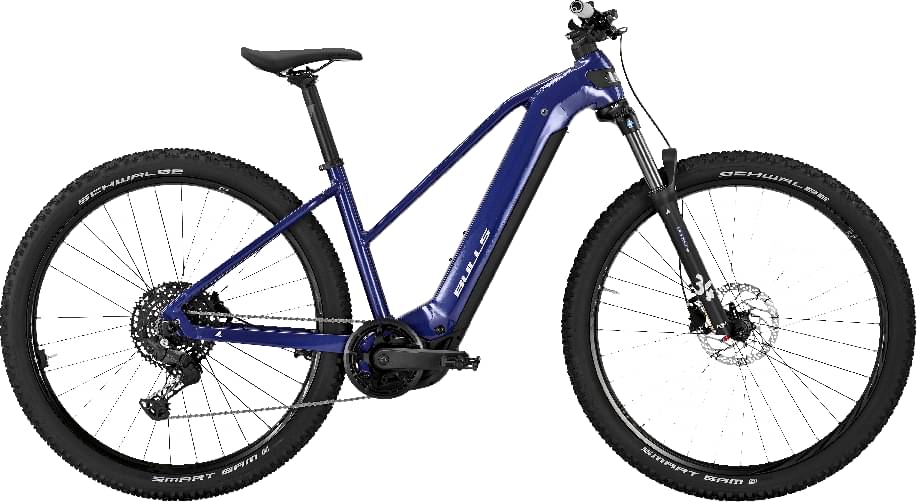

BULLS COPPERHEAD EVO 27.5 Trapeze 2025
2025 E-bike
Estimate price |
4,769$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork BULLS Lytro
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
BULLS Lytro 34 Air LOR, 1.8 Steerer, Boost
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U6000
Shift Levers
SHIMANO Cues SL-U6000
Cassette
SHIMANO CUES CS-LG300-10 11-48T
Crank
SAMOX EC-53
Chain
SHIMANO Linkglide CN-LG500
Pedals
BULLS MTB pedals
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO CUES FH-QC400 Boost
Rims
BULLS DDM-30
Tires
SCHWALBE Smart Sam K-Guard
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Bulls MTB Stem CCS Slot Mount ready
Handlebar
BULLS Sport-S riser bar
Headset
acros AZX-262 310.52.570R1
Seat
Saddle
Bulls MTB Sport
Seatpost
BULLS Aluminium 34.9 mm
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Compact charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.427 mm |
| Bottom Bracket Height | 310 mm | 310 mm |
| Front Center | 718 mm | 722 mm |
| Rake | 41 mm | 41 mm |
| Trail | 110 mm | 110 mm |
| Stack | 612 mm | 612 mm |
| Reach | 425 mm | 429 mm |
| Top Tube Length | 600 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° |
| Seat Tube Length | 360 mm | 400 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm |
| Wheelbase | 1144 mm | 1148 mm |
| Bottom Bracket Drop | 45 mm | 45 mm |
| Wheels | 27" | 27" |
