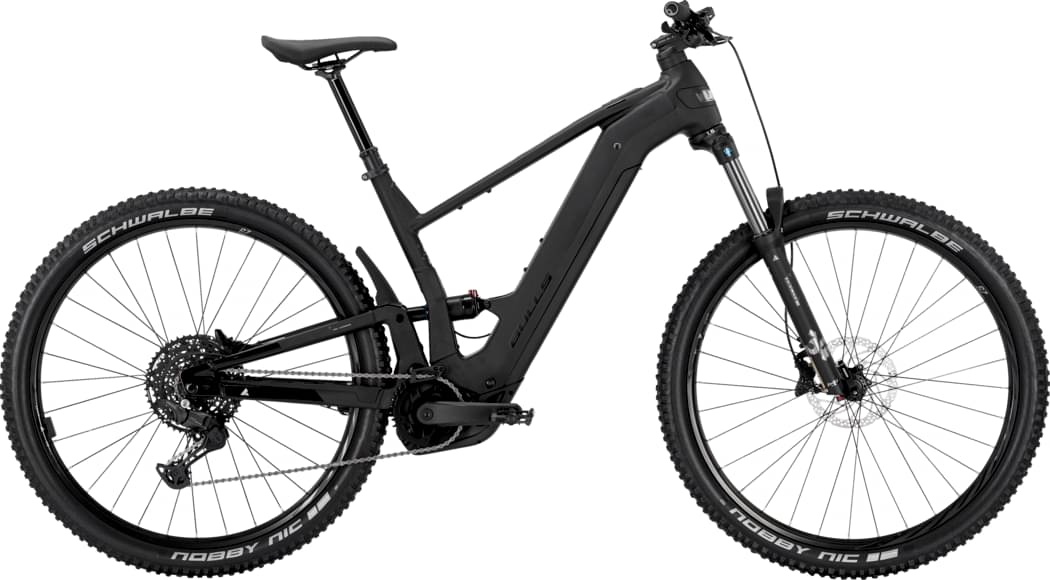

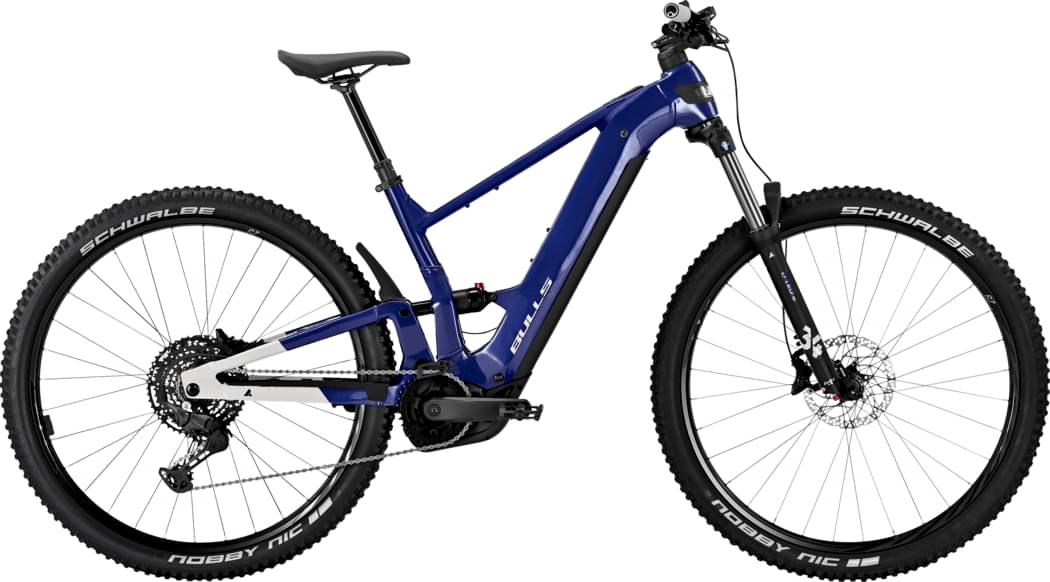

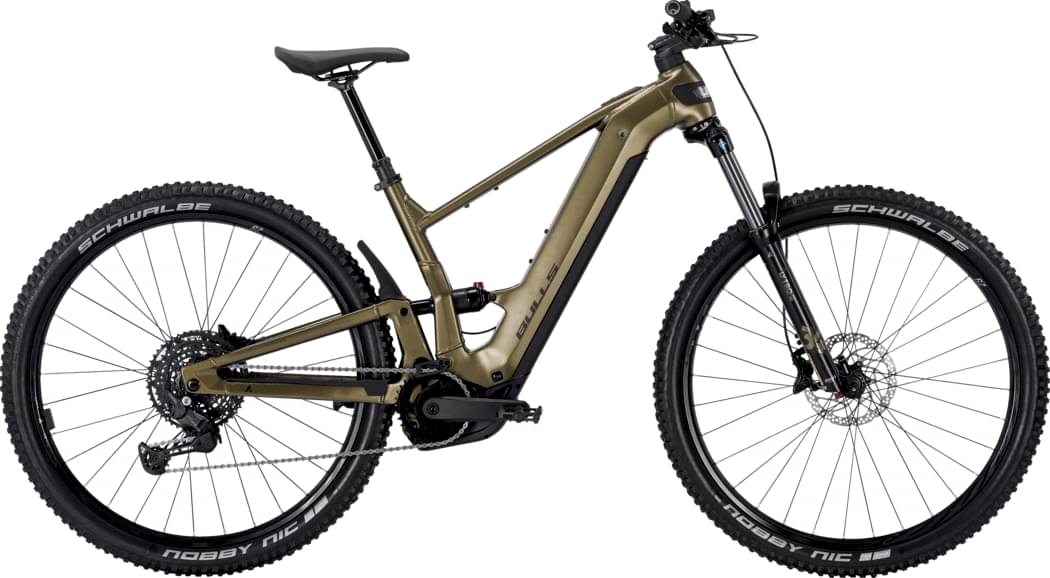

BULLS COPPERHEAD EVO AM 1 29 Diamond 2025
2025 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork BULLS Lytro
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Bulls Lytro 34 Air Boost 2CR DS 15AH2-110
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U6000
Shift Levers
SHIMANO Cues SL-U6000
Cassette
SHIMANO CUES CS-LG300-10 11-48T
Crank
SAMOX EC-53
Chain
SHIMANO Linkglide CN-LG500
Pedals
BULLS MTB pedals
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO DEORE FH-TC500-HM-B Boost
Rims
BULLS DDM-30
Tires
SCHWALBE NOBBY NIC Perf, Folding
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Bulls MTB Stem CCS Slot Mount ready
Handlebar
BULLS Sport-S riser bar
Headset
acros AZX-262 310.52.570R1
Seat
Saddle
Bulls MTB Sport
Seatpost
RUMBLE Escalator, 34.9 mm / XS 100 mm, S 125 mm, M 150 mm, L/XL 170 mm + SL-MT500-L (with clamp)
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Compact charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.388 mm | 1.331 mm |
| Bottom Bracket Height | 340 mm | 335 mm | 330 mm |
| Front Center | 775 mm | 803 mm | 826 mm |
| Rake | 51 mm | 51 mm | 50 mm |
| Trail | 111 mm | 111 mm | 112 mm |
| Stack | 631 mm | 655 mm | 660 mm |
| Reach | 453 mm | 472 mm | 496 mm |
| Top Tube Length | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1218 mm | 1245 mm | 1268 mm |
| Bottom Bracket Drop | 34 mm | 39 mm | 44 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
