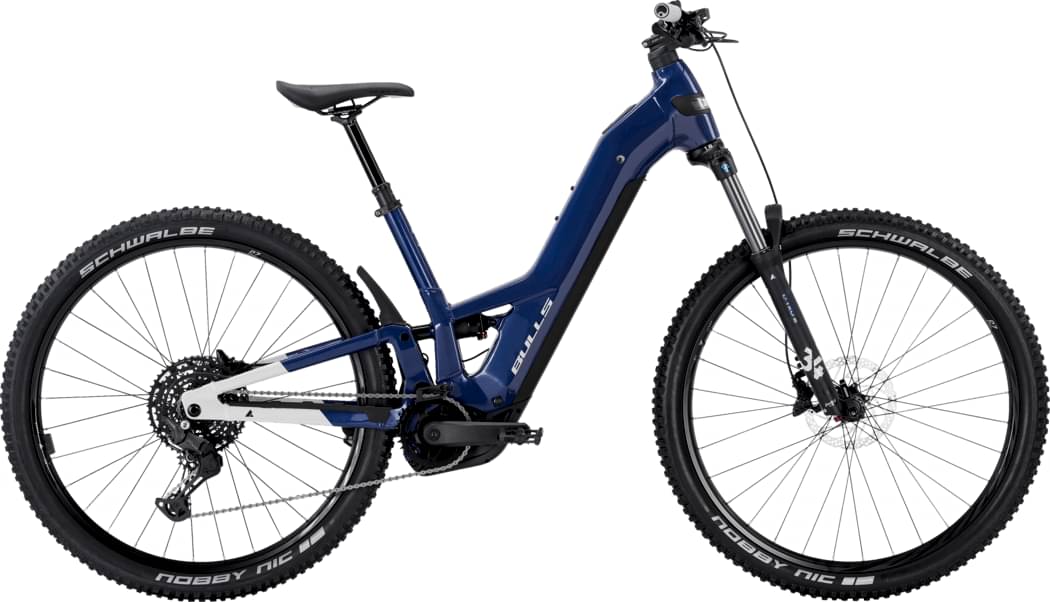

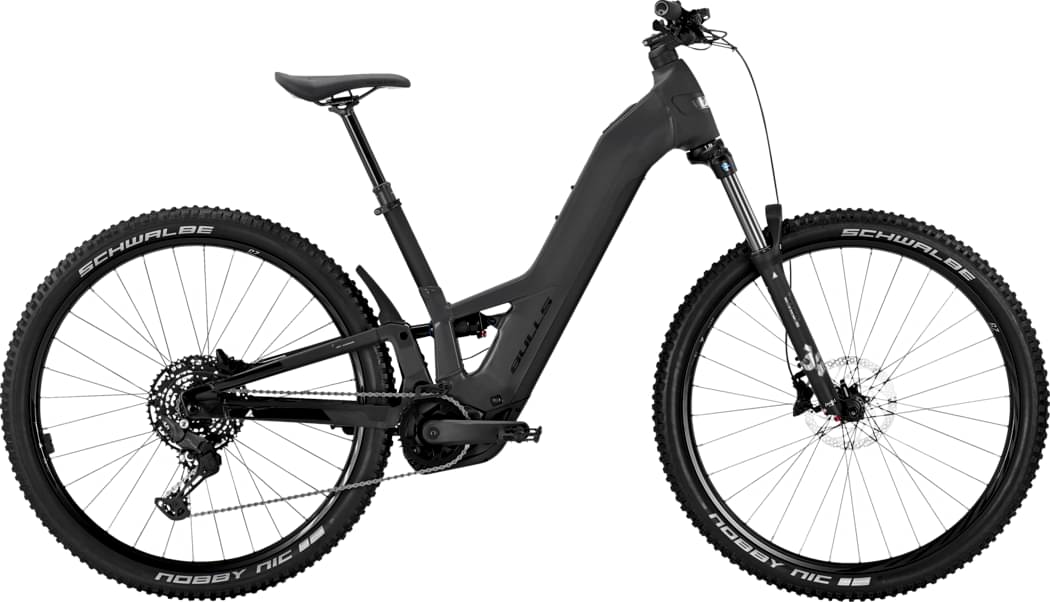

BULLS COPPERHEAD EVO AM 1 29 Wave 2025
2025 E-bike
Estimate price |
5,118$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork BULLS Lytro
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Bulls Lytro 34 Air Boost 2CR DS 15AH2-110
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U6000
Shift Levers
SHIMANO Cues SL-U6000
Cassette
SHIMANO CUES CS-LG300-10 11-48T
Crank
SAMOX EC-53
Chain
SHIMANO Linkglide CN-LG500
Pedals
BULLS MTB pedals
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO DEORE FH-TC500-HM-B Boost
Rims
BULLS DDM-30
Tires
SCHWALBE NOBBY NIC Perf, Folding
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Bulls MTB Stem CCS Slot Mount ready
Handlebar
BULLS Sport-S riser bar
Headset
acros AZX-262 310.52.570R1
Seat
Saddle
Bulls MTB Sport
Seatpost
RUMBLE Escalator, 34.9 mm / XS 100 mm, S 125 mm, M 150 mm, L/XL 170 mm + SL-MT500-L (with clamp)
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Compact charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.537 mm | 1.474 mm |
| Bottom Bracket Height | 339 mm | 332 mm |
| Front Center | 784 mm | 807 mm |
| Rake | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm |
| Stack | 678 mm | 684 mm |
| Reach | 441 mm | 464 mm |
| Top Tube Length | 610 mm | 615 mm |
| Seat Tube Angle | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 160 mm | 160 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1227 mm | 1249 mm |
| Bottom Bracket Drop | 35 mm | 42 mm |
| Wheels | 29" | 29" |
