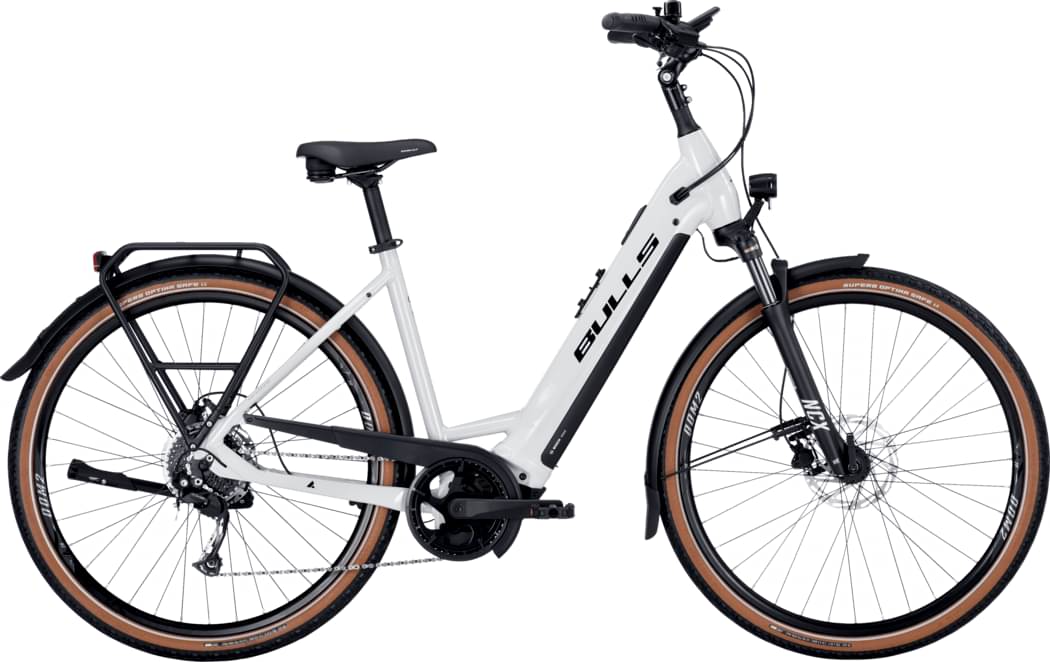

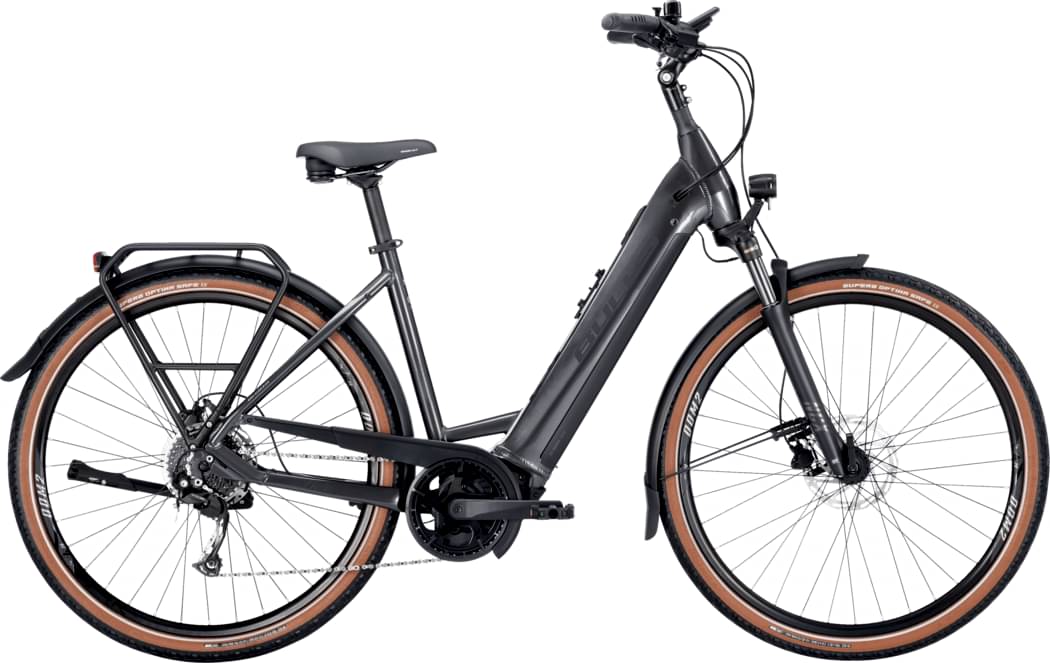

BULLS Cross Lite EVO 1 2023
2023 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NCX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube (Smart System) 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR NCX-32-D LO
Drivetrain
Rear Derailleur
SHIMANO Alivio RD-M3100 shadow
Shift Levers
SHIMANO Alivio SL-M3100
Cassette
SHIMANO CS-HG200-9, 11-36T
Crank
FSA
Chain
KMC, E9S
Pedals
Trekking pedals with aluminium body with 2K plastic cage
Wheels
Front Hub
6-hole mount and quick release
Rear Hub
6-hole mount and quick release
Rims
DDM-2
Tires
SUPERO Optima Safe Anti-Puncture
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
SUV-S, CCS Slot Mount ready
Handlebar
MTB riser bar
Headset
FSA No.57SC
Seat
Saddle
SR Essenza Plus
Seatpost
BULLS Aluminium
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85Nm
Battery
Bosch PowerTube (Smart System) 500
Charger
Bosch standard charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.683 mm | 1.674 mm | 1.701 mm |
| Front Center | 723 mm | 723 mm | 734 mm |
| Rake | 43 mm | 44 mm | 44 mm |
| Trail | 98 mm | 94 mm | 94 mm |
| Stack | 695 mm | 698 mm | 716 mm |
| Reach | 413 mm | 417 mm | 421 mm |
| Top Tube Length | 625 mm | 630 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 180 mm | 180 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1186 mm | 1186 mm | 1197 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
