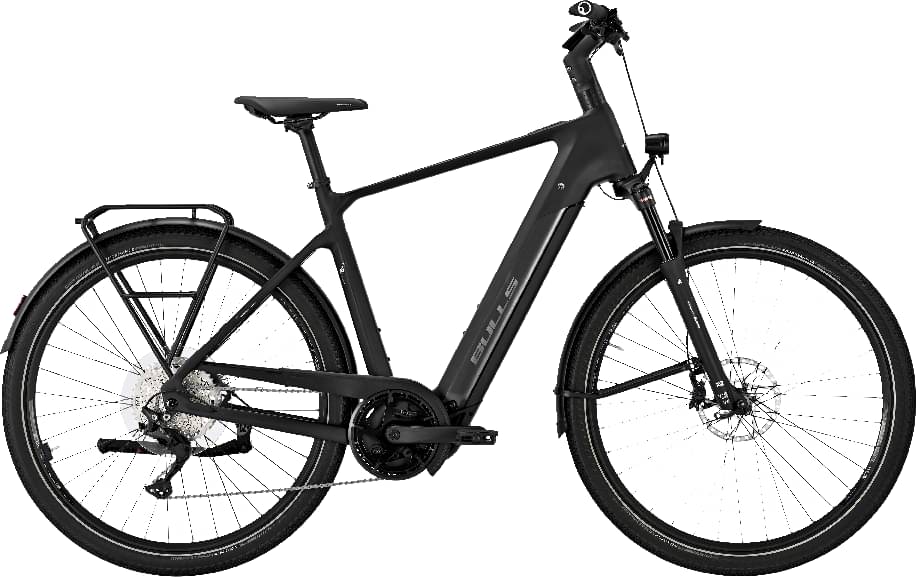

BULLS CROSS LITE EVO CARBON Diamond 2025
2025 E-bike
Estimate price |
6,048$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 100mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
SR SUNTOUR NCX-32-E Air LO
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M5120 shadow
Shift Levers
SHIMANO Deore SL-M4100
Cassette
SHIMANO Deore CS-M4100-10 11-46T
Crank
SAMOX EC-58
Chain
KMC X10EPT
Pedals
Bulls Urban Pedals
Wheels
Front Hub
SHIMANO CUES HB-QC400
Rear Hub
SHIMANO DEORE FH-TC500-HM-B Boost
Rims
RYDE XC-21S Tubeless ready
Tires
SCHWALBE Marathon Almotion Evo V-Guard
Brakes
Brakes
hydraulic disc brake
Cockpit
Handlebar
Holistic Cockpit 10
Headset
FSA NO.55R 1.5”/CR/STD/NO.57
Seat
Saddle
SELLE ROYAL Essenza
Seatpost
RUMBLE Pylonen 31.6mm
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.621 mm | 1.583 mm |
| Front Center | 709 mm | 719 mm | 728 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 679 mm | 679 mm | 679 mm |
| Reach | 409 mm | 419 mm | 429 mm |
| Top Tube Length | 610 mm | 620 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1166 mm | 1176 mm | 1186 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
