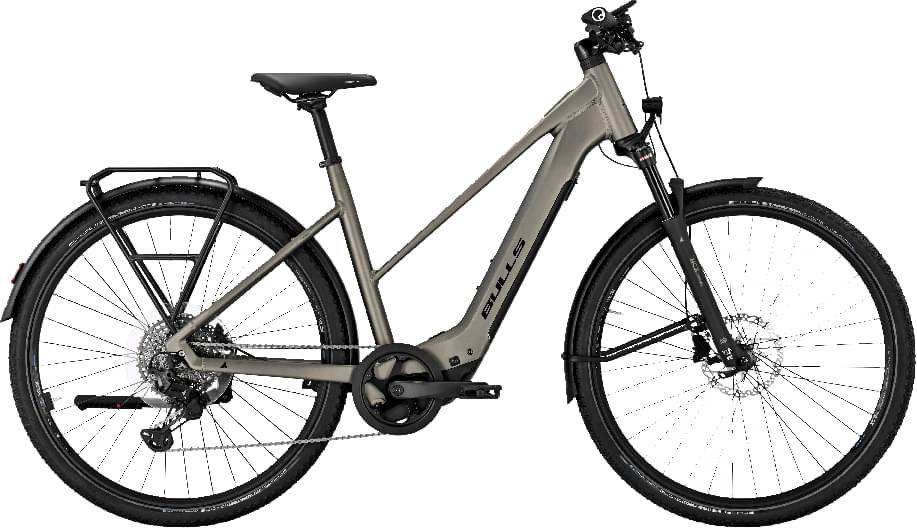

BULLS CROSS LITE EVO SX 2 Trapeze 2025

2025 E-bike
Estimate price | 5,118$
E-bike
Open compare Use advisor
Bulls Cross Lite Evo Sx 2 Trapeze 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 100mm
  • Fork Suntour NCX
  • Groupset XT, CUES
  • Suspension Hardtail
  • Motor Bosch 600W 55Nm mid-drive
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 170cm

  • MD

    168cm - 179cm

  • LG

    176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium

Suspension Fork

SR SUNTOUR NCX-32-E Air LO

Drivetrain

Rear Derailleur

SHIMANO DEORE XT RD-M8130 shadow+

Shift Levers

SHIMANO Cues SL-U6000

Cassette

SHIMANO Cues, CS-LG400-11, 11-45t

Crank

SAMOX EC-58

Chain

SHIMANO Linkglide CN-LG500

Pedals

Bulls Urban Pedals

Wheels

Front Hub

SHIMANO CUES HB-QC400

Rear Hub

SHIMANO CUES FH-QC400 Boost

Rims

RYDE XC-21S Tubeless ready

Tires

SCHWALBE G-ONE OVERLAND 365, RaceGuard, TLE

Brakes

Brakes

hydraulic disc brake

Cockpit

Stem

Rumble Altimate

Handlebar

RUMBLE Altimate 35 Riser

Headset

ACROS 320.52.569 IS52/28,6/ICR - ZS56/40/IPS

Seat

Saddle

SELLE ROYAL Essenza

Seatpost

RUMBLE Pylonen 31.6mm

Motor & Battery

Motor

Bosch Performance Line SX (Smart System) 25/55 Nm

Charger

Bosch Compact charger 2A

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLG
Stack Reach Ratio
1.656 mm1.642 mm1.629 mm
Front Center
714 mm715 mm714 mm
Rake
45 mm45 mm45 mm
Trail
95 mm94 mm92 mm
Stack
679 mm678 mm676 mm
Reach
410 mm413 mm415 mm
Top Tube Length
600 mm610 mm620 mm
Seat Tube Angle
74.4 °73.8 °73.1 °
Seat Tube Length
450 mm500 mm550 mm
Head Tube Angle
67.6 °67.8 °68 °
Head Tube Length
160 mm160 mm160 mm
Chainstay Length
465 mm465 mm465 mm
Wheelbase
1171 mm1172 mm1172 mm
Bottom Bracket Drop
67 mm65 mm62 mm
Wheels700700700
Rider Min Height158 cm168 cm176 cm
Rider Max Height170 cm179 cm187 cm
