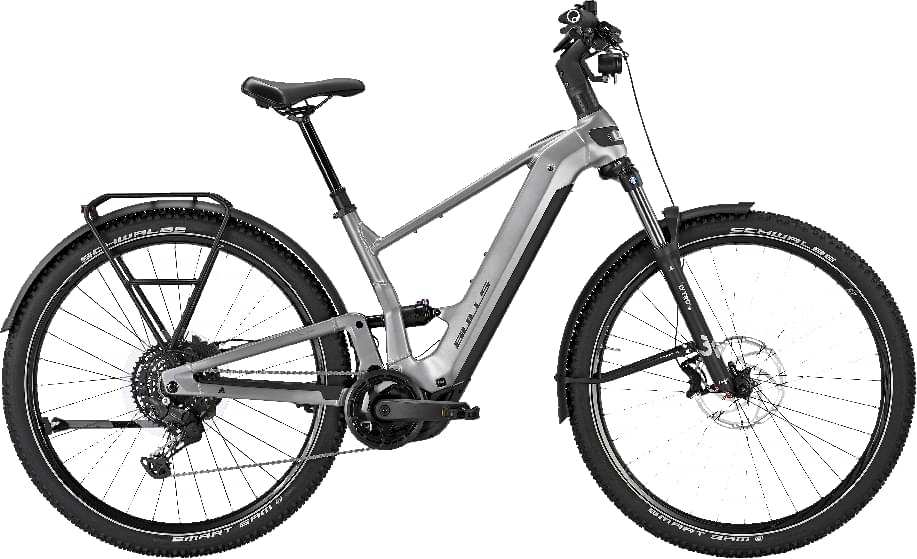

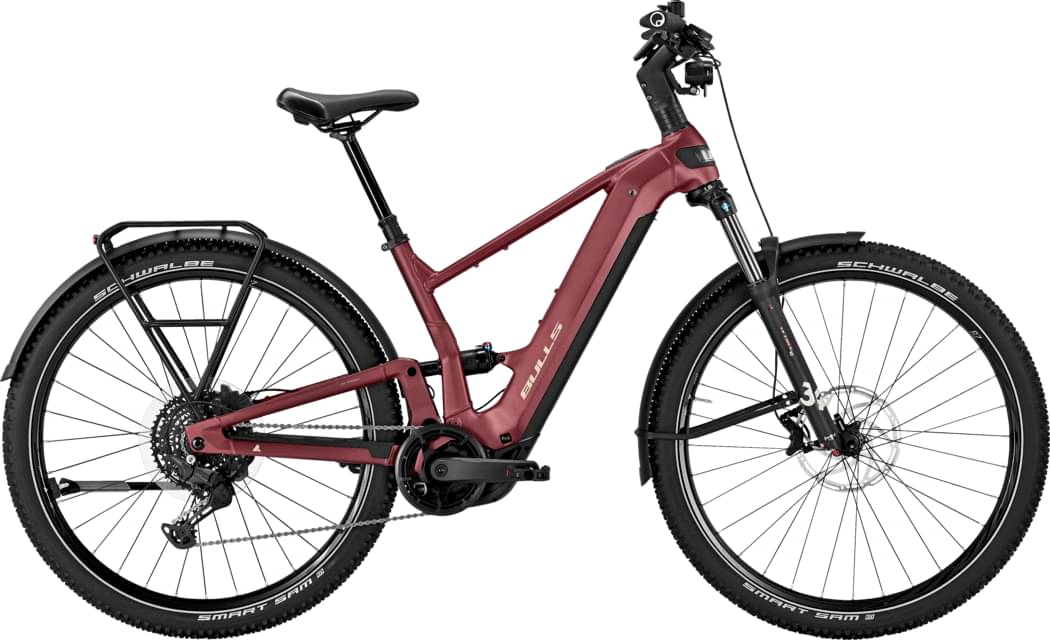

BULLS ICONIC EVO FS 1 29 2025
2025 E-bike
Estimate price |
6,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork BULLS Lytro
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
BULLS Lytro 34 Air LOR, 1.8 Steerer, Boost
Drivetrain
Rear Derailleur
SHIMANO Cues RD-U6000
Shift Levers
SHIMANO Cues SL-U6000
Cassette
SHIMANO CUES CS-LG300-10 11-48T
Crank
SAMOX EC-53
Chain
SHIMANO Linkglide CN-LG500
Pedals
Bulls Iconic
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO DEORE FH-TC500-HM-B Boost
Rims
BULLS DDM-30
Tires
SCHWALBE Smart Sam K-Guard
Brakes
Brakes
hydraulic disc brake
Cockpit
Handlebar
Holistic Cockpit 10
Headset
FSA NO.72/55R 1.8” /CUP/CR
Seat
Saddle
BULLS Iconic SUV
Seatpost
RUMBLE Escalator, 34.9 mm / S 125mm, M 150mm, L/XL 170 mm + SL-MT500-L (with clamp)
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.397 mm | 1.403 mm | 1.343 mm |
| Front Center | 743 mm | 752 mm | 775 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 617 mm | 619 mm | 641 mm | 646 mm |
| Reach | 434 mm | 443 mm | 457 mm | 481 mm |
| Top Tube Length | 605 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1186 mm | 1195 mm | 1217 mm | 1240 mm |
| Bottom Bracket Drop | 35 mm | 37 mm | 41 mm | 46 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
