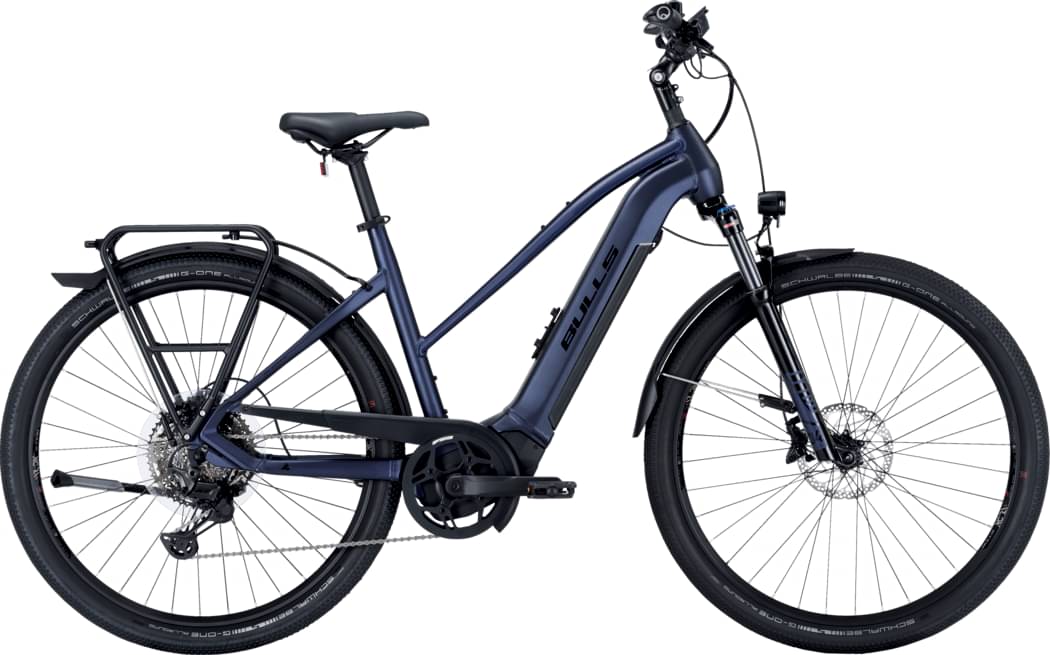

BULLS Lacuba EVO SUV 11 2023

2023 E-bike
Estimate price | 5,275$
E-bike
Open compare Use advisor
Bulls Lacuba Evo Suv 11 2023

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 100mm
  • Fork BULLS Lytro
  • Groupset XT
  • Suspension Hardtail
  • Motor Brose 90Nm mid-drive
  • Drivetrain 1 × 11
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 170cm

  • MD

    168cm - 179cm

  • LG

    176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminium

Suspension Fork

BULLS Lytro 34 Air LOR, Boost

Drivetrain

Rear Derailleur

SHIMANO Deore XT LinkGlide RD-M8130 shadow+

Shift Levers

SHIMANO Deore XT LinkGlide SL-M8130, rapidfire+

Cassette

SHIMANO Deore Linkglide 11-speed, 11-50T

Crank

FSA

Chain

SHIMANO Linkglide CN-LG500

Pedals

Urban pedals with griptape

Wheels

Front Hub

SHIMANO HB-MT400-B Centre Lock

Rear Hub

SHIMANO Deore FH-M6000QR Centre Lock

Rims

XC-21 Evo, tubeless ready

Tires

SCHWALBE G-One Allround

Brakes

Brakes

hydraulic disc brake

Cockpit

Stem

SUV-S, CCS Slot Mount ready

Handlebar

ZECURE Sport-SL

Headset

FSA no.57

Seat

Saddle

ZECURE Comfort Men/ Comfort Women / Comfort Plus

Seatpost

Aluminium

Motor & Battery

Motor

BROSE FIT S-Mag PRO 25/90Nm

Charger

FIT charger 4A

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLG
Stack Reach Ratio
1.515 mm1.579 mm1.607 mm
Front Center
701 mm703 mm715 mm
Rake
42 mm41 mm42 mm
Trail
96 mm97 mm96 mm
Stack
638 mm657 mm675 mm
Reach
421 mm416 mm420 mm
Top Tube Length
610 mm610 mm620 mm
Seat Tube Angle
73.5 °73.5 °73.5 °
Seat Tube Length
450 mm500 mm550 mm
Head Tube Angle
68 °68 °68 °
Head Tube Length
140 mm160 mm180 mm
Chainstay Length
465 mm465 mm465 mm
Wheelbase
1158 mm1160 mm1172 mm
Bottom Bracket Drop
65 mm65 mm65 mm
Wheels29"29"29"
Rider Min Height158 cm168 cm176 cm
Rider Max Height170 cm179 cm187 cm
