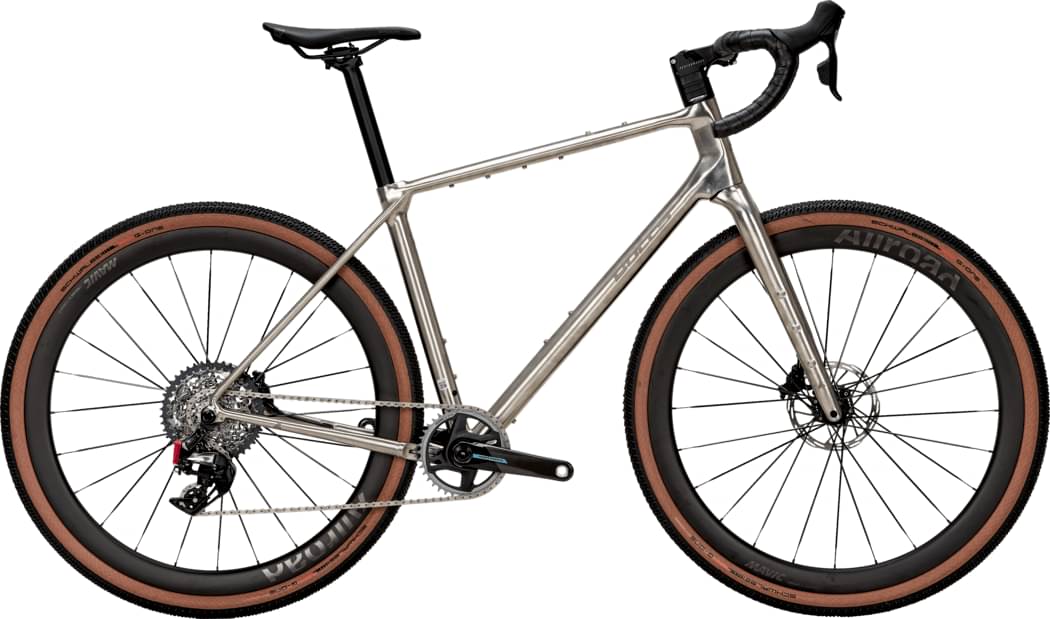

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Force, Force XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titan
Suspension Fork
Mache-Ti Titanium
Drivetrain
Rear Derailleur
SRAM Force XPLR ETAP AXS
Shift Levers
SRAM Force eTap AXS
Cassette
SRAM XG-1271 XPLR 10-44T
Crank
SRAM Force 38T
Chain
SRAM Force 12S
Wheels
Rims
MAVIC Allroad SL Carbon
Tires
SCHWALBE G-One R Evo, Super Race, V-Guard, TLE
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Bulls RRi / GRi Stem CCS Slot Mount ready
Handlebar
Bulls Raptor
Headset
FSA, ORBIT 1.5 ACR (NO.55R 1.5”/ACR/STD
Seat
Saddle
ERGON SR10
Seatpost
30.9 mm Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.458 mm | 1.494 mm | 1.484 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 616 mm | 642 mm | 660 mm | 685 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 562 mm | 586 mm | 614 mm | 635 mm |
| Reach | 385 mm | 402 mm | 411 mm | 428 mm |
| Top Tube Length | 546 mm | 570 mm | 587 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 180 mm | 203 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1039 mm | 1065 mm | 1084 mm | 1109 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
