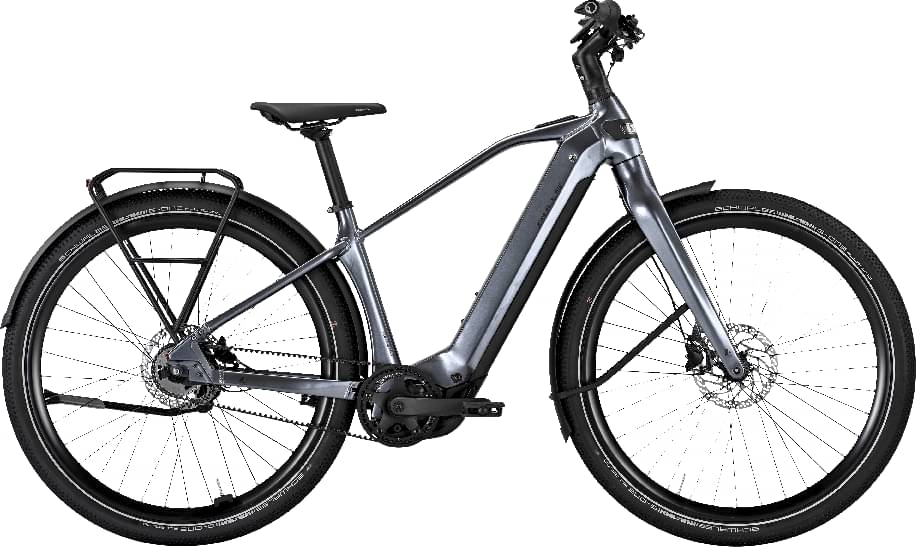

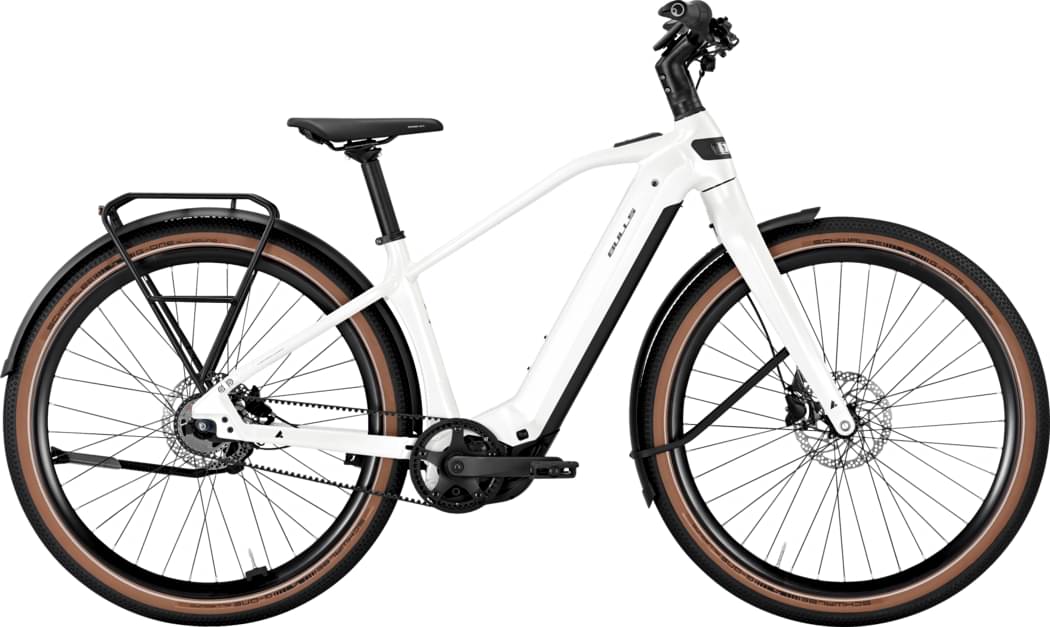

BULLS STURMVOGEL EVO 2025
2025 E-bike
Estimate price |
5,118$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Sturmvogel rigid alloy
Drivetrain
Shift Levers
SHIMANO Nexus SL-C7000 Revoshift
Cassette
GATES ® CDX, 32T
Crank
SAMOX EC-58
Pedals
Bulls Urban Pedals
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO Nexus 5-speed hub gears
Rims
Bulls SLD-30
Tires
SCHWALBE G-One Allround
Brakes
Brakes
hydraulic disc brake
Cockpit
Handlebar
Holistic Cockpit 10
Headset
FSA NO.72/55R 1.8” /CUP/CR
Seat
Saddle
SELLE ROYAL Essenza
Seatpost
BULLS Aluminium 34.9 mm
Motor & Battery
Motor
Bosch Performance Line CX GEN5 (Smart System) 25/85 Nm
Charger
Bosch Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.455 mm | 1.421 mm |
| Front Center | 693 mm | 703 mm | 713 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 624 mm | 624 mm | 624 mm |
| Reach | 419 mm | 429 mm | 439 mm |
| Top Tube Length | 610 mm | 620 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1138 mm | 1148 mm | 1158 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
