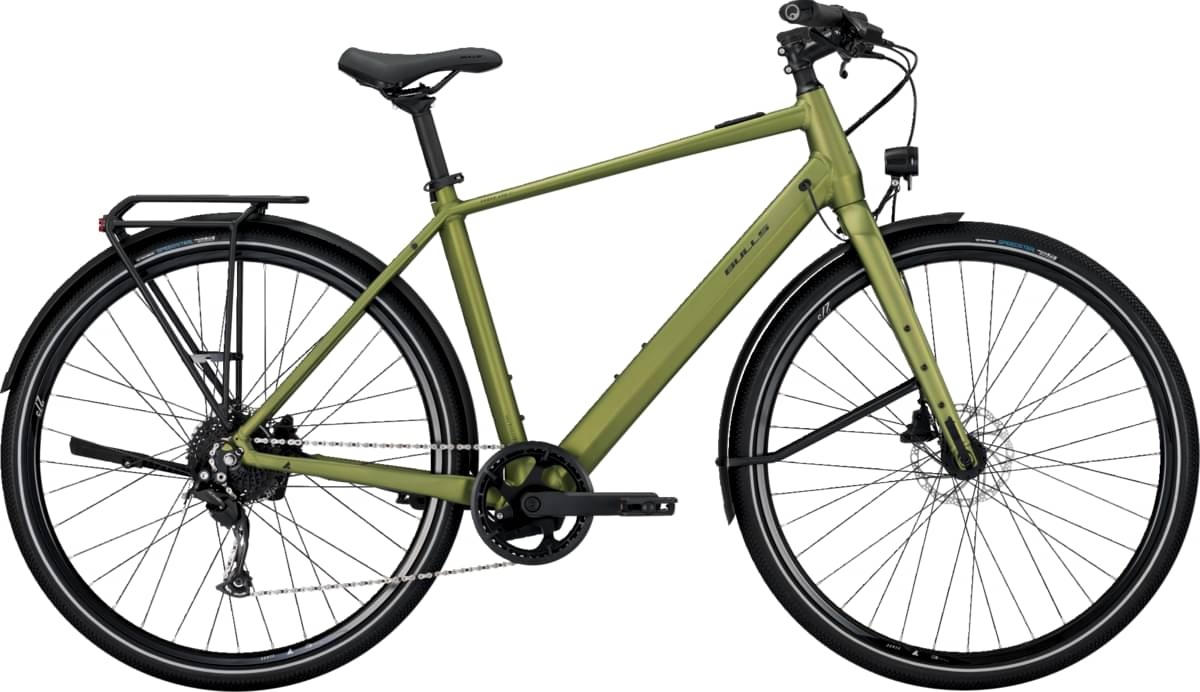

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio -
Suspension Rigid -
Motor Bafang 30Nm mid-drive -
Battery FIT SuperTube 550 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Grinder Aluminium
Drivetrain
Rear Derailleur
SHIMANO Acera RD-M3100
Shift Levers
SHIMANO Alivio SL-M3100
Cassette
SHIMANO CS-HG200, 11-36T
Crank
SAMOX EC38
Chain
KMC E9S
Pedals
Wellgo platform pedals
Wheels
Front Hub
FORMULA DC-20FQR
Rear Hub
BAFANG H600
Rims
BULLS DDM-22
Tires
VEE TIRE CO. Speedster
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
BULLS Ahead Vorbau
Handlebar
Urban Comfort
Headset
FSA ORBIT C40ACB (NO.42/ACB)
Seat
Saddle
BULLS Sportive Ergo
Seatpost
30,9mm Aluminium
Motor & Battery
Motor
BAFANG R600 25/30Nm
Battery
FIT SuperTube 550
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
