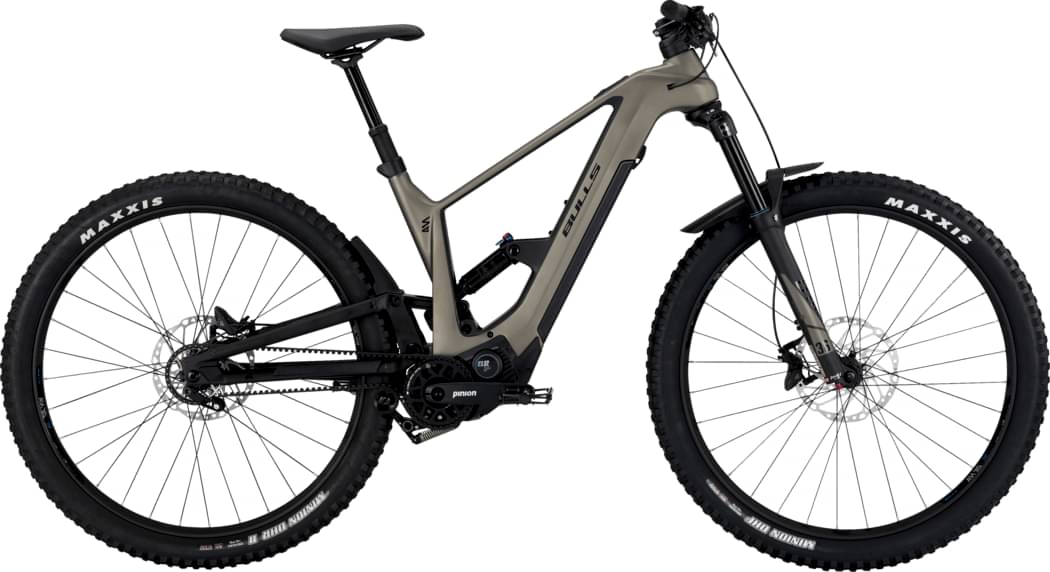

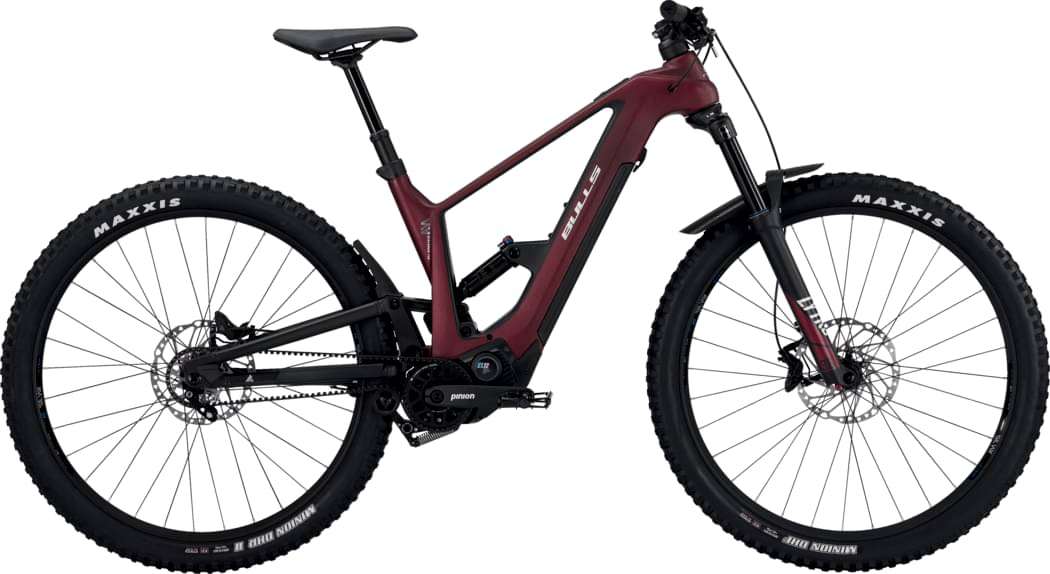

BULLS VUCA EVO AM 1 2025
2025 E-bike
Estimate price |
8,957$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork BULLS Lytro
-
Groupset Pinion -
Suspension Full -
Motor hub-drive -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Bulls Lytro 36 Supreme SL 1.8 Steerer, Boost EQ 2CR-PCS DS 15LH-110
Drivetrain
Shift Levers
PINION TE1
Cassette
GATES ® CDX, 32T
Crank
PINION P8512
Bottom Bracket
Pinion, press-fit
Pedals
ZECURE
Wheels
Front Hub
FORMULA CL-811
Rear Hub
FORMULA ECL-52 Boost
Rims
RUMBLE Impeller 33 tubeless ready
Tires
MAXXIS® Minion DHF AM, EN / MAXXIS® Minion DHR2 AM, EN
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Bulls MTB Stem CCS Slot Mount ready
Handlebar
BULLS Enduro Carbon
Headset
acros AZX-262 310.52.570R1
Seat
Saddle
SELLE ROYAL Vivo Ergo
Seatpost
RUMBLE Escalator, 34.9 mm / S 125 mm, M,L 150 mm , XL 170mm+ SL-MT500-IL for I-spec EV
Motor & Battery
Motor
FIT PINION MGU E1.12
Charger
FIT charger 3A, 48V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.416 mm | 1.385 mm | 1.365 mm | 1.36 mm |
| Front Center | 757 mm | 767 mm | 789 mm | 812 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 107 mm | 107 mm | 108 mm | 108 mm |
| Stack | 626 mm | 626 mm | 640 mm | 658 mm |
| Reach | 442 mm | 452 mm | 469 mm | 484 mm |
| Top Tube Length | 610 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 540 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1210 mm | 1220 mm | 1242 mm | 1265 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
