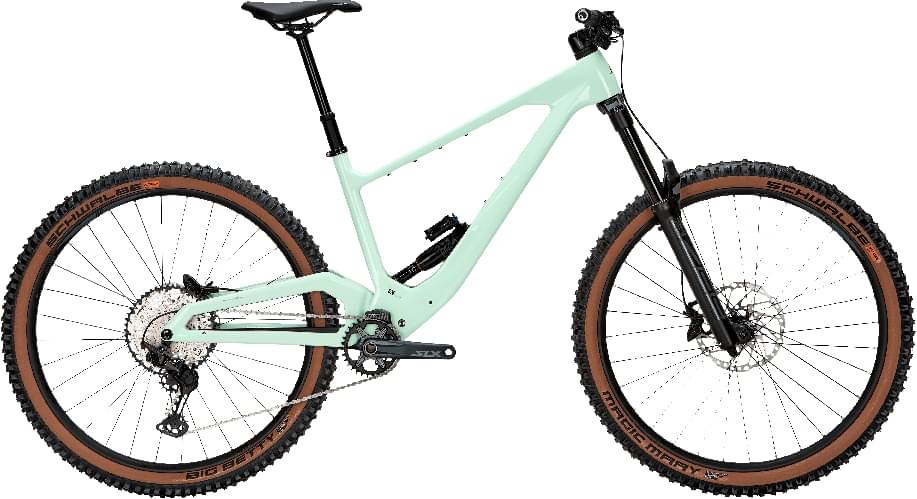

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
RockShox ZEB
Drivetrain
Rear Derailleur
SHIMANO Deore XT RD-M8100 shadow+
Shift Levers
SHIMANO SLX SL-M7100, rapidfire+, I-Spec EV
Cassette
SHIMANO SLX CS-M7100-12 10-51T
Crank
SHIMANO SLX FC-M7120 32T
Chain
SHIMANO SLX CN-M7100--12
Wheels
Front Hub
SHIMANO DEORE HB-TC50015B
Rear Hub
SHIMANO DEORE FH-TC500-MS-B Boost
Rims
RODI TRYP30 evo
Tires
SCHWALBE Magic Marry Super/ Big Betty Super gravity soft
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Rumble Altimate
Handlebar
RACE FACE Aeffect R
Headset
ACROS 320.52.569 IS52/28,6/ICR - ZS56/40/IPS
Seat
Saddle
BULLS Sportive Ergo
Seatpost
RUMBLE Escalator PRO, 31.6 mm / S 150 mm, M/L/XL 170 mm + SL-MT500-L (with clamp)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.361 mm | 1.323 mm | 1.271 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 767 mm | 794 mm | 818 mm | 855 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 621 mm | 626 mm | 635 mm | 648 mm |
| Reach | 435 mm | 460 mm | 480 mm | 510 mm |
| Top Tube Length | 567 mm | 593 mm | 615 mm | 648 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1205 mm | 1232 mm | 1256 mm | 1293 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
