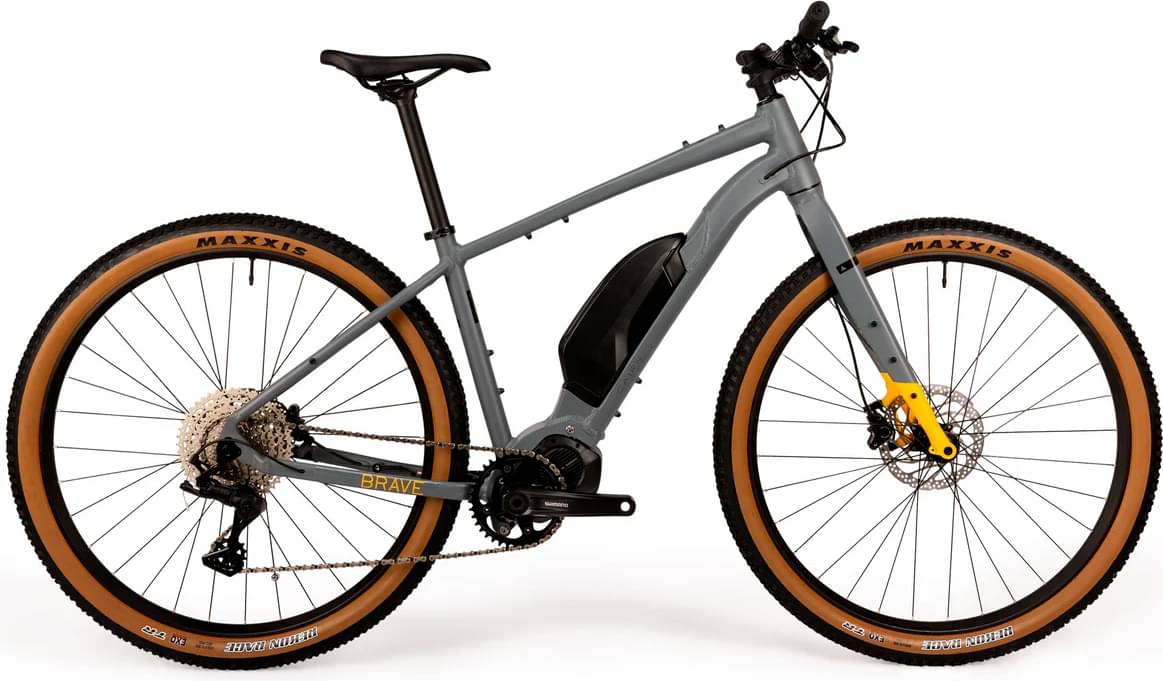

cairn BRAVe 2.0 Flat Bar 2024
2024 E-bike
Estimate price |
3,157$
Weight | 17.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT8016 630wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 alloy with Fully internal cable routing, Mounts for 3 x Bottle Cage (2 x on Small Size), Top tube fuel bag, Kickstand, Rack and Fenders.
Suspension Fork
Full Alloy with Mount for Anything cages, Fenders and Rack.
Drivetrain
Rear Derailleur
SRAM Apex 1 11 Speed
Shift Levers
SRAM Apex 1 11 Speed
Cassette
Sunrace 11-42t
Crank
Shimano SM-CRE80 38t
Chain
KMC X11
Wheels
Front Hub
Formula Boost Sealed Bearing Hubs, 32H
Rear Hub
Formula Boost Sealed Bearing Hubs, 32H
Rims
Ryde Disc 30 Tubeless Rims
Tires
Maxxis Rekon Race 29 x 2.35 EXO TR Tanwall
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc
Cockpit
Stem
Cairn Adventure 60mm, 7 Degrees, 31.8mm
Handlebar
Ritchey Beacon Comp, 80mm Drop, 65mm Reach, 36 Degree Flare, 4.5 degree Backsweep
Seat
Seatpost
Cairn Alloy 30.9mm 0mm Offset
Motor & Battery
Motor
Shimano Steps E7000
Battery
Shimano BT8016 630wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
