Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Motor 250W hub-drive -
Battery Promovec 50762-BL-C DT1 - 36V - 7.8AH -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061, 27.5”, 138mm spacing for Promovec hub motor, Post-mount disc, 44mm headtube
Suspension Fork
Alu 6061, 100mm QR, IS disc mount, rack & mudguard mounts, 28.6mm steerer, 50mm offset, 410 A2C
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000GS 8 speed
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris STR2000
Cassette
Shimano 8 speed, 11 - 34
Crank
Calibre 170mm crank, 50x34 chainring
Bottom Bracket
External 73mm BB
Chain
KMC Z8
Pedals
Flat pedals
Wheels
Front Hub
Shun Feng 32H QR SFA217F
Rear Hub
Promovec 250W hub motor
Rims
29”, 25mm wide, 32h front, 36h rear, alu double wall
Tires
WTB Horizon 650x47 W110-0952
Brakes
Brakes
Front: Clarks CMD-23, Rear: Clarks CMD-23
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 60mm extension
Handlebar
Calibre gravel, Alloy 490 wide
Grips
Black cork bar tape
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail, steel rails
Seatpost
Calibre Trail 30.9 x 350mm
Motor & Battery
Motor
Promovec 250W hub motor
Battery
Promovec 50762-BL-C DT1 - 36V - 7.8AH
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

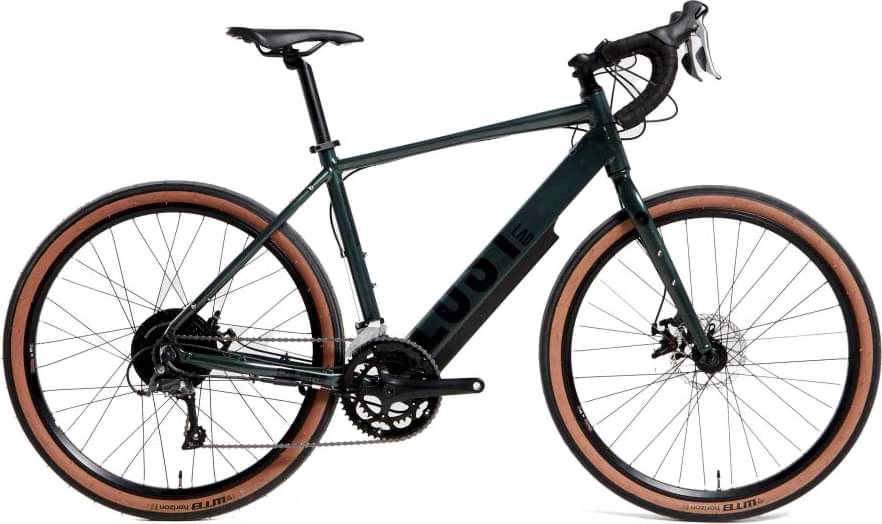

E-Lost Lad belongs to the Calibre E E Lost model. Calibre launched 1 e-bike of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the E-Lost Lad model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Lost Lad comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
