Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 44mm -
Fork Suntour XCM
-
Groupset Alivio, Shimano -
Suspension Full -
Motor 250W hub-drive -
Battery Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29”, 138 spacing for hub motor, Post-mount disc, 44mm headtube
Suspension Fork
SR Suntour SF15 XCM forks with 100mm of travel
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed direct mount
Front Derailleur
Shimano Dual pull 34.9 - 31.8 / 36-14T
Shift Levers
Shimano Alivio 9 speed for 2x9
Cassette
Shimano 9 speed Acera 11-34t
Crank
Calibre 175mm 22x36T
Bottom Bracket
Square Taper 73mm
Chain
KMC X9
Pedals
Flat Pedals
Wheels
Front Hub
Alu, black, 36h, 6 bolt disc, 100mm QR
Rims
29”, 25mm wide, 32h, alu double wall
Tires
Obor Mike Bear 29” x 2.25” Tan wall
Brakes
Brakes
Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail
Seatpost
Calibre Trail 30.9 x 350mm
Motor & Battery
Motor
Promovec 250W/ 36V hub motor 135mm, 24mm Nut, 36h, 50971-BL
Battery
Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

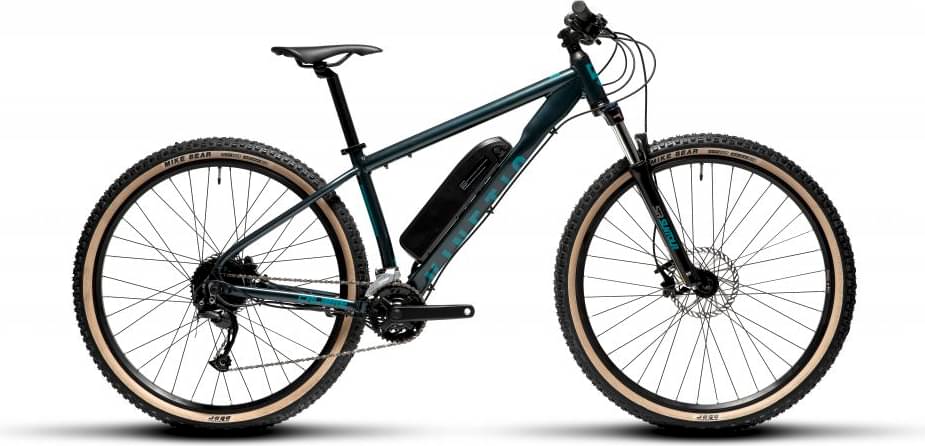

Kinetic T2 is a Calibre E Kinetic model. 2 e-bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Kinetic T2 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Calibre Kinetic T2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
