Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 44mm -
Fork Suntour XCM
-
Groupset Alivio, Shimano -
Suspension Full -
Motor 250W hub-drive -
Battery Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29”, 138 spacing for hub motor, Post-mount disc, 44mm headtube
Suspension Fork
SR Suntour SF15 XCM forks with 100mm of travel
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed direct mount
Front Derailleur
Shimano Dual pull 34.9 - 31.8 / 36-14T
Shift Levers
Shimano Alivio 9 speed for 2x9
Cassette
Shimano 9 speed Acera 11-34t
Crank
Calibre 175mm 22x36T
Bottom Bracket
Square Taper 73mm
Chain
KMC X9
Pedals
Flat Pedals
Wheels
Front Hub
Alu, black, 36h, 6 bolt disc, 100mm QR
Rims
29”, 25mm wide, 32h, alu double wall
Tires
Obor Mike Bear 29” x 2.25” Tan wall
Brakes
Brakes
Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail
Seatpost
Calibre Trail 30.9 x 350mm
Motor & Battery
Motor
Promovec 250W/ 36V hub motor 135mm, 24mm Nut, 36h, 50971-BL
Battery
Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

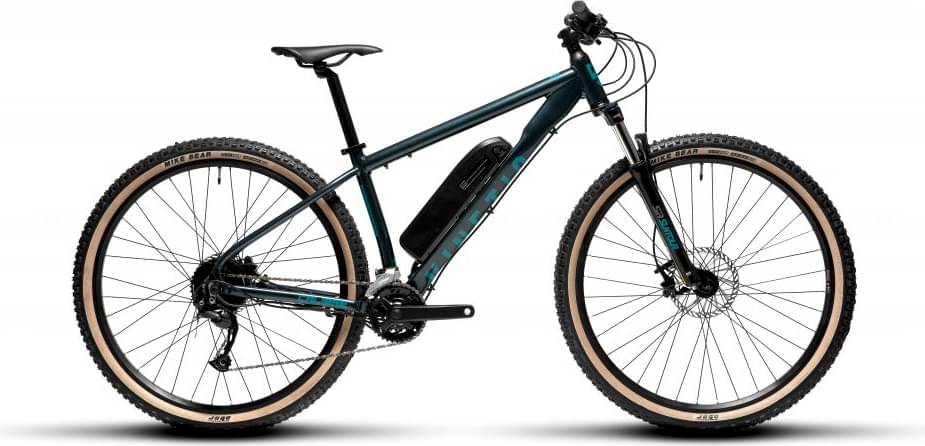

Kinetic T2 is part of the Calibre E Kinetic model. 2 e-bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The Kinetic T2 comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Kinetic T2 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kinetic T2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Calibre Kinetic T2 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
