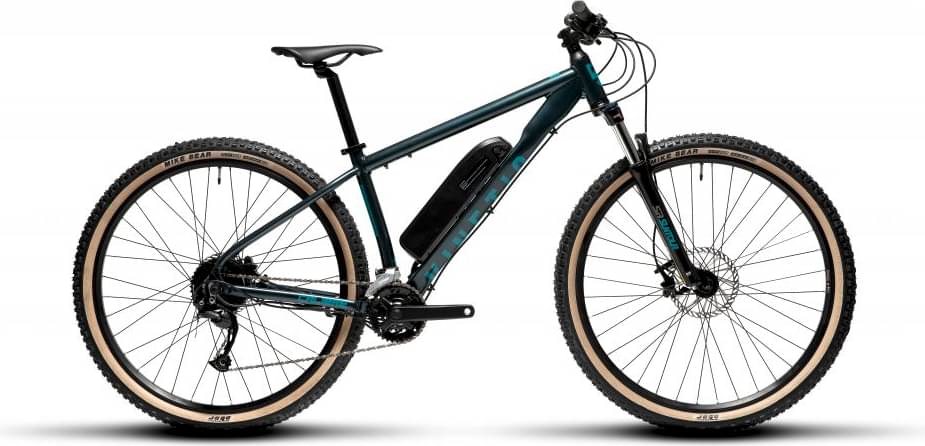

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 44mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Full -
Motor 250W hub-drive -
Battery Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 29”, 138 spacing for hub motor, Post-mount disc, 44mm headtube
Suspension Fork
SR Suntour SF15 XCM forks with 100mm of travel
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed direct mount
Front Derailleur
Shimano Dual pull 34.9 - 31.8 / 36-14T
Shift Levers
Shimano Alivio 9 speed for 2x9
Cassette
Shimano 9 speed Acera 11-34t
Crank
Calibre 175mm 22x36T
Bottom Bracket
Square Taper 73mm
Chain
KMC X9
Pedals
Flat Pedals
Wheels
Front Hub
Alu, black, 36h, 6 bolt disc, 100mm QR
Rims
29”, 25mm wide, 32h, alu double wall
Tires
Obor Mike Bear 29” x 2.25” Tan wall
Brakes
Brakes
Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Semi-integrated, ZS44
Seat
Saddle
Calibre Trail
Seatpost
Calibre Trail 30.9 x 350mm
Motor & Battery
Motor
Promovec 250W/ 36V hub motor 135mm, 24mm Nut, 36h, 50971-BL
Battery
Promovec 50790 - BL - DT2 - 36V - 8.8AH - 317Wh - 60km
Charger
Battery charger 36V for DT2 V1
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
