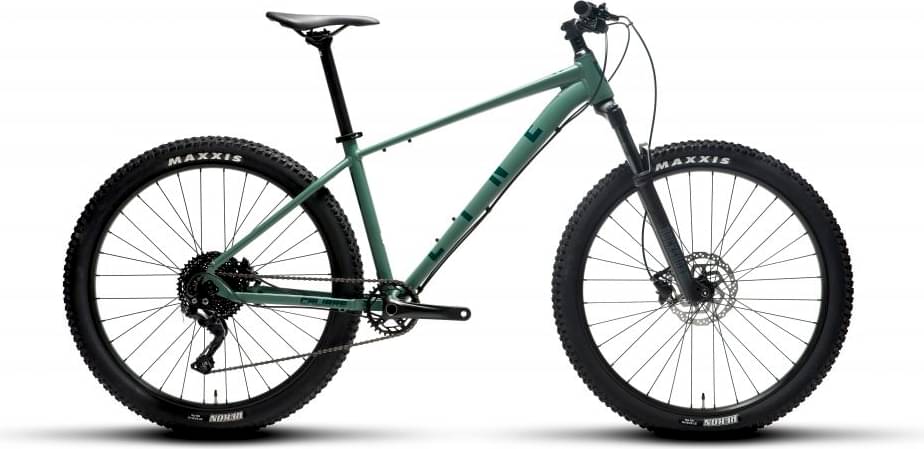

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alu 6061 27.5”, 142 Thru Axle, Post-mount disc, 44/56 tapered headtube
Suspension Fork
RockShox FS-RECON SILVER-RL, 42 offset, 120mm travel, 15x100mm Thru-axle
Drivetrain
Rear Derailleur
Shimano Deore 10 speed Shadow Plus - KRDM6000GS
Shift Levers
Shimano Deore - KSLM6000RA
Cassette
Sunrace CSMS2 TAY 10 Speed,11-42T
Crank
Calibre 170mm crank, 32T chainring, 104 BCD
Bottom Bracket
External 73mm BSA BB
Chain
Shimano 10 speed - KCNHG54116
Pedals
Flat pedals
Wheels
Front Hub
Shimano HB-MT400, centre lock disc, 32h, 15x100mm thru-axle
Rear Hub
Shimano FH-MT400, centre lock disc, 8-11 speed, 12x142mm thru-axle
Rims
27.5”, 30mm wide, 32h, alu double wall, tubeless ready
Tires
Maxxs Rekon 27.5” x 2.4”
Brakes
Brakes
Front: Shimano MT201 - AMT201KRF9RX085, Rear: Shimano MT201 - AMT201KLRXRX145
Cockpit
Stem
Calibre Trail, 31.8mm clamp, 45mm extension
Handlebar
Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Grips
Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset
Tapered, Semi-integrated, ZS44 / ZS56
Seat
Saddle
Calibre Trail, steel rails
Seatpost
Calibre Trail 30.9 x 350mm
Fit data
Geometry
