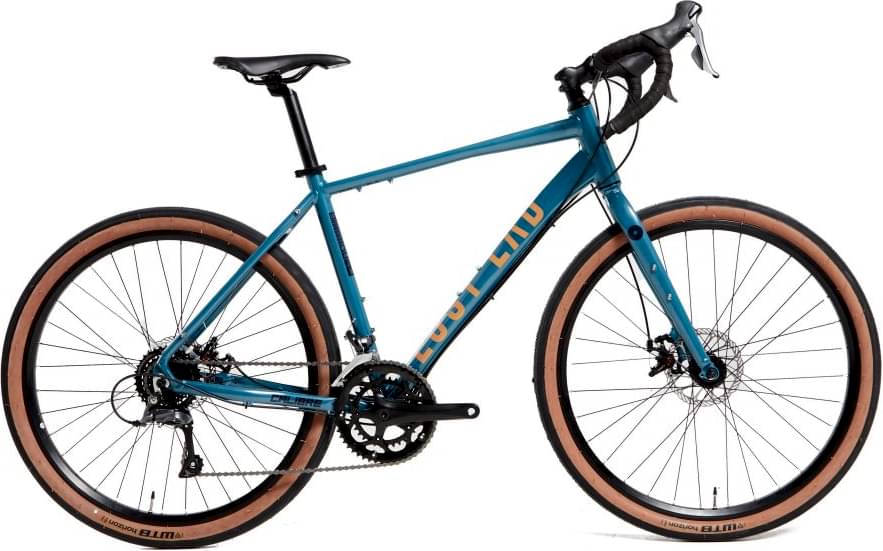

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 alloy, long and slack geometry, mudguard & rack mounts
Suspension Fork
Alloy QR disc fork with mudguard and rack mounts
Drivetrain
Rear Derailleur
Shimano Claris 8 speed
Front Derailleur
Shimano Claris 2x8 speed, 34.9mm clamp
Shift Levers
Shimano Claris STI style
Crank
Prowheel Ounce 50 x 34T, 170mm alloy crank
Pedals
Flat pedals
Wheels
Front Hub
Shun feng, QR, 6 bolt, 32h, 9x100x108mm QR
Rear Hub
Shun Feng, 6 bolt disc, 36h, M10x135x145mm QR
Rims
Double wall alloy 25mm I.D
Tires
WTB Horizon Comp 47C
Brakes
Brakes
Clarks CMD-22 with 160mm wavy rotors
Cockpit
Stem
Calibre 60mm
Handlebar
Calibre adventure alloy, 490mm wide 31.8mm clamp
Seat
Saddle
Calibre
Seatpost
30.9mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 380 mm | 395 mm | 410 mm | 424 mm |
| Top Tube Length | 544 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
