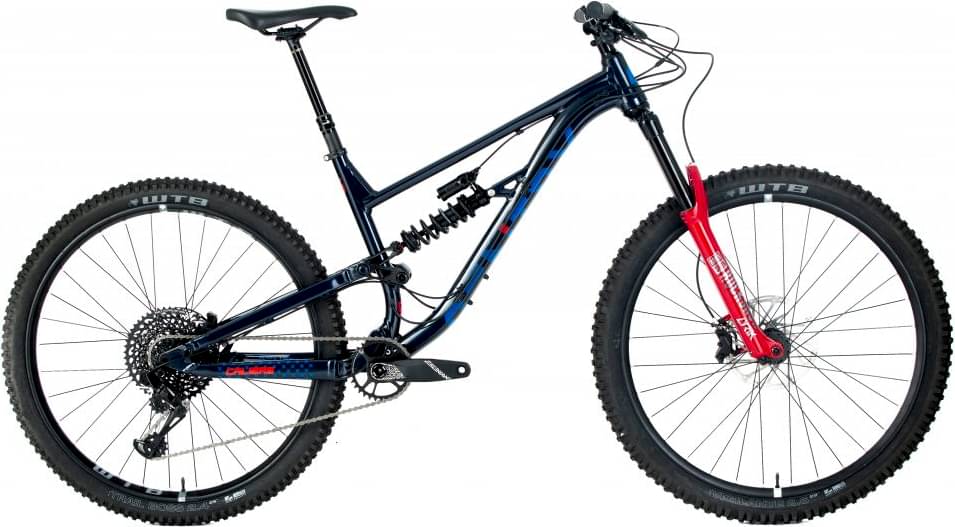

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29” 6061 Alloy, 150mm rear wheel travel, 148 x 12mm bolt through
Suspension Fork
Rock Shox Lyric Ultimate 160mm 42mm Offset
Rear Shock
Rock Shox Super Deluxe Coil Ultimate Remote 230 x 62.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle
Crank
SRAM Descendant 6K DUB 32T
Pedals
Alloy platform pedal (test pedals)
Wheels
Front Hub
Formula Boost, bolt through, Sealed bearings
Rear Hub
Formula Boost, bolt through, Sealed bearings
Rims
WTB AYSM i29 TCS 2.0 32H Tubeless ready
Tires
Front: Vee Flow 2.6" Snap Takee compound, tubeless ready, Rear: Vee Flow 2.6" Snap Takee compound, tubeless ready
Brakes
Brakes
SRAM Code R brakes with 200mm front and 180mm rear rotors
Cockpit
Stem
SRAM Descendant 40mm
Handlebar
SRAM Descendant 800mm width 25mm rise
Headset
FSA Orbit tapered No. 57E
Seat
Saddle
Calibre Sentry
Seatpost
Rock Shox Reverb 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 775 mm | 797 mm | 820 mm | 842 mm |
| Seat Tube Angle | 76.2 ° | 76 ° | 76 ° | 75.8 ° |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 97 mm | 102 mm | 102 mm | 102 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1218 mm | 1240 mm | 1263 mm | 1285 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
