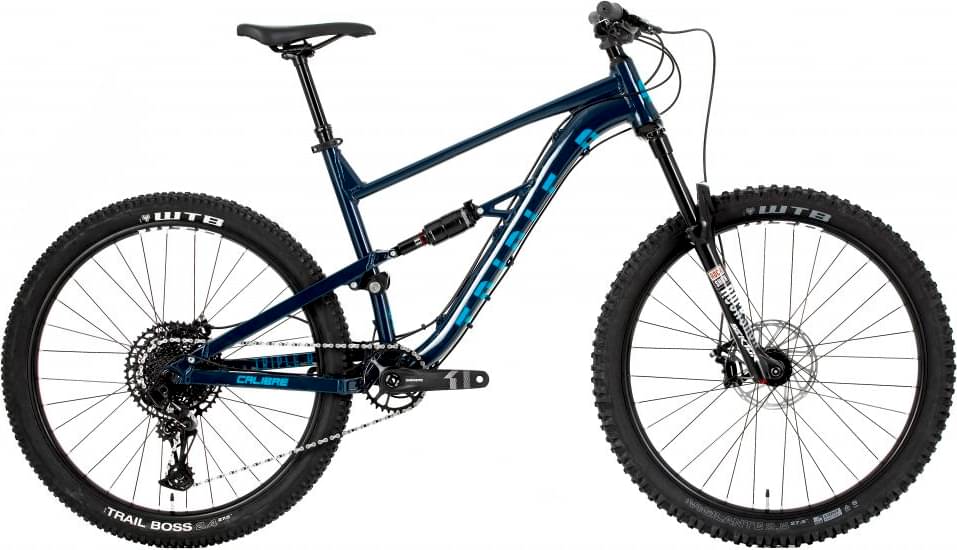

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Hydroformed alloy frame, tapered headtube, forged rockerlink,130mm travel, 12x142mm bolt through rear end.
Suspension Fork
Rockshox Sector RL (Boost) 140mm, alloy tapered steerer, 15x110mm Maxle, gloss black, fast black stanchions.
Rear Shock
Rockshox Monarch RS, custom tune, 130mm travel, 190x51 eye to eye, gloss black.
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM Eagle 12 speed, 11-50T
Crank
SRAM DUB, 170, 32T
Pedals
Platform pedals
Wheels
Front Hub
Formula 32H
Rear Hub
Formula 32H
Rims
WTB ST i29 TCS 2.0
Tires
WTB Vigilante TCS light, High grip
Brakes
Brakes
SRAM Guide RE
Cockpit
Stem
Calibre 45mm length, 31.8mm bar
Handlebar
Calibre Alloy, 780mm length, 30mm rise, 31.8mm OD
Headset
No 57E Orbit tapered
Seat
Saddle
Calibre Trail
Seatpost
KS RAGE-I 30.9mm dropper post, 125mm travel, southpaw remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Reach | 423.5 mm | 442 mm | 460 mm | 476 mm |
| Top Tube Length | 585 mm | 605 mm | 626 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 112 mm | 117 mm | 127 mm | 137 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
