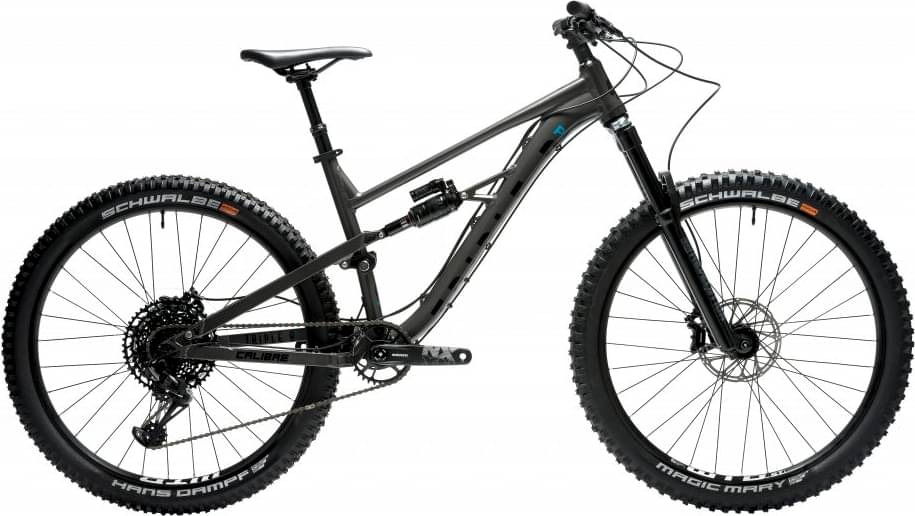

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RockShox Revelation RC -
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061 DISC150MM REAR TRAVEL
Suspension Fork
ROCKSHOX - FS-REVELATION RC-GLOSS BLACK BLADE/ FAST BLACK STANCHION
Rear Shock
ROCKSHOX - MONARCH PLUS DEBONAIR RC3 190X51
Drivetrain
Rear Derailleur
SRAM GX EAGLE - 12-SPEED, DIRECT ATTACHMENT
Cassette
EAGLE 11-50T 12 SPEED CS PG1210
Crank
SRAM NX EAGLE DUB 170 BLK 32T
Bottom Bracket
SRAM - BB DUB BSA MTB 73
Chain
KMC X12 - 114 LINKS
Pedals
FLAT PEDAL
Wheels
Front Hub
FORMULA DC 711 - ALLOY DISC 6 BOLTS, TA15,110, 32H
Rear Hub
FORMULA DCL-360 - ALLOY DISC 6 BOLTS, TA12, 142, 32H
Rims
WTB ST I29 TCS 2.0 27.5”
Tires
Front: SCHWALBE MAGIC MARY, 27.5” X 2.60”, BLACK-SKIN, ADDIX SOFT, Rear: SCHWALBE HANS DAMPF, 27.5” X 2.35” BLACK-SKIN, ADDIX SOFT
Brakes
Brakes
SRAM - DB GUIDE RE
Cockpit
Stem
CAST ALLOY, 28.6MM, EXT:45MM, RISE:3DEG, BAR BORE:31.8MM,
Handlebar
SPANK SPOON 25 785MM WIDE
Grips
SINGLE LOCK ON STYLE, SOFT GRIP
Headset
FSA - TH NO.57E ORBIT 1.5E ZS44/ZS56 1-1/8-1.5 TAPERED STEERER, 50MM-62MM OD H/T
Seat
Saddle
Calibre Trail
Seatpost
KS RAGE-I HYDRAULIC DROPPER POST, ALLOY, 30.9MM, 392MM, 150MM TRAVEL, SOUTHPAW P REMOTE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Reach | 423.5 mm | 452 mm | 460 mm | 476 mm |
| Top Tube Length | 585 mm | 605 mm | 626 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 112 mm | 117 mm | 127 mm | 137 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
